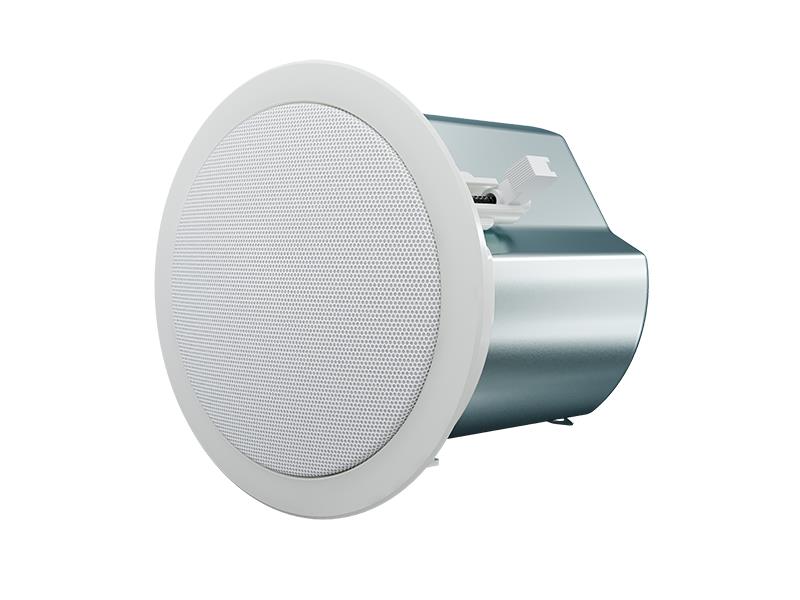

Up 4 is a discreet, two way 4” ceiling speaker delivering consistent coverage and full frequency sound to a wide range of cost conscious, commercial environments — from hotels and concourses to retail outlets, bars and restaurants
An integral fixing system is included to achieve a simple and clean installation. Up 4 has a steel backcan and perforated steel grille and is finished in neutral white
Up 4 features a 4” (105mm) low frequency driver paired with a 0.7” (20mm) silk dome tweeter. It is suitable for both high quality speech and music reproduction. A conical 120° coverage pattern ensures consistent sound where it needs to go
Each Up 4 can be run on a variety of 70 or 100 volt taps, or at low impedance. Tap selection is via a rotary switch behind the removable grille.
SmartAmps or Zone will provide optimal performance and loudspeaker protection. When coupled with the Zone series, a ZonePad and the WebApp makes setting up a system and end user control simple and intuitive
Features
4” coaxial driver
Discreet size
Unobtrusive design
8 ohm or 70/100V line operation
Range of power taps
Wide conical coverage pattern
Integrated mounting hardware
