• 8in/4out Mic/Line Mixer
• Alarm & Paging Inputs
• PL remote compatibility with additional analogue remote inputs
• Primary and Secondary Mic Modes: Perfect for controlling hierarchal microphone feeds such as simple paging announcements
• Emergency Mic Mode: For use with 3rd party systems in emergency situations. Mutes all inputs except MIC 1 on alarm contact closure
• Juke Box Mode: Provides a priority line input to the system for pre recorded announcements or programme material such as Sports channels

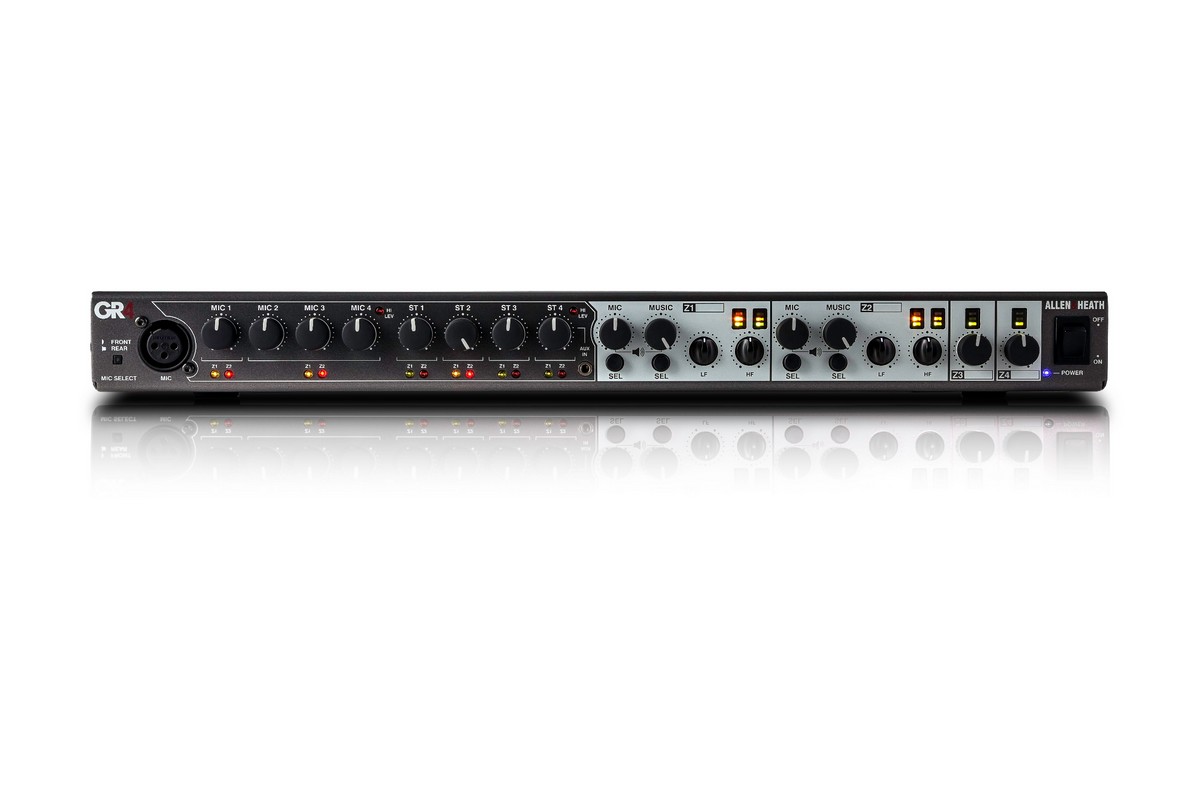

GR4 is a 1U rack mounting or desktop audio mixer, providing simple yet comprehensive control of background music and paging in bars, restaurants, stores and other leisure / retail environments. Standout features include optional remote wallplates, a mic input on the front panel, plus a 3.5mm jack on the front for portable music sources
The GR4 is a 4 zone mixer in a 1U chassis. Dip switches allow for simple setup – no PC needed. GR4 can be remote controlled thru the PL-14 remote controller or any Logic remote. GR4 offers 4 stereo inputs and 4 mic inputs with analogue EQ on industry standard Phoenix connectors, plus 4 zone outputs
GR4 can control 2 stereo zones and 2 additional mono zones (4 zones total). Other features include primary and secondary mic modes, EVAC mode for alarm situations, and jukebox mode (setting a priority line input to override background music)
Key Features
• 2 Stereo zones, 2 mono zones
• Ducker
• Jukebox mode
• Remote control thru PL-14
Benefits
• Emergency mic mode
• EVAC input
• Crossfading
