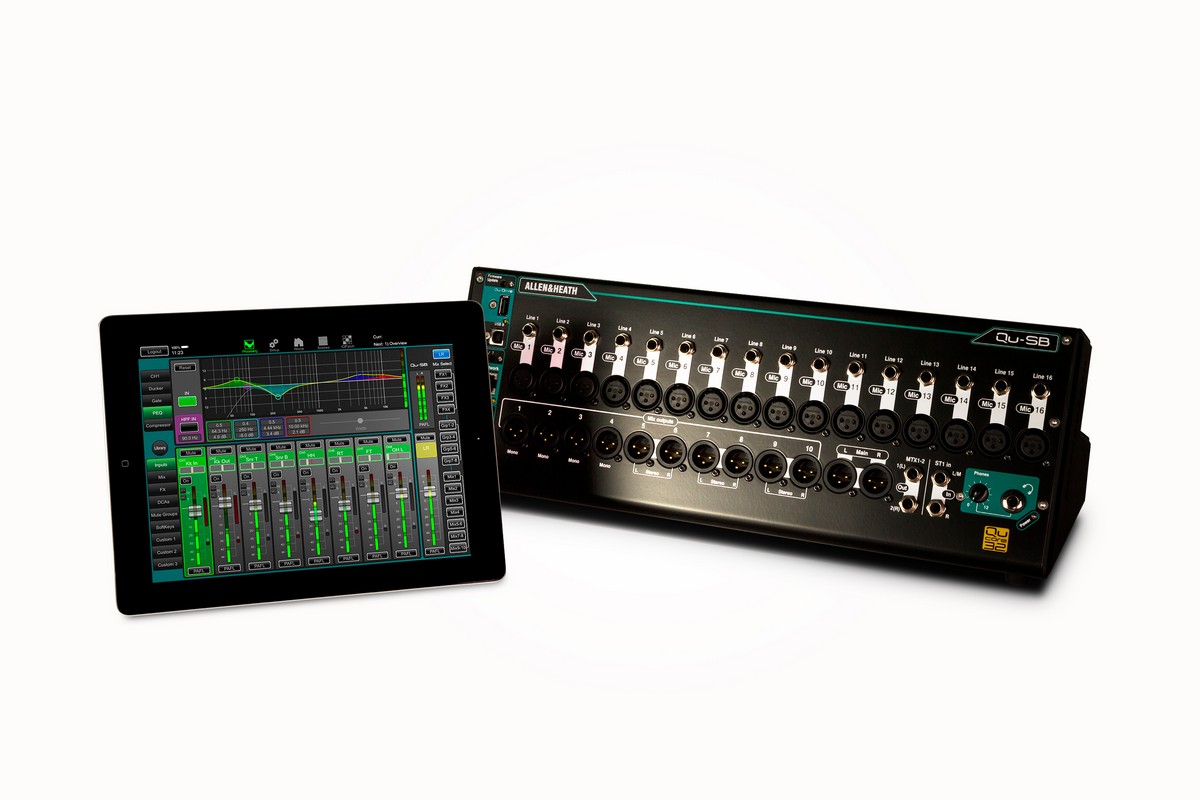

Qu-SB is an ultra-compact digital mixer and interface designed for iPad control, freeing you to mix from anywhere in the venue and providing a smart, portable solution for bands, AV and installation. The companion Qu-Pad app is a beautifully elegant, intuitive mixing interface, giving easy access to the full wealth of Qu features and setup options.
On top of its 18 onboard inputs and 14 outputs, Qu-SB can be expanded up to 32 mono inputs and 24 outputs by connecting to one of our family of remote AudioRacks over a single Cat5 cable. Couple this with the Qu-You personal monitoring app for Android and iOS, plus the ME-1 personal mixers, and Qu-SB is a fantastic choice for bands looking for the same great monitor sound wherever they play.
FEATURES
16 Mono Inputs (TRS + XLR)
1 Stereo Input (TRS)
12 on-board Mix Outputs (LR, Mono Mix 1-4, Stereo Mix 1-3)
1 Stereo Matrix Out (TRS)
Qu-32 Core inside (32 Mono + 3 Stereo Input Channels)
Up to 11 Monitor Mixes (4 mono + 7 stereo)
4 FX Engines
4 FX Sends / Returns
4 Mute Groups
4 DCA Groups
32×32 USB Audio Interface
Qu-Drive direct Multitrack Recording / Playback on USB drives
Recallable AnaLOGIQTM Preamps
iLive FX Library
dSNAKE Remote Audio Port expansion up to 38 inputs
Automatic Mic Mixer
19” Rack Mountable with optional rack ears
Compatible with ME Personal Mixing System
Qu-Pad iPad App
Qu-You iPhone / Android personal monitoring app
Trim, polarity, HPF, gate, insert / ducker, 4-band PEQ, compressor and delay on all Inputs
Insert, 1/3 octave GEQ, 4-band PEQ, compressor and delay on all Mix outputs
Built in Signal Generator
RTA with Peak Band indication
Spectrogram to aid with feedback elimination and taming room acoustics
Qu-SB - Without box
Width - 435.5mm
Depth - 174.5mm
Height - 161.8mm
Weight - 4.5kg
Qu-SB - With box
Width - 550mm
Depth - 270mm
Height - 270mm
Weight - 5.75kg
