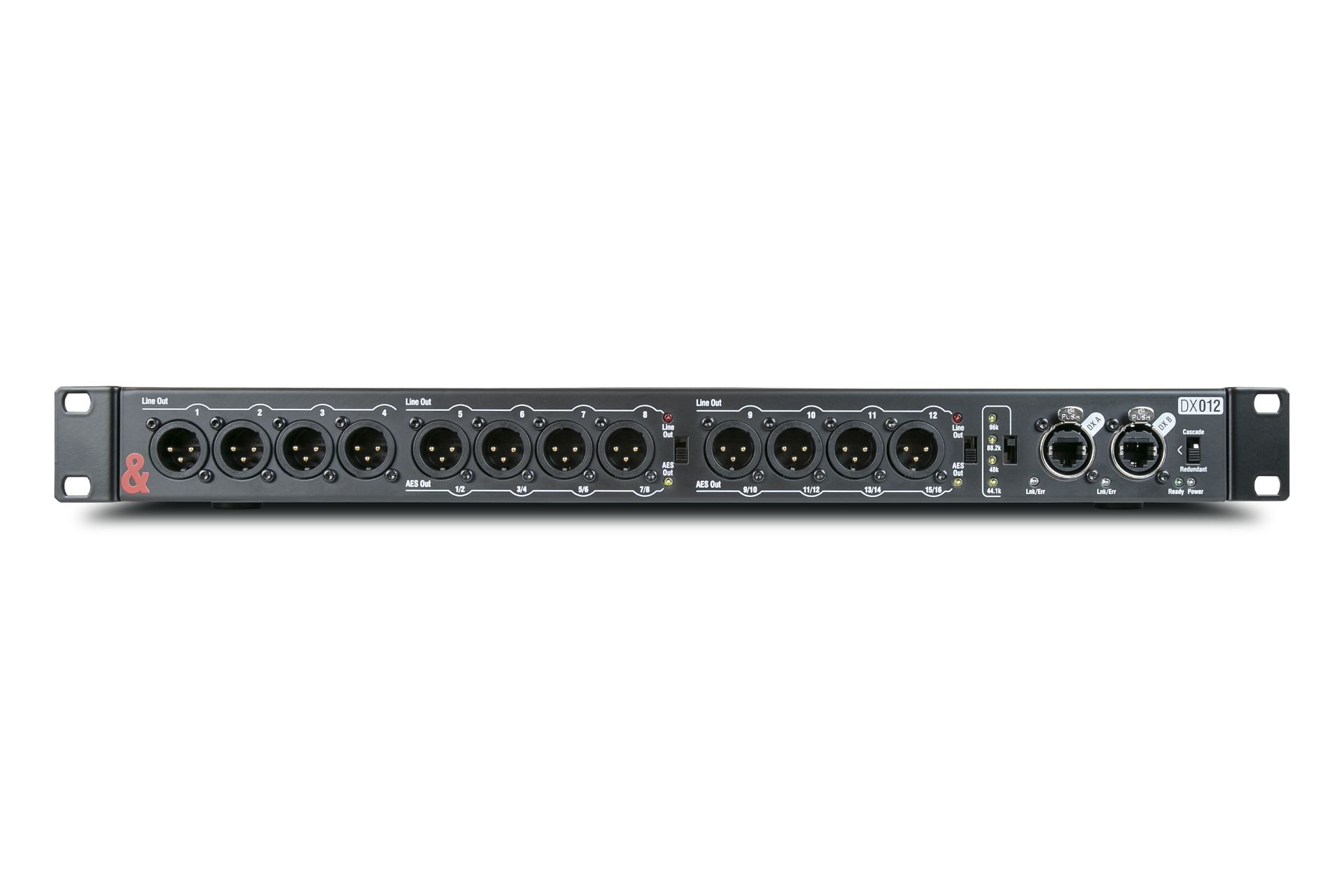

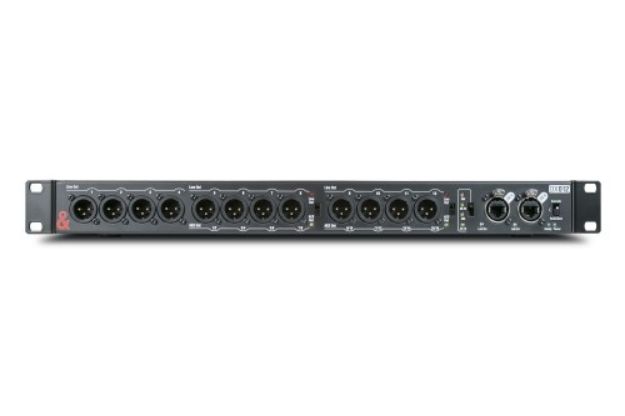

The DX012 connects via a single Cat5e cable to the dLive Surface, dLive MixRack, SQ mixer or upstream DX expander via a secure EtherCon port
A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy chaining to a downstream DX expander for additional remote I/O
Compatible with SQ and dLive systems
12 XLR Outputs:
1-4 Analogue Line Out
5-8 Analogue Line out or AES Digital out (switchable)
9-12 Analogue Line out or AES Digital out (switchable)
AES outputs globally switchable between:
44.1kHz
48kHz
88.2kHz
96kHz
Cascade mode allows daisy chaining of 2 DX16/DX12 Expanders for additional I/O
Redundant DX connection to compatible hardware
Multiple DX012 can be added to a system:
Up to 16 DX012 units can be added to a SQ system
Up to 46 DX012 units can be added to a dLive S Class system
Up to 22 DX012 units can be added to a dLive C Class system
Rack mounted (1u) or shelf/floor operation
Plug and Play – no IP addressing required
Compatible with CAT5e (or higher) cables of up to 100m
Locking EtherCon ports
