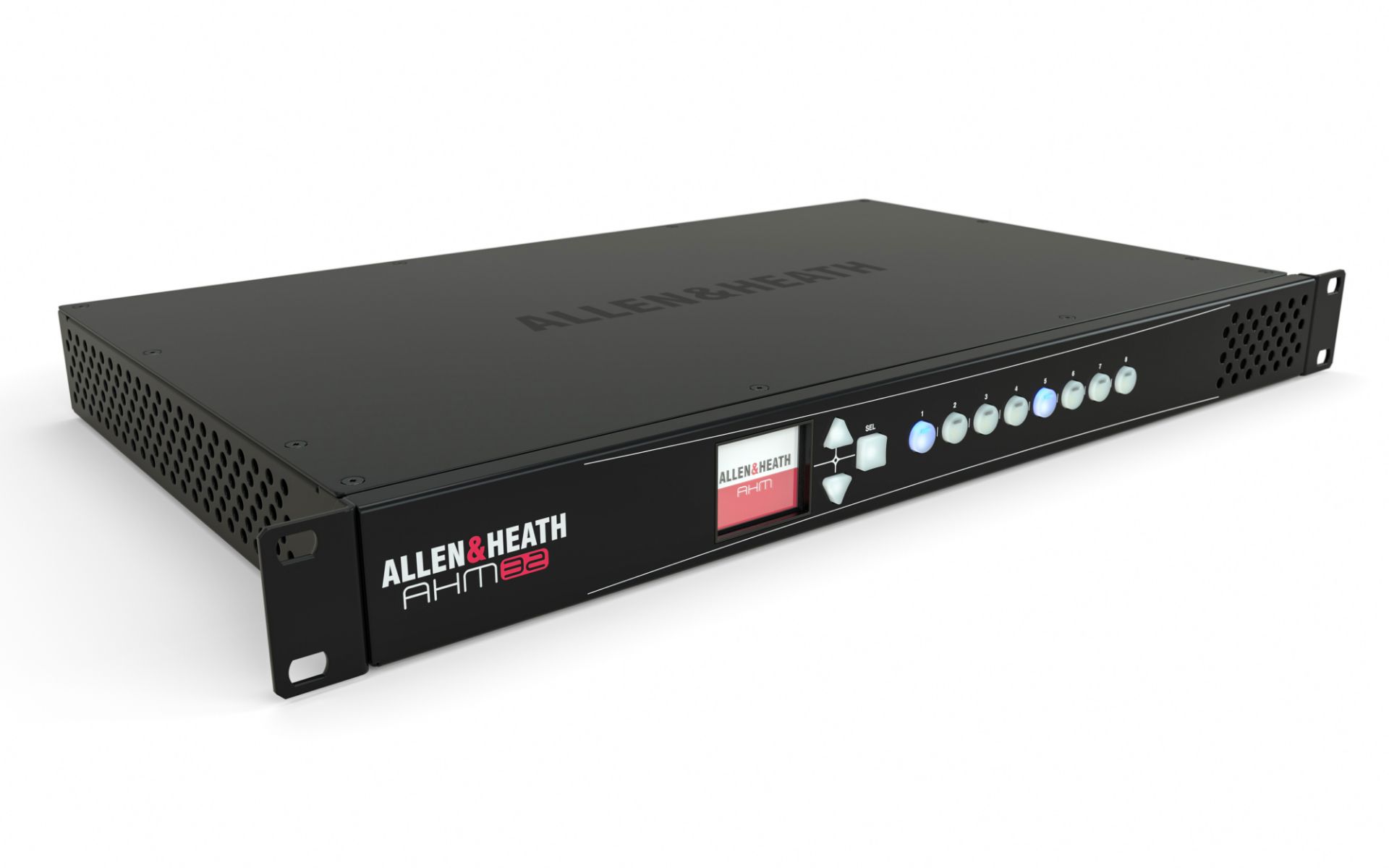

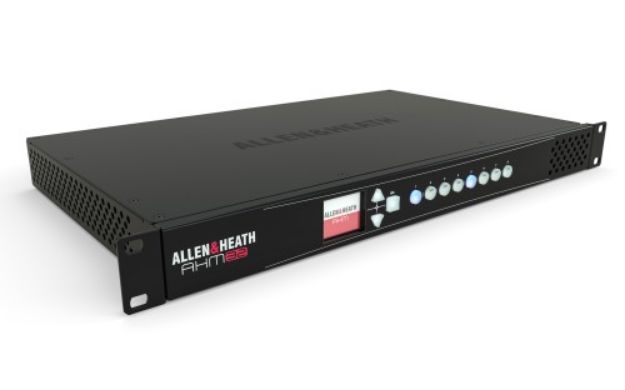

AHM32 is an audio matrix processor for sound management and installation. It is designed for audio distribution, paging, conferencing and speaker processing in a multitude of environments including corporate, hospitality, education, event and multi purpose venues, retail, theatres, cruise ships and sports venues. The AHM32 processor is complemented by an extended ecosystem of remote audio expanders, remote controllers, interfaces, apps and software. A family of portable, rack mountable or wallmount audio expanders is available with a choice of proprietary point to point Layer-2 or Dante transport protocols. A range of IP remote controllers is available for volume control, music source selection, preset recall and more. AHM can also integrate with third party devices over GPIO, TCP/IP, or industry standard control systems. The Custom Control editor and app from Allen & Heath offer more control options and tailored user interfaces for multiple users and device types, with kiosk and BYOD capability.
Features
• 32 x 32 processing matrix
• 12 x 12 local analogue I/O
• I/O Port for expansion or audio networking, up to 128 x 128
• Dante 96kHz optional cards (AES67 and DDM ready)
• 32 configurable processing outputs – up to 32 mono / 16 stereo zones
• Sound management tools
o 4 x Automatic Mic Mixer
o AEC (Acoustic Echo Cancellation)*
o ANC (Ambient Noise Compensation)
o Priority ducking
o 8 band PEQ, dynamics and delay on every input and zone
o Speaker processing with x-over filter, delay, limiter and PEQ
*with optional module
• 96kHz FPGA core with ultra low latency
• Compatible with Allen & Heath IP1, IP6, IP8 remote controllers
• 2 x 2 local GPIO plus networkable GPIO interface
• Front panel screen and 8 x programmable SoftKeys
• 16 user profiles
• Event scheduler
• Internal stereo playback
