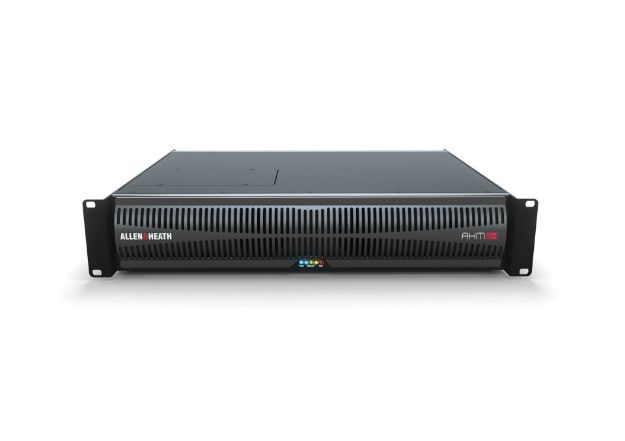

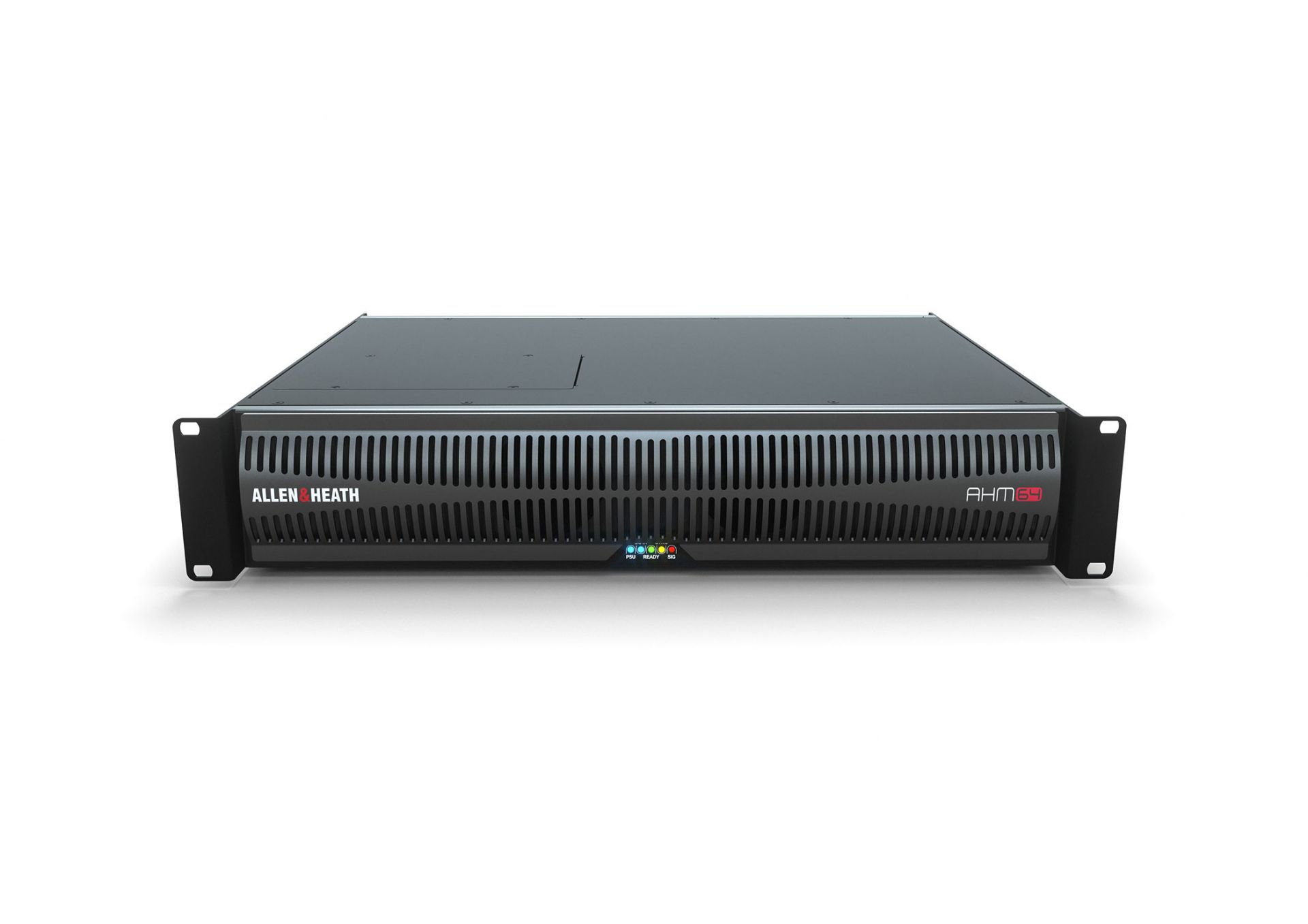

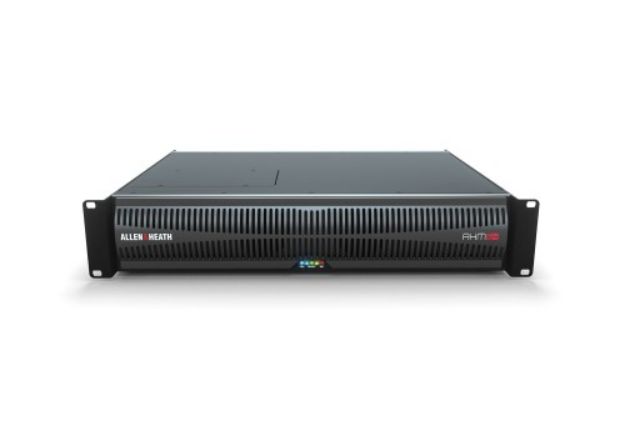

AHM64 is an audio matrix processor for sound management and installation. It is designed for audio distribution, paging, conferencing and speaker processing in a multitude of environments including corporate, hospitality, education, event and multi purpose venues, retail, theatres, cruise ships and sports venues. The AHM64 processor is complemented by an extended ecosystem of remote audio expanders, remote controllers, interfaces, apps and software. A family of portable, rack mountable or wall mount audio expanders is available with a choice of proprietary point to point Layer-2 or Dante transport protocols.
Features
• 64 x 64 processing matrix
• 12 x 12 local analogue I/O
• I/O Port for audio networking, up to 128 x 128
• Dante 96kHz 64 x 64 optional card (AES67 and DDM ready)
• 128 x 128 built in SLink port for audio expansion
• 64 configurable processing outputs – mono / stereo zones or speaker processing
• 96kHz FPGA core with ultra low latency
• Compatible with IP1, IP6, IP8 remote controllers
• 2 x 2 local GPIO plus networkable GPIO interface
• TCP/IP protocol for third party integration
• Crestron, AMX and Extron drivers
• DC backup power supply
• Mac / Windows System Manager software
• Custom Control app and editor for BYOD
• 32 user profiles
• Integrated stereo playback
• Event scheduler
Sound management tools
8 x Automatic Mic Mixers
ANC (Ambient Noise Compensation)
Priority ducking
8 band PEQ, dynamics and delay on every input and zone
Speaker processing with Xover filter, delay, limiter and PEQ
Processing expansion module
