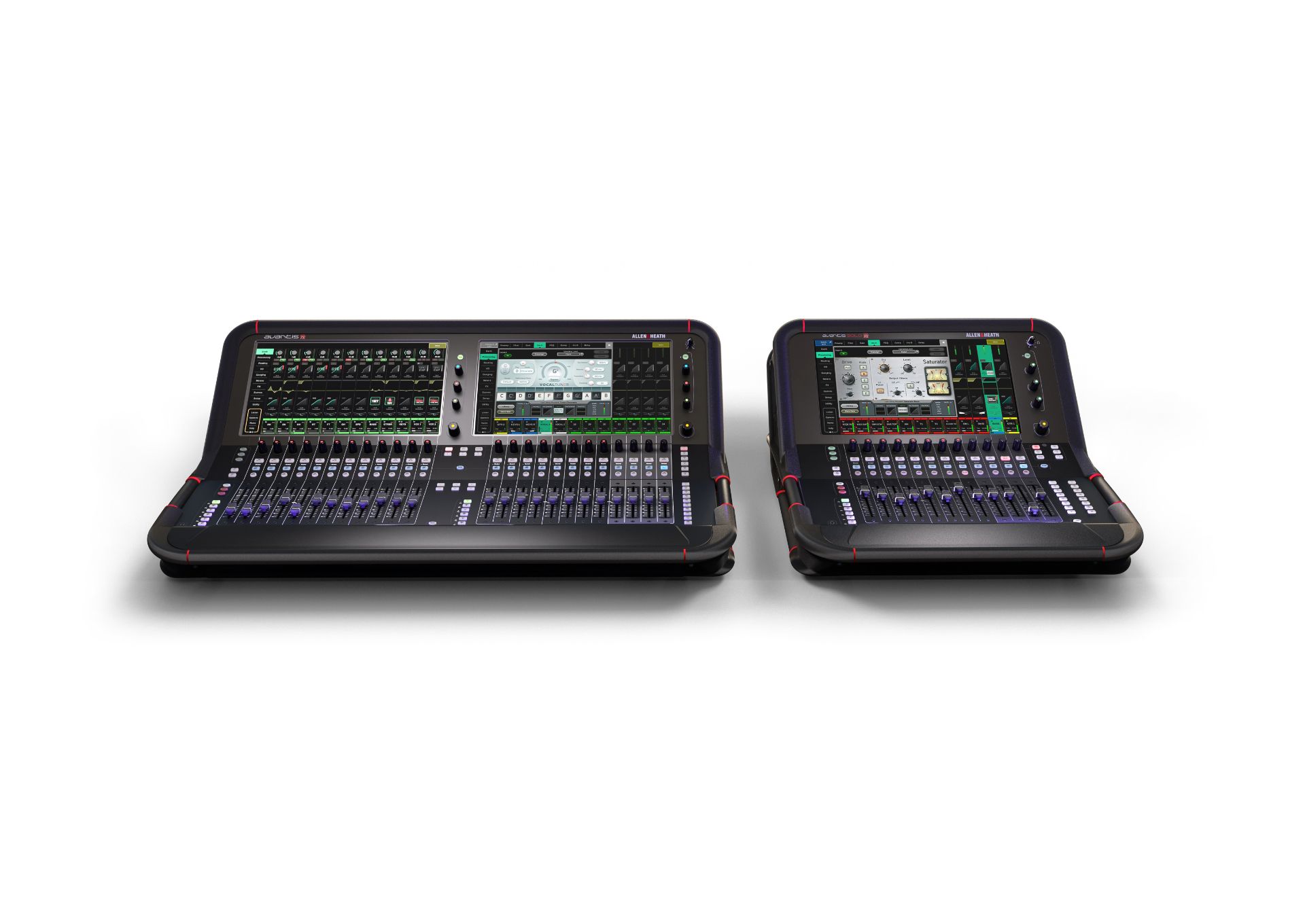

The Avantis Ultra digital mixer provides 96 mono input processing channels, 12 stereo FX returns, 8 stereo RackUltra FX sends and returns, and 56 flexible mix buses. WIth our 96kHz XCVI FPGA engine, Avantis Ultra puts all our next generation technology in a stand alone 96 channel / 56 configurable bus console, with dual Full HD touchscreens, a super flexible workflow with Continuity UI, extensive I/O options, included DEEP processing and RackUltra FX from our flagship dLive mixing systems, and a rugged full metal chassis. Fully compatible with all the dLive I/O cards, the full ‘Everything I/O’ range and IP controllers
Key Features
• 96 x 56 XCVI Core
• Rugged all metal chassis
• Fully assignable layout
• 144 fader strips
• Full ‘Everything I/O’ range compatible
• dPack software included
• RackUltra FX module included
Benefits
• Two 128 x 128 options slots
• Compatible with IP controllers
• 64 channels of AMM
• Mixpad and 4You apps available for mobile devices
• Avantis Director software available for Windows/Mac Control
• 144 fader strips (24 faders, 6 layers) with optional dedicated master section
• 15.6” Full HD capacitive touchscreen(s) with gesture control
• 16 DCAs
• Continuity UI seamlessly connects physical and touchscreen controls for the fastest, most intuitive workflows
• Fully assignable layout
• User configurable rotary controls
• 24 assignable SoftKeys
I/O
• SLink port for connection to Remote I/O Expanders and the ME Personal Mixing System
• 12 analogue XLR Inputs / 12 analogue XLR Outputs
• 1 Stereo AES In / 2 Stereo AES Out
• 2 I/O Ports, both capable of 128×128 operation at 96kHz – for optional cards inc. Dante, MADI and gigaACE
• BNC Word Clock
• USB stereo playback
• Internal storage for stereo playback and recording
Optional dPack Upgrade:
• 96 Channels
• 56 Bus
• 24 Dyn8
• RackUltra FX Suite (requires RackUltra FX Card)
• DEEP Compressors
Optional RackUltra FX Card
• 8 RackUltra FX Slots
• PEQ and Dynamics on Input and Output of Each Slot
• 8 Stereo Sends and Returns • 144 fader strips (24 faders, 6 layers) with optional dedicated master section
• SLink port for connection to Remote I/O Expanders and the ME Personal Mixing System
• 12 analogue XLR Inputs / 12 analogue XLR Outputs
• 1 Stereo AES In / 2 Stereo AES Out
• 2 I/O Ports, both capable of 128x128 operation at 96kHz – for optional cards inc. Dante, MADI and gigaACE
• User configurable rotary controls
• 24 assignable SoftKeys
• Comprehensive metering with multipoint peak detection
• USB stereo recording and playback
• BNC Word Clock
96kHz XCVI Core
Avantis is the third console to be powered by the 96kHz XCVI core – pioneered by Allen & Heath using next generation FPGA technology, with parallel virtual processing cores delivering 64 full processing inputs and a configurable 42 bus architecture with phase coherency on all mix outputs. XCVI employs variable bit depth for ultimate precision and noise performance, a 96bit mix bus, and offers ultra low latency at just 0.7ms.
XCVI also enables DEEP processing, embedding class leading processing emulations directly within the input and mix channels.
Easy expansion with Everything I/O
Whether you’re an owner/operator looking to build a compact system, or a rental company with existing Allen & Heath stock, the SLink connection on Avantis allows true flexibility by connecting to the entire range of Allen & Heath audio expander hardware.
There’s also compatibility with our ME Personal Mixer range and our IP hardware remote controllers.
Continuity UI - Touch the big picture
With a massive 206 square inches of screen space operating at a crisp 1080p Full HD resolution, Continuity UI allows you to see and instantly interact with more of what matters, enabling a seamless connection between the physical controls and the displays. The faders react on touch to immediately highlight the active channels for instant visual feedback. The channel rotaries let you work gains or pans, then at the touch of a button, dynamically fold the display to show EQ or compressor parameters across the whole bank. Each screen also features a FastGrab tab on the right hand side, giving you split second access to key freely assignable parameters like aux sends, EQ, compressor and FX on the currently selected or specific channel. The whole system is set up to dynamically surface the information you need at any moment and put control right at your fingertips.
Get dLive Processing with dPack
Right out of the box, Avantis is loaded with powerful processing tools that will easily meet the demands of most users and applications. Want more options? Upgrade your console to Avantis dPack, and you’ll get additional processing from Allen & Heath’s flagship dLive system, including Dyn8 (up to 16 instances), DEEP Compressors, and the Dual Stage Valve preamp. Best of all, all future dPack updates will be automatically included, forever and free of charge.
Full metal chassis
Every part of Avantis is designed in pursuit of performance. Encased in a super strong, full metal tubular exo skeleton, Avantis is lightweight and easy to lift but incredibly robust.
Dante, Waves and more…
Two additional I/O Ports allow Avantis to benefit from the full range of current dLive option cards, including Dante (64x64 and 128x128), Waves, gigaACE, MADI and more, expanding the scope for system integration, FoH / monitor splits and multitrack recording.
For local I/O, Avantis is well equipped with 12 XLR analogue inputs, 12 XLR analogue outputs, plus AES (Stereo In, 2x Stereo Out).
12 RackExtra FX Engines
Allen & Heath has a well earned reputation for crafting FX emulations that rival the very best third party plug ins, but with none of the associated hassle. Avantis is armed with 12 stereo FX engines and features the acclaimed RackExtra library of emulations of legendary classic reverbs, gated reverbs, delays, modulators and more. All FX have dedicated stereo returns so you don’t need to waste input channels.
