Dante I/O Expander

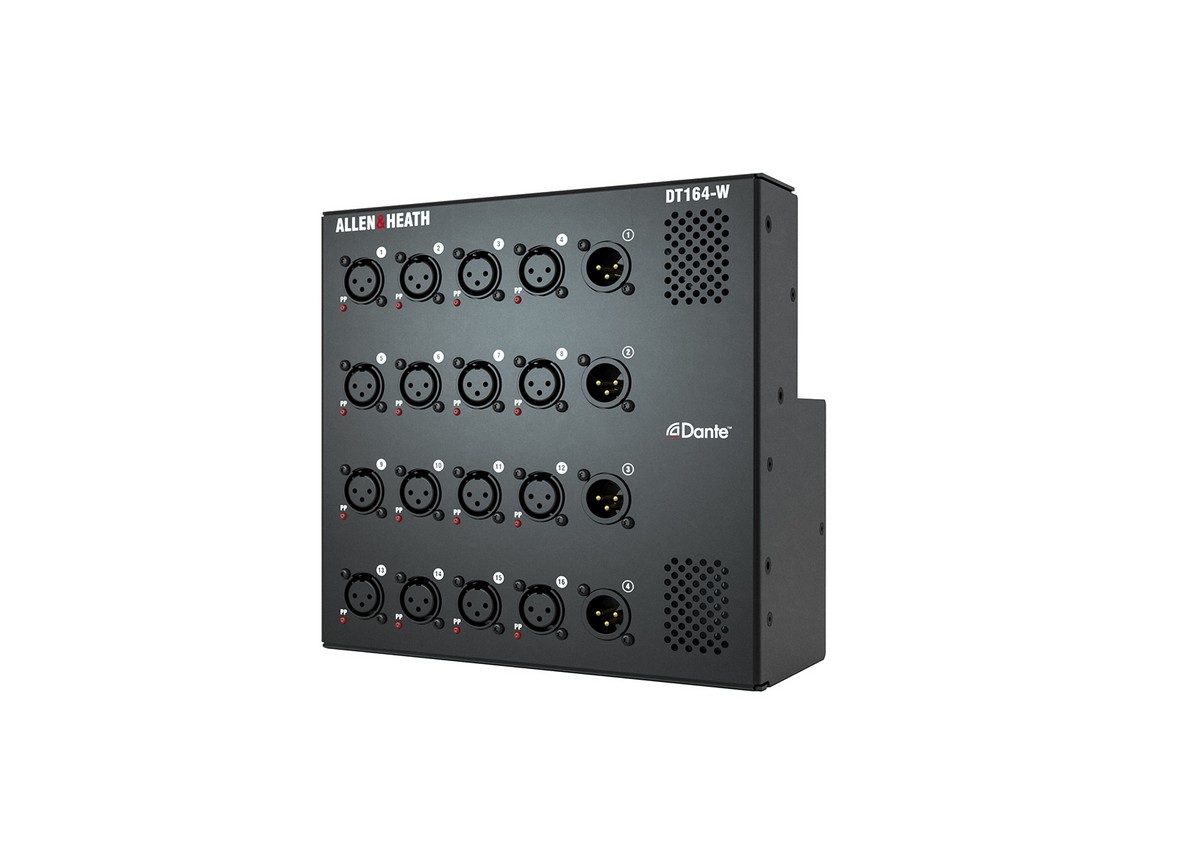

The DT164-W provides 16 microphone preamps and 4 line outputs in a versatile wall-mount design for permanent installation. The reversible mounting frame allows for in wall or on wall mounting. Additionally, the unit can be fitted in a standard 12×12” NEMA box or equivalent, or mounted in a floor pocket for stage use. The IEC mains power inlet can be replaced with a gland module and screw terminals for fixed installation, and a DC 12V backup supply is also provided.
DT164-W offers the acclaimed Allen & Heath preamps, complete with 96kHz converters for best in class sound quality over Dante, plus Primary and Secondary ports for daisy chain or redundancy through secure EtherCon connectors.
Features
Dante audio expander, 96kHz / 48kHz
Wall mount or dip trap installation
16 mic preamps on XLR with Phantom Power status LEDs
4 XLR Line Outs
Primary and Secondary Dante ports with locking EtherCon
Redundant or Switched mode
Direct preamp control from dLive and SQ
3 power supply options: 100-230V AC powered on IEC or screw terminal blocks, as well as 12V DC power
DC power can be used as redundant power supply
Fits in a standard 12”x12” NEMA box
Compatible with ACE Backstage 174SLBK stage pocket system
AES67 compatible
Dante Domain Manager ready
