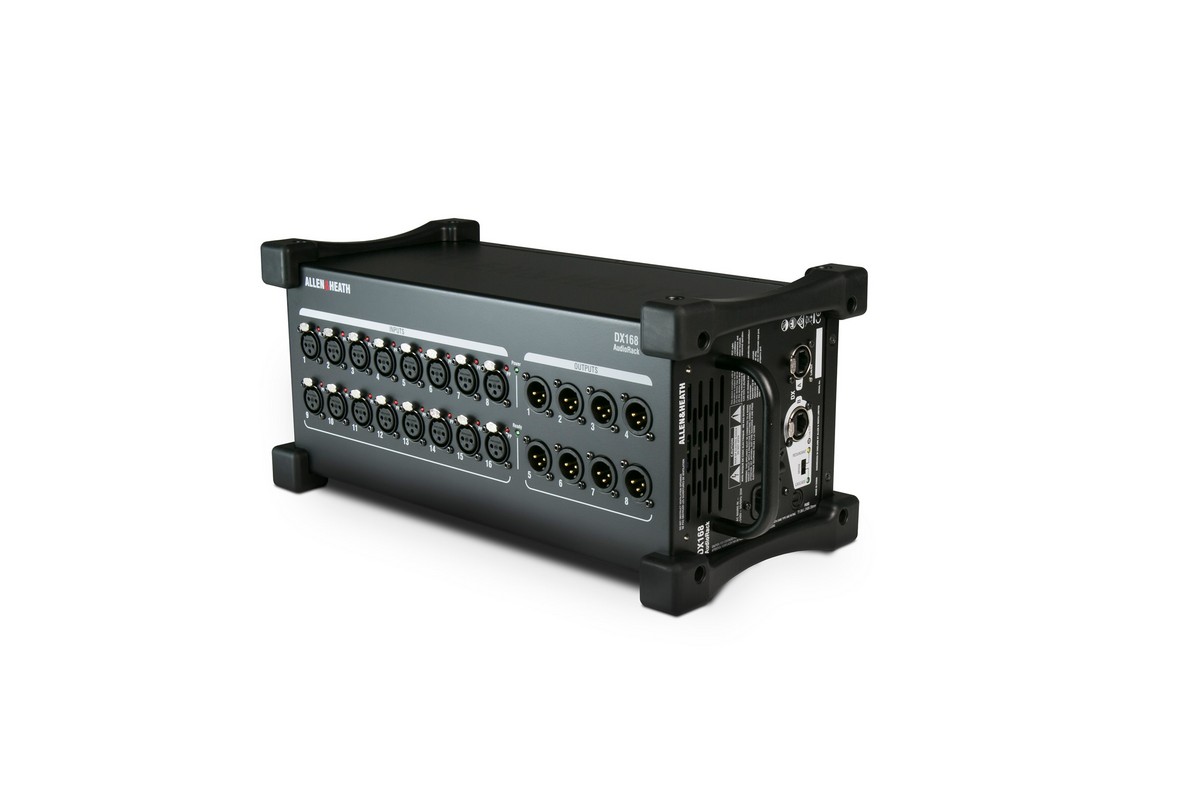

The DX168 is a rugged, portable expander for adding remote I/O to a dLive S Class , dLive C Class system or SQ .
Each DX168 features 16 mic preamps with independent Phantom Power LED indicators, plus 8 XLR line outs. Up to 6 DX168 units can be connected to a dLive/ SQ system – 4 via the MixRack and 2 via the Surface – allowing up to 96 remote inputs and 48 remote outputs in addition to those provided by the MixRack and Surface.
The DX168 connects via a single Cat5e cable to the dLive Surface, MixRack or upstream DX168 via a secure EtherCon port. A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy chaining to a downstream DX168 for additional remote I/O.
Features:
16 Mic Preamps on XLR with Phantom Power status LEDs
8 XLR Line Outs
Compatible with dLive S Class and dLive C Class hardware
Up to 6 DX168 units can be added to a dLive system for 96 inputs / 48 outputs
Cascade mode allows daisy-chaining of 2 DX168 Expanders for additional I/O (requires firmware 1.60 or higher)
Redundant DX connection to dLive S Class hardware
Optional 19-inch rack mount kit available 4U
Plug and Play – no IP addressing required
Compatible with CAT5e (or higher) cables of up to 100m
Rubber bumpers
Carry handle
