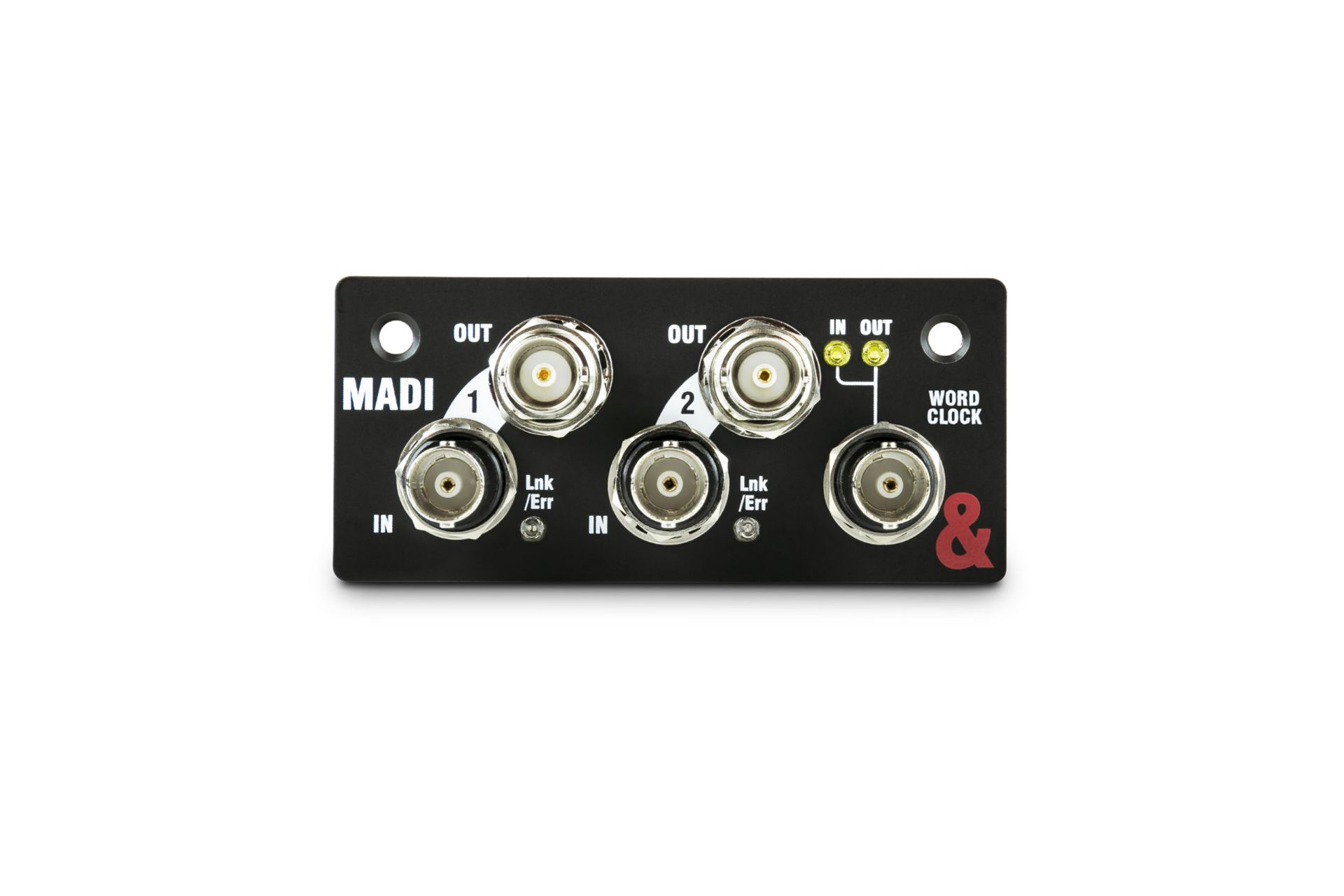

A&H MADI networking card for SQ

SQ MADI provides any SQ mixer with a 64×64 MADI interface running at either 48kHz or 96kHz. Two BNC inputs pair with two BNC outputs to allow for split or redundant setups while a dual function (in/out) BNC Wordclock connection enables the console to be either master or slave in the system

SQ MADI enables connection and synchronisation with broadcast or recording systems, OB vans, and third party consoles for high channel count feeds over coaxial cables

64×64 channel digital audio
96kHz or 48kHz operation
Smux or HighSpeed 96kHz modes
Sync from inputs or separate wordclock
Console controlled error handling
4x BNC connectors (2 links)
1x BNC Wordclock I/O
