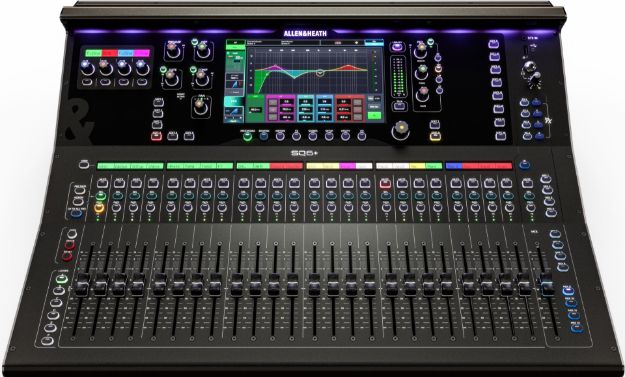

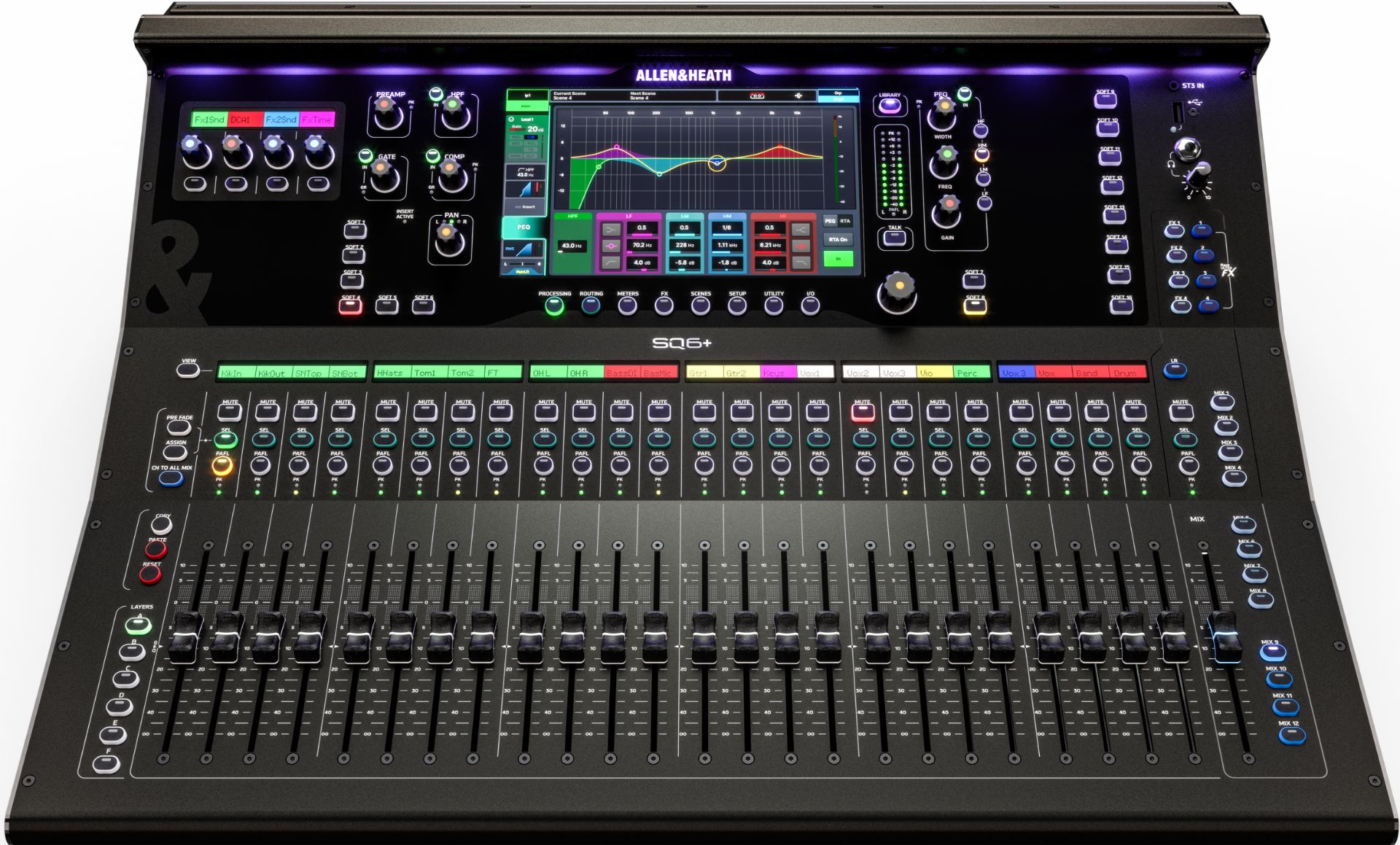

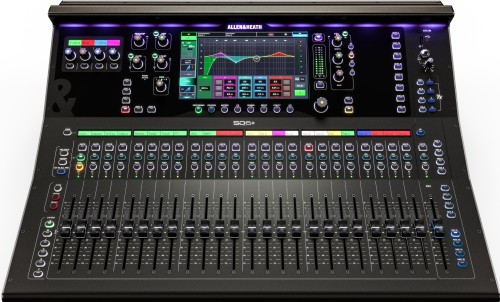

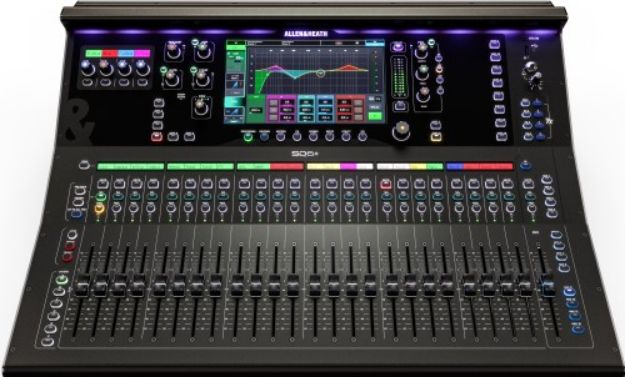

With a 48 input channel 96kHz XCVI core for ultra low latency and phase coherent mixing, alongside incredible connectivity options - the SQ range continues to be class leading and the go to solution for owner operators, mid sized venues, small tours and anywhere audio quality and interoperability are vital. The SQ6+ upgrades the SQ-6 with more processing power, a larger 9” touchscreen with reimagined GUI and a clean ‘carbon on graphite’ update to the surface artwork and controls. All SQ+ models also include 4x RackUltra FX engines with dedicated send and return channels and the ability to run the latest DEEP channel processing
• 96kHz XCVI Core • 48x Input Processing Channels
• Stereo Main LR
• 12x Mono/Stereo, Group/Aux Mixes
• 4x FX Sends
• 4x RackUltra FX Sends
• 6x Mono/Linkable Matrix
• 24x XLR Mic/Line Input Sockets
• 3x Stereo Line Input Sockets (2x TRS, 1x 3.5mm Stereo Jack)
• 1x XLR Talkback Socket
• 14x XLR Output Sockets
• 2x TRS Output Sockets
• 1x AES3 Stereo Digital Output Socket
• 128x128 Intelligent SLink Port for Everything I/O expansion and system connections
• Stereo Headphone Output
• 8x FX Engines with dedicated Stereo Return Channels
• 4x RackUltra FX Engines with dedicated Stereo Return Channels
• 9” Capacitive Touchscreen
• 25x 100mm Motorised Faders
• 6x Customisable Channel Strip Layers
• 16x Soft Keys
• 4x Soft Rotaries
• USB-A stereo/multichannel audio record/playback and data transfer
• USB-B Audio interface for multichannel record/playback (32x32)
• Configurable dual Footswitch Connection
• Configurable Chromatic Channel Meter LED’s
• IEC Mains Connection with Worldwide PSU
• RJ45 Network Socket
• Remote network control via free apps adding system latency or setup hassles
The Ultimate IEM Mixer
With no less than 12 stereo mixes and super low latency, and both parametric and graphic EQ on every mix, SQ is the perfect companion for in ear monitoring setups. SQ’s airline friendly compactness and rugged build quality mean there’s no reason to gamble on house monitor consoles again
Expandable up to 48 mics
SQ-6 has all the onboard I/O you need for standalone operation. Thanks to its SLink intelligent port, SQ can also be expanded up to a total of 48 mic inputs via a family of 96kHz and 48kHz rack and stage box expanders (e.g. AB168, AR2412, AR84 GX4816 and DX168), making it a flexible, mix ‘n’ match solution for owners of other Allen & Heath digital systems. You can also link your SQ directly to another SQ or even a dLive system
Dante, Waves and more
SQ is the centrepiece of a growing ecosystem of apps, expanders, audio networking, personal mixers and more, allowing you to connect, adapt and expand to your heart’s content. It’s compatible with leading audio networking standards too. Add an audio networking card such as Dante or Waves to SQ’s I/O port and you’re ready to integrate with installed systems, provide a digital FoH / Monitor split and more
Flexible multitrack recording
The integrated SQ-Drive makes it quick and easy to capture a 96kHz multitrack or stereo recording of the show direct to a USB key or drive. No software setup, no soundcard driver issues and no extra laptop to bring to the performance. SQ-Drive is also a smart way to manage walk in music.
Also provided is a built in 32x32 96kHz audio interface for multitrack recording, backing tracks or virtual soundcheck applications. The interface is Core Audio and ASIO compliant and comes complete with MIDI and DAW control capabilities.
Advanced AMM
SQ’s advanced automatic mic mixer (AMM) features make it ideally suited to mixing conferences, panel talks and TV shows. It’s fully integrated in the mixer too, with no extra latency, so you don’t need to route the audio to an internal DSP rack or an external plugin system.
Designed for the pro
We know that the live environment can be tough on gear that’s why we devised our most punishing regime of testing and retesting yet for SQ. From its 3 tier, all metal chassis to its extruded aluminium light bar, SQ has tremendous strength and rigidity underlying its good looks
The Mixing Experience
With each new design, the Allen & Heath team strives to get closer to the ultimate mixing experience. SQ’s dashboard is centred around a high res 7” capacitive touchscreen, framed by an array of high grip, illuminating encoders to create an intuitive, integrated blend of clear visual feedback and immediate, hands on control. Channels and mixes can be dragged and dropped to any strip, with custom naming and colour coding on the colour strip displays, allowing you to build a mixing environment that mirrors your own workflow. Each strip features our patented Chromatic channel metering system, giving you at a glance level indication thanks to LEDs with variable brightness and colour. SQ6 also offers 16 Softkeys and 4 Soft Rotaries with displays that can be assigned to the functions you want at your fingertips, and a ‘channel to all’ mix button to instantly access all sends from the selected channel
RackExtra FX
Allen & Heath has a well earned reputation for crafting FX emulations that rival the very best plug-ins, but with none of the associated hassle. SQ is armed with 8 stereo FX engines and features the acclaimed RackExtra library of emulations of legendary classic reverbs, gated reverbs, delays, modulators and more. All FX have dedicated stereo returns so you don’t need to waste input channels
ME Personal Mixing System
SQ is fully compatible with the ME Personal Mixing System, allowing the performers to take control of their own monitor mixes. Any number of ME-1 and ME-500 personal mixers can be daisy-chained from the mixer’s SLink port, or from a connected remote expander
Unpacked weight 13.3kg 638x 514.9 x 198mm
