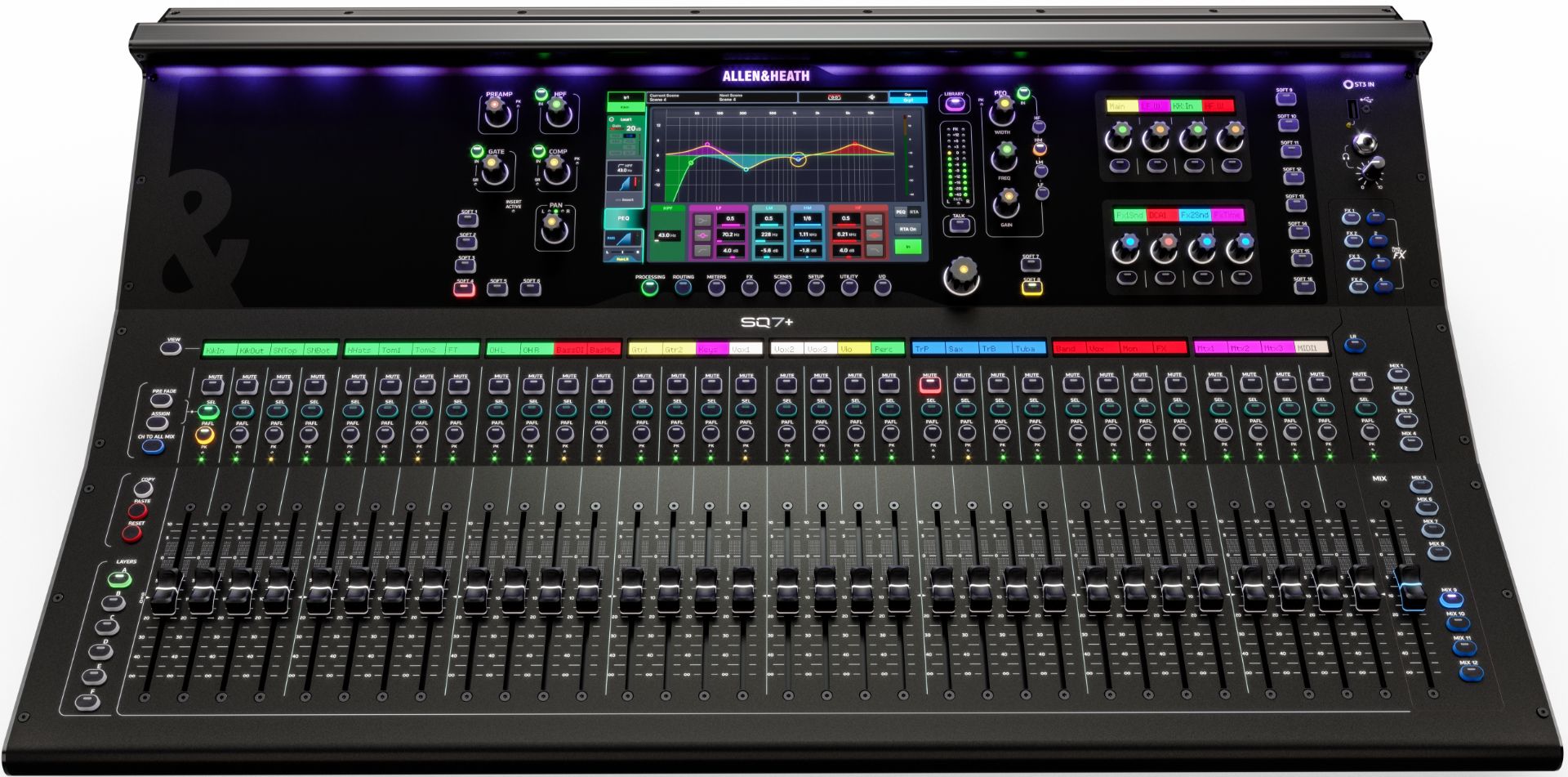

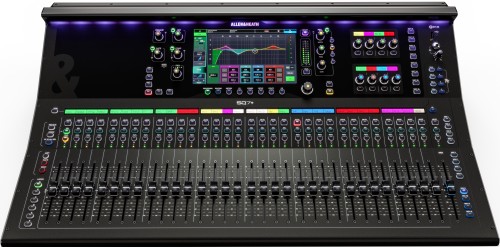

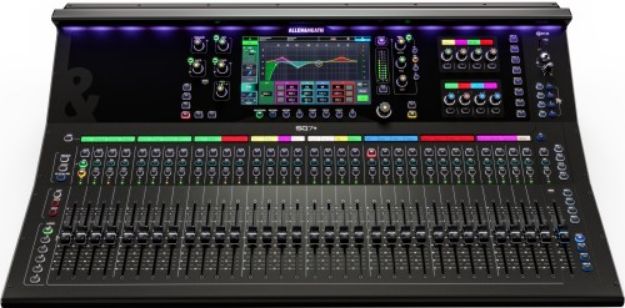

With a 48 input channel 96kHz XCVI core for ultra low latency and phase coherent mixing, alongside incredible connectivity options - the SQ range continues to be class leading and the go to solution for owner operators, mid sized venues, small tours and anywhere audio quality and interoperability are vital. The SQ7+ upgrades the SQ7 with more processing power, a larger 9” touchscreen with reimagined GUI and a clean ‘carbon on graphite’ update to the surface artwork and controls. All SQ+ models also include 4 x RackUltra FX engines with dedicated send and return channels and the ability to run the latest DEEP channel processing
• 96kHz XCVI Core
• 48x Input Processing Channels
• Stereo Main LR
• 12x Mono/Stereo, Group/Aux Mixes
• 4x FX Sends
• 4x RackUltra FX Sends
• 6x Mono/Linkable Matrix
• 32x XLR Mic/Line Input Sockets
• 3x Stereo Line Input Sockets (2x TRS, 1x 3.5mm Stereo Jack)
• 1x XLR Talkback Socket
• 16x XLR Output Sockets
• 2x TRS Output Sockets
• 1x AES3 Stereo Digital Output Socket
• 128x128 Intelligent SLink Port for Everything I/O expansion and system connections
• Stereo Headphone Output
• 8x FX Engines with dedicated Stereo Return Channels
• 4x RackUltra FX Engines with dedicated Stereo Return Channels
• 9” Capacitive Touchscreen
• 33x 100mm Motorised Faders
• 6x Customisable Channel Strip Layers
• 16x Soft Keys
• 8x Soft Rotaries
• USB-A stereo/multichannel audio record/playback and data transfer
• USB-B Audio interface for multichannel record/playback (32x32)
• Configurable dual Footswitch Connection
• Configurable Chromatic Channel Meter LED’s
• IEC Mains Connection with Worldwide PSU
• RJ45 Network Socket
• Remote network control via free apps
