DETAILS

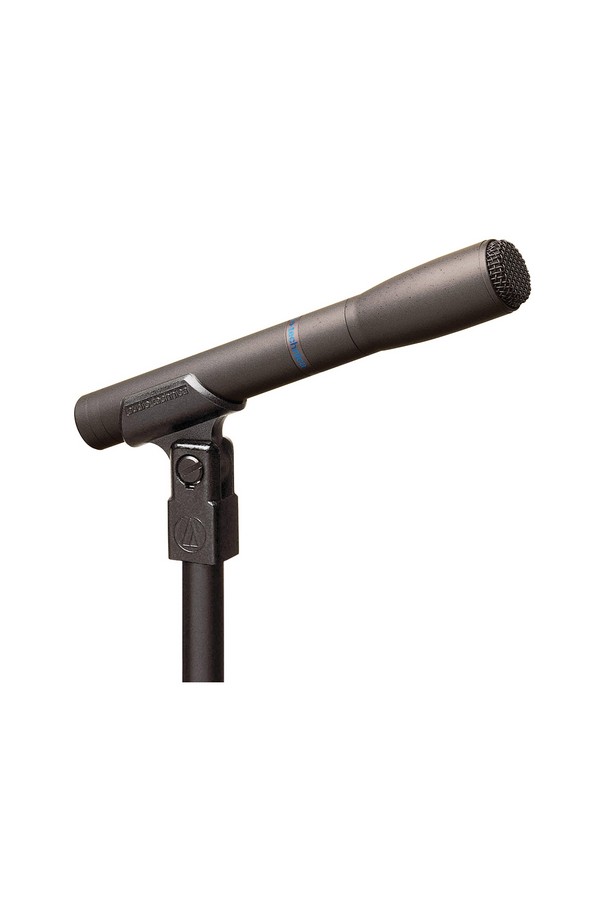

Ideal for interviews, pickup of audience reaction, and musical events, the AT8010 features an omnidirectional polar pattern that provides maximum ambient pickup. The microphone provides an extremely smooth, extended response on- and off-axis. Operates on battery or phantom power.
Ideal for interviews, group vocals, strings, cymbal overheads, acoustic guitar and piano
Omnidirectional polar pattern provides maximum ambient pickup
Extremely smooth, extended response on- and off-axis
Low sensitivity to popping and overload
Operates on battery or phantom power
RoHS compliant—free from all substances specified in the EU directive on hazardous substances
SPECIFICATIONS
ELEMENT Fixed-charge back plate permanently polarized condenser
POLAR PATTERN Omnidirectional
FREQUENCY RESPONSE 20-20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/Octave
OPEN CIRCUIT SENSITIVITY Phantom: –44 dB (6.3 mV) re 1V at 1 Pa / Battery: –45 dB (5.6 mV) re 1V at 1 Pa
IMPEDANCE Phantom: 250 ohms / Battery: 300 ohms
MAXIMUM INPUT SOUND LEVEL Phantom: 137 dB SPL, 1 kHz at 1% T.H.D. / Battery: 123 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (TYPICAL) Phantom: 113 dB, 1 kHz at Max SPL / Battery: 99 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 70 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, 2 mA typical
BATTERY TYPE 1.5V AA/UM3
BATTERY CURRENT / LIFE 0.4 mA / 1200 hours typical (alkaline)
SWITCH Flat, roll-off
WEIGHT 165 g
DIMENSIONS 178.0 mm long, 26.0 mm head diameter
OUTPUT CONNECTOR Integral 3-pin XLRM-type
ACCESSORIES FURNISHED AT8405a stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; AT8136 windscreen; battery; soft protective pouch windscreen; battery; soft protective pouch
