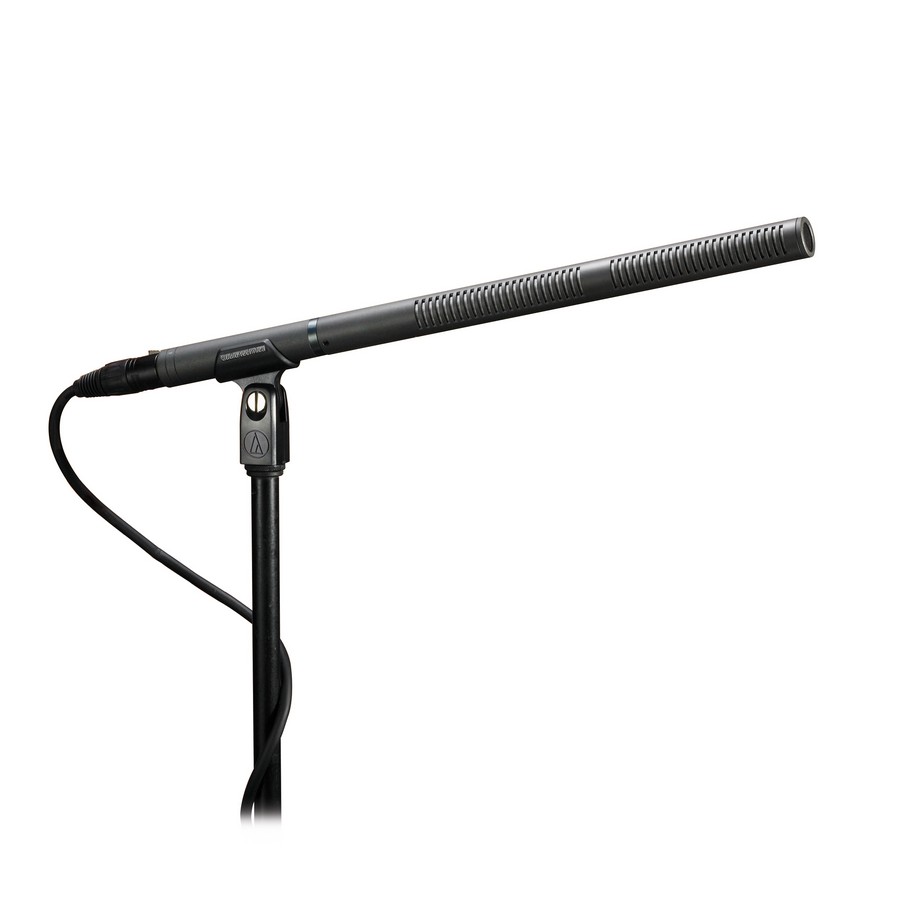

The length (14.53") of the AT8035 Line + Gradient Condenser Microphone is well-suited for ENG, outdoor recording and other specialized uses. The microphone is designed for video production and broadcast (ENG/EFP) audio acquisition. Suited for both boom & handheld use, it provides the narrow acceptance angle desirable for long-distance sound pickup, featuring excellent sound rejection from the sides and rear of mic and switchable low-frequency roll-off. It operates on battery or phantom power.
Designed for video production and broadcast (ENG/EFP) audio acquisition
Length is well-suited for ENG, outdoor recording and other specialized uses
Provides the narrow acceptance angle desirable for long-distance sound pickup
Excellent sound rejection from the sides and rear of mic
Switchable low-frequency roll-off
Operates on battery or phantom power
ELEMENT Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN Line + gradient
FREQUENCY RESPONSE 40-20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY Phantom: –38 dB (12.5 mV) re 1V at 1 Pa Battery: –39 dB (11.2 mV) re 1V at 1 Pa
IMPEDANCE Phantom: 250 ohms Battery: 300 ohms
MAXIMUM INPUT SOUND LEVEL Phantom: 132 dB SPL, 1 kHz at 1% T.H.D. Battery: 120 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical) Phantom: 110 dB, 1 kHz at Max SPL Battery: 98 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 72 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, 2 mA typical
BATTERY TYPE 1.5V AA/UM3
BATTERY CURRENT / LIFE 0.4 mA / 1200 hours typical (alkaline)
SWITCH Flat, roll-off
WEIGHT 170 g
DIMENSIONS 369.0 mm long, 21.0 mm diameter
OUTPUT CONNECTOR Integral 3-pin XLRM-type
ACCESSORIES FURNISHED AT8405a stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; AT8132 windscreen; battery; protective carrying case
