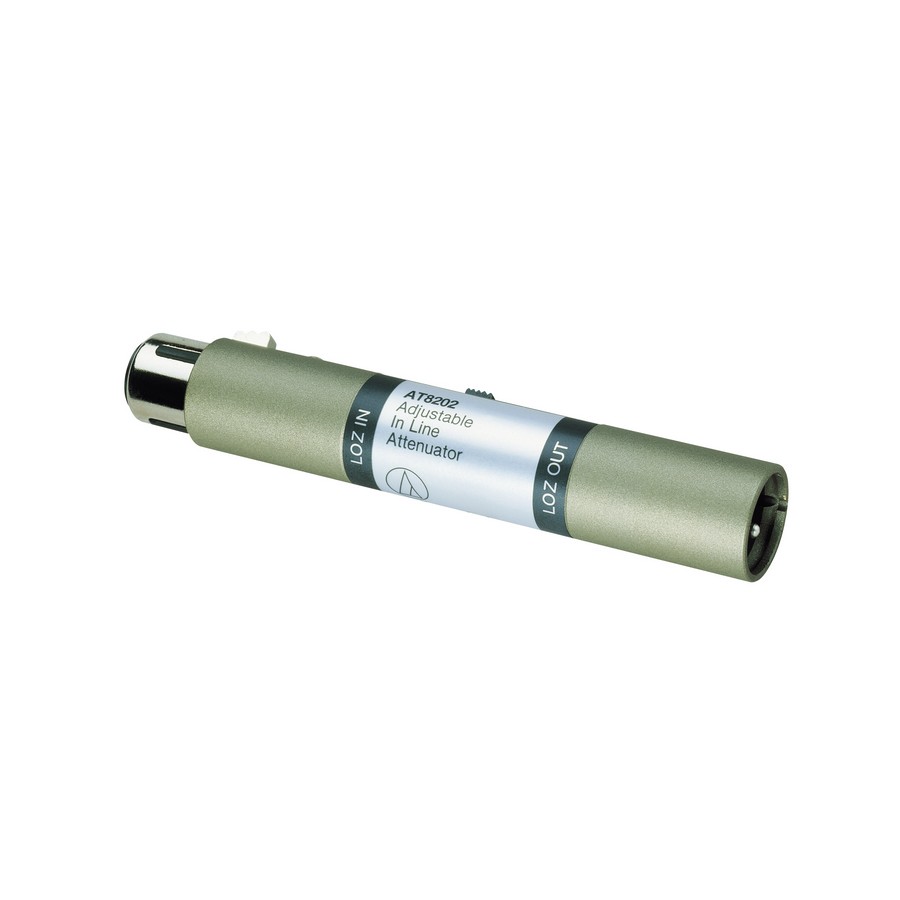

The Audio-Technica AT8202 Adjustable In-line Attenuator is designed to prevent balanced low-impedance microphones from overloading electronics having low- to mid-impedance inputs in high-SPL applications. The adjustable attenuator is designed to assure the proper match of the microphone to the inputs of mixing consoles and portable recording devices without experiencing input overload of the electronics due to high-level signals. The AT8202 is compatible for use in phantom power applications.
Prevents overload of sensitive input stages
Provides -10 dB, -20 dB or -30 dB attenuation
Compatible for use in phantom power applications
Durable steel case provides optimum shielding from hum
For use with balanced Lo-Z microphones
Can be plugged directly into an XLRF-type chassis-mount connector
Input Impedance 1000 ohms (-10 dB)
Output Impedance 200 ohms (-10 dB)
Frequency Response 20-20,000 Hz
Attenuation -10 dB, -20 dB, -30 dB
Input Connector XLRF-type
Output Connector XLRM-type
Weight 80 grams
Dimensions 100 mm long, 19 mm diameter
