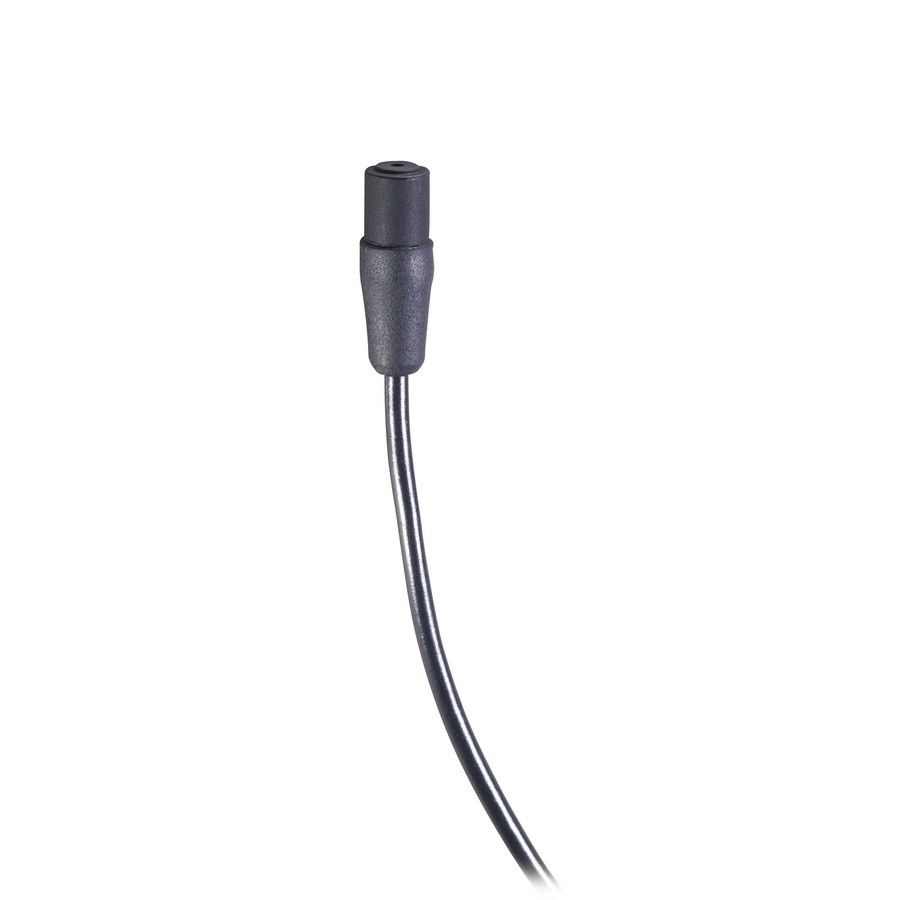

Audio-Technica’s omnidirectional AT899 is engineered for intelligible, accurate voice reproduction. Its low profile design (a mere 5 mm in diameter) assures minimum visibility. The mic may be worn as a lavalier and is easily hidden in clothing or hair. It offers the convenience of battery or phantom power; its switchable low frequency roll-off reduces popping.
Maximum intelligibility and clean, accurate reproduction for vocalists, lecturers, stage and television talent, and houses of worship
Low profile design (a mere 5 mm in diameter) is ideal for applications requiring minimum visibility
Operates on battery or phantom power
All wireless models available in either low reflectance black or beige
Extensive array of provided accessories includes a clothing clip, viper clip, magnet clip and lanyard (black models only), windscreens, element covers, interchangeable single and double mic holders
Accessories available separately include complete accessory kits, clothing clips, three pack element covers and three pack windscreens
3.0 m cable permanently attached to mic, TA3F connector at power module
RoHS compliant—free from all substances specified in the EU directive on hazardous substances
Also available as:
AT899c – less power module; 1.4 m cable, unterminated
AT899c-TH – same as AT899c but in "theater" colour (beige)
AT899cL4 – less power module; 1.4 m cable terminated with Lemo connector for Sennheiser SK wireless systems
AT899cL4-TH – same as AT899cL4 but in "theater" colour (beige)
AT899cT4 – less power module; 1.4 m cable terminated with TA4F connector for Shure wireless systems
AT899cT5 – less power module; 1.4 m cable terminated with TA5F connector for ATW-U101 body-pack wireless system
AT899cT5-TH – same as AT899cT5 but in "theater" colour (beige)
AT899cW – less power module; 1.4 m cable terminated with locking 4-pin connector for A-T UniPak™ wireless systems
AT899cW-TH – same as AT899cW but in "theater" colour (beige)
ELEMENT Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN Omnidirectional
FREQUENCY RESPONSE 20-20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY Phantom: -43 dB (7.0 mV) re 1V at 1 Pa Battery: -46 dB (5.0 mV) re 1V at 1 Pa
IMPEDANCE Phantom: 200 ohms Battery: 250 ohms
MAXIMUM INPUT SOUND LEVEL Phantom: 138 dB SPL, 1 kHz at 1% T.H.D. Battery: 116 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical) Phantom: 108 dB, 1 kHz at Max SPL Battery: 86 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 64 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, 2 mA typical
BATTERY TYPE 1.5V AA/UM3
BATTERY CURRENT / LIFE 0.4 mA / 1200 hours typical (alkaline)
SWITCH Flat, roll-off (recessed)
WEIGHT (MICROPHONE) 0.5 g
WEIGHT (POWER MODULE) 102 g
DIMENSIONS (MICROPHONE) 16.0 mm long, 5.0 mm diameter
DIMENSIONS (POWER MODULE) 145.0 mm long, 21.0 mm diameter
OUTPUT CONNECTOR (POWER MODULE) Integral 3-pin XLRM-type
CABLE 3.0 m long (permanently attached to microphone), 2.0 mm diameter, 2-conductor, shielded cable with TA3F output connector that mates with TB3M jack on power module
ACCESSORIES FURNISHED AT8537 power module; AT8439 cable clip; clothing clip base; viper clip base; magnet clip base and plate with lanyard; three single mic holders; two double mic holders; two element covers; two windscreens; battery; protective carrying case
