Remotely control your install microphones

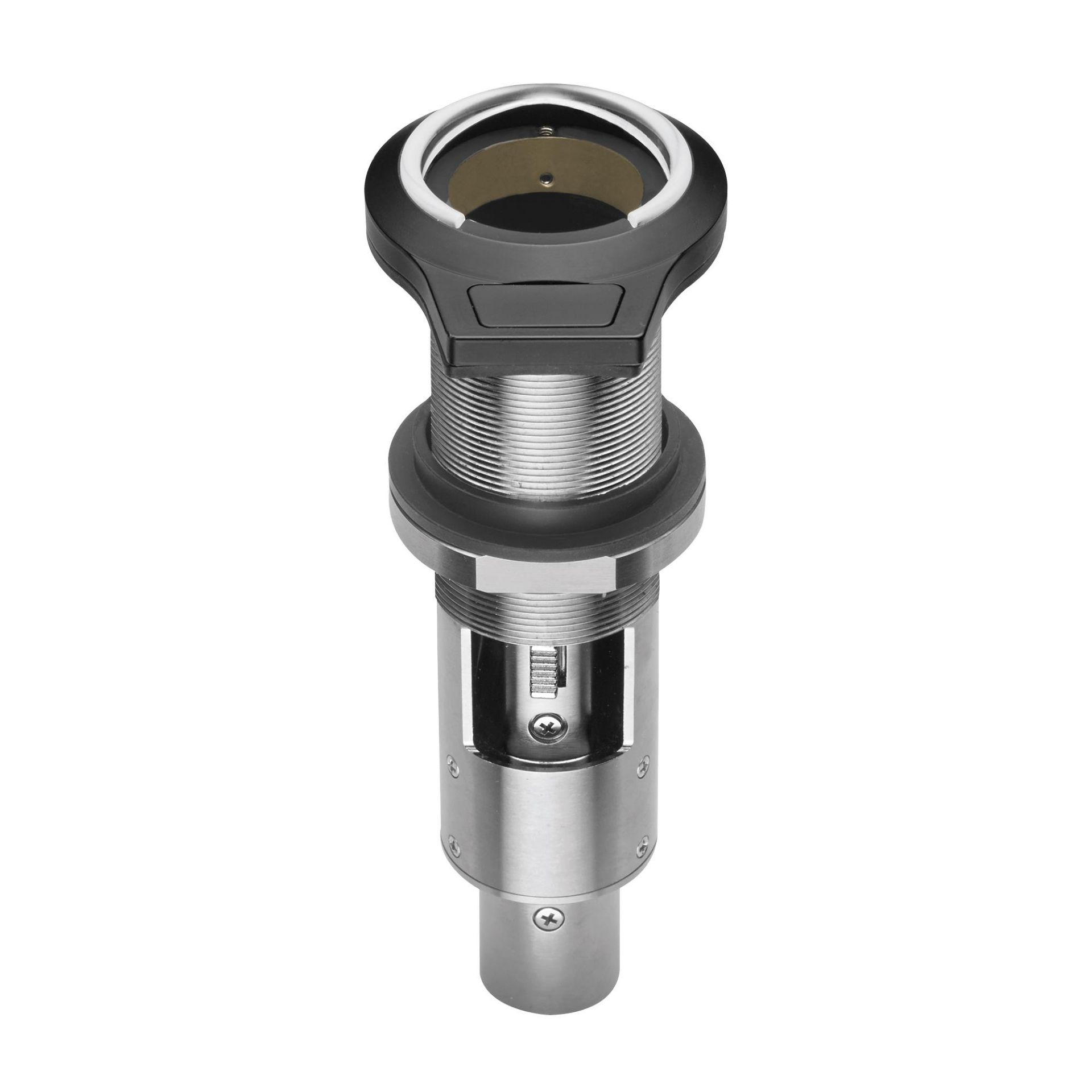

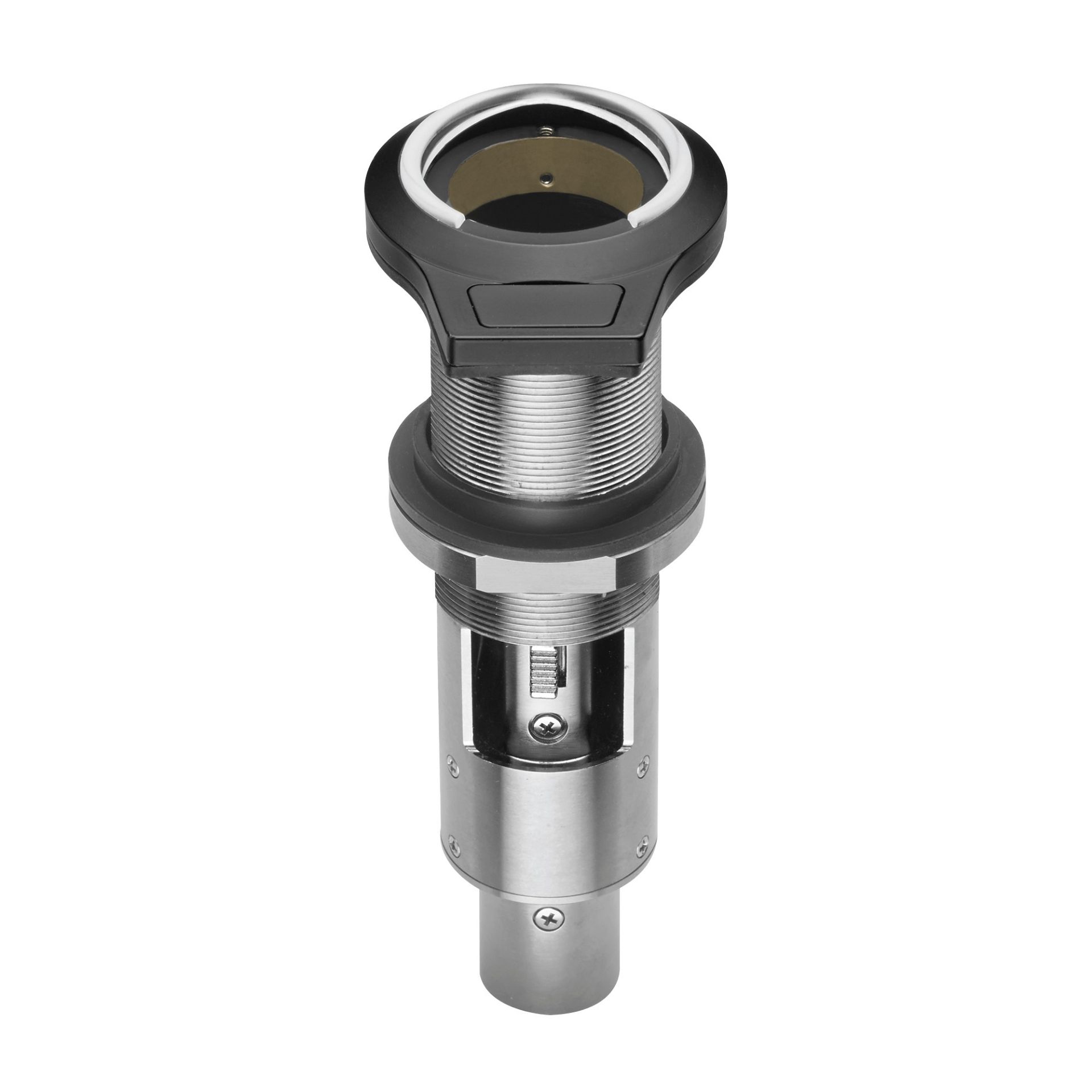

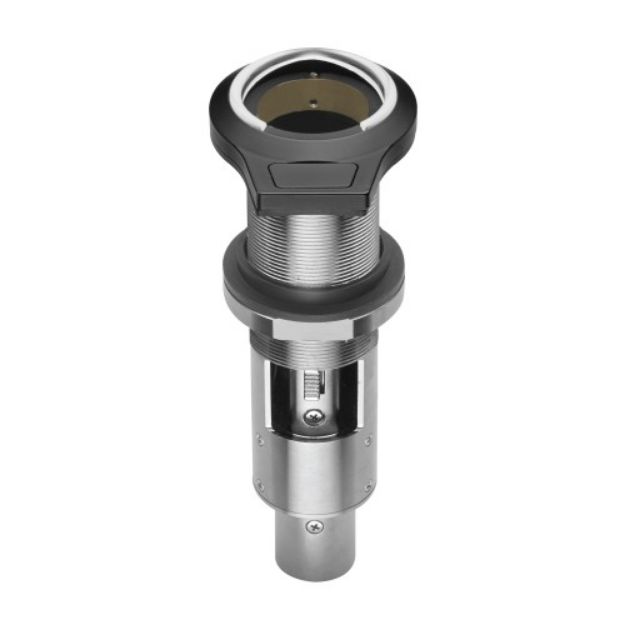

Designed to be recessed into a table, the AT8657/LED Microphone Adapter facilitates the use of any gooseneck microphone or button type surface microphone with a 3 pin XLRM output, such as the ES945 and ES947 microphones in various presentation environments.The socket’s logic out capability permits control of remote devices from a programmable capacitance switch, so users can easily trigger an external device (e.g., a camera or light) with the touch of a button – an extremely useful feature in conference and boardroom installations. The socket also features a lock switch that automatically locks the microphone in place upon insertion, holding it securely until switch is manually released by user.
Adapter allows the installation into a ceiling, wall or table of any gooseneck microphone or button type surface mic, equipped with a 3 pin XLRM output
Quick assembly for install microphones, allowing integration with discretion
The possibility of contact closure allows the controlling of external devices through a built in switch
The touch button allows the user to switch the Microphone from Mute (open) to Unmute (closed) and back.
Operates on 24-48V phantom power
The 360° ring shaped red / green LED lamp indicates the status of the microphone
The latch automatically locks the microphone in place, holding it firmly until manually unlocked by the user
The adapter output is a 3 pin XLRM
Supplied with insulation washers for damping the vibration surface
“green / red led lamp”
The AT8657/LED features an integral 360° Red/Green LED ring, controllable from a logic enabled device and powered by the microphone’s phantom power, eliminating the need for an additional power source.
“remote control”
The socket’s logic out capability permits control of remote devices from a programmable capacitance switch, so users can easily trigger an external device (e.g., a camera or light) with a touch of the button situated on the AT8657/LED.
“fast installation”
Microphone
Phantom Power Requirements 24-48V DC, 4 mA typical
Switches Touch-sensitive control: momentary
Weight 165 g
Dimensions 130.6 mm long, 55.0 mm maximum width
Output Connector 5-pin XLRM-type
Accessories Included One pair surface isolators; gooseneck retaining ring & isolator; mounting nut; screws (3) retaining ring & isolator; mounting nut; screws (3)
