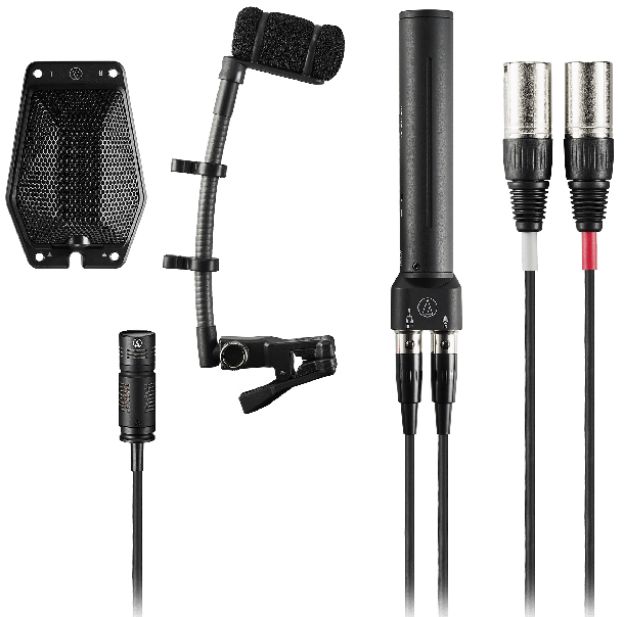

Engineered for professional broadcast, production and field recording applications, the BP350ST-UB features independent cardioid and figure of eight elements configured in an MS (midside) arrangement with switch selectable internal matrixing. The mic element can be mounted using either of the two included mounting solutions – a low profile boundary housing and a 5" gooseneck with clipon mount – to enable inconspicuous capture of true stereo sound
The BP350ST-UB midside capsule arrangement provides crisp, clear, well balanced stereo response, even at high SPLs. A switch on the included AT8547 power module allows users to choose between left right stereo output (wide or narrow) and discrete midside signals for later manipulation. Midside operation offers many advantages for postproduction editing, making it easier to place voices naturally in a mix, for example, and providing audio that won’t lose its depth when stereo channels are combined into a mono track. The two mics in one configuration also helps reduce common problems with stereo miking, such as time alignment and comb filtering
The BP350ST-UB’s element is enclosed within the same compact body as our popular ATM350a instrument mic, allowing it to be used not only with the included boundary housing, gooseneck, and clipon mount, but with any of our ATM350a mounts and mounting systems. The snapon grille of the included boundary housing provides easy access to the mic, which locks securely into the boundary’s base plate. The back of the plate is magnetized for easy mounting on metal surfaces and also includes four holes for screw mounting. With the gooseneck and clipon mount, the mic can quickly be positioned in any number of locations for ideal, close to the action sound pickup. The AT8491UC clipon mount includes a ¼" camera thread for use with a tripod or other device
The mic’s permanently attached 7.6 m (25') cable is terminated with a TA5F connector that plugs into the power module. A switch on the power module allows users to select an 80 Hz high-pass filter to suppress unwanted ambient noise. The power module comes with a 36 cm (14.2") TA5F to dual XLR3-M stereo cable that’s suitable for connecting to any traditional mic preamplifier with phantom power
Features
Innovative small format stereo microphone with MS (midside) capsule configuration engineered for broadcast, production and field recording
Ideal for indoor/outdoor fixed sound recording of sporting events, press conferences, theater and studio productions, and documentary films
Independent cardioid and figure of eight condenser elements
Excellent channel separation and a natural response, even at high SPLs
Switch selectable internally matrixed stereo modes (wide and narrow) and midside mode
Compact lightweight design
Rugged AT8490 5" gooseneck keeps microphone accurately positioned
AT8491UC universal clipon mount provides safe and secure mounting to a host of surfaces via spring clip or ¼"-20 thread mount
In line AT8547 power module is equipped with a switchable 80 Hz high pass filter
Polar pattern can be changed to hypercardioid by using the optional UE-H element or to line cardioid by using the optional UE-UL element together with the AT8180 windscreen (all sold separately)
Includes a 36 cm (14.2") TA5F to dual XLR3-M stereo output cable, AT8418 foam windscreen, and protective carrying case
Compatible with all ATM350a mounts and mounting systems (available separately) Choose from the following OPTIONAL UniMount® Components
AT8490 5" Gooseneck - attaches to Mounts
AT8418 5" Gooseneck with Spring Clip
AT8490L 9" Gooseneck - attaches to Mounts
AT8491D Drum Mount
AT8491G Guitar Mount
AT8491P Magnetic Piano Mount
AT8491U Universal Clip on Mount
AT8491W Woodwind Mount
Specifications
Microphones
Element Fixed charge back plate, permanently polarized condenser
Polar Pattern Cardioid, figure-of-eight
Frequency Response 40 to 20,000 Hz
Low Frequency Roll Off 80 Hz, 18 dB/octave
Open Circuit Sensitivity MID: -33.5 dB (21.1 mV) (0 dB=1 V/Pa, 1 kHz)
SIDE: -35 dB (17.8 mV) (0 dB=1 V/Pa, 1 kHz)
L/R: -39.5 dB (10.6 mV) (0 dB=1 V/Pa, 1 kHz)
Impedance 50 ohms
Maximum Input Sound Level MID: 148 dB SPL (1 kHz at 1% THD)
SIDE: 149.5 dB SPL (1 kHz at 1% THD)
Dynamic Range MID: 126 dB (1 kHz at Max SPL)
SIDE: 125.5 dB (1 kHz at Max SPL)
Signal-to-Noise Ratio MID: 72 dB (1 kHz at 1 Pa, A-weighted)
SIDE: 70 dB (1 kHz at 1 Pa, A-weighted)
L/R: 69 dB (1 kHz at 1 Pa, A-weighted)
Phantom Power Requirements 48 V DC, 8.2 mA (both channels total)
Switches Stereo mode selection (MS, LR-W, LR-N), Flat, Low cut
Mounted on a power module (AT8547).
Operation Temperature Range -10°C (14°F) to 60°C (140°F)
Storage Temperature Range -20°C (-4°F) to 60°C (140°F), 10% to 90% RH (without condensation)
Weight Microphone: 17 g (0.60 oz)
Power module: 49 g (1.7 oz)
Boundary housing (AT8494): 87 g (3.1 oz)
Cable Main unit cable: 7.6 m (25’)
Microphone cable (included): 0.36 m (1.2’)
Dimensions Microphone: 37.8 mm (1.5”) long, 12.7 mm (0.50”) maximum body diameter
Power module: 125 mm (4.9”) long, 21 mm (0.83”) diameter, 28 mm (1.1”) maximum width
Output Connector Power module: 5-pin mini XLR-M type
Microphone: 5-pin mini XLR-F type
Optional Interchangeable Elements UE-H Hypercardioid, UE-UL Line + gradient
Accessories Included
·Power module (AT8547)
·Boundary housing (AT8494)
·Gooseneck (standard) (AT8490)
·Universal mount (AT8491UC)
·0.36 m (1.2') microphone cable
·Hard shell carry case
