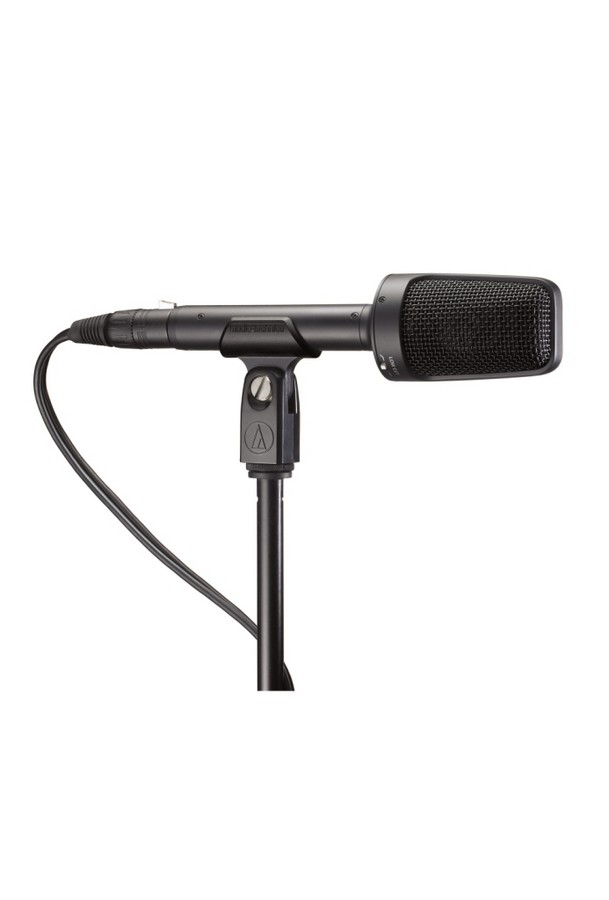

Designed for broadcast and professional recording, Audio-Technica’s BP4025 stereo condenser offers large-diaphragm capsules in an innovative coincident capsule configuration. This allows for a smaller housing while producing an X/Y stereo image with the spatial impact and realism of a live sound field. Ideal for use with professional audio and video equipment, the microphone is fully RoHS-compliant – free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)
Review.
Large-diaphragm capsules offer pristine sound quality and exceptionally low noise
Innovative coincident capsule configuration produces accurate stereo image in smaller housing
Compact, lightweight design is ideal for camera-mount use
Excellent channel separation
Phantom power operation—for use with professional equipment
Switchable low-frequency roll-off and 10 dB pad
Includes one balanced cable (two 3-pin XLRM-type connectors at output)
RoHS-compliant – free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)
ELEMENT Fixed-charge back plate permanently polarized condenser
POLAR PATTERN X/Y Stereo
FREQUENCY RESPONSE 20-17,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY -32 dB (25.1 mV) re 1V at 1 Pa
CHANNEL BALANCE <2.5 dB
IMPEDANCE 170 ohms
MAXIMUM INPUT SOUND LEVEL 145 dB SPL, 1 kHz at 1% T.H.D.; 155 dB SPL, with 10 dB pad (nominal)
DYNAMIC RANGE (typical) 131 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 80 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, 7 mA typical (both channels total)
SWITCH Flat, roll-off; 10 dB pad (nominal)
WEIGHT 269 g
DIMENSIONS 186.0 mm long, 47.6 mm head diameter 21.0 mm body diameter
OUTPUT CONNECTOR Integral 5-pin XLRM-type
CABLE 5.0 m long, 8 conductor, shielded, vinyl-jacketed stereo cable with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type connectors at output end
ACCESSORIES FURNISHED AT8405a stand clamp for 5/8"-27 threaded stands; windscreen; soft protective pouch threaded stands; windscreen; soft protective pouch
