CABLE TERMINATED with CH TYPE CONNECTOR for WIRELESS SYSTEMS

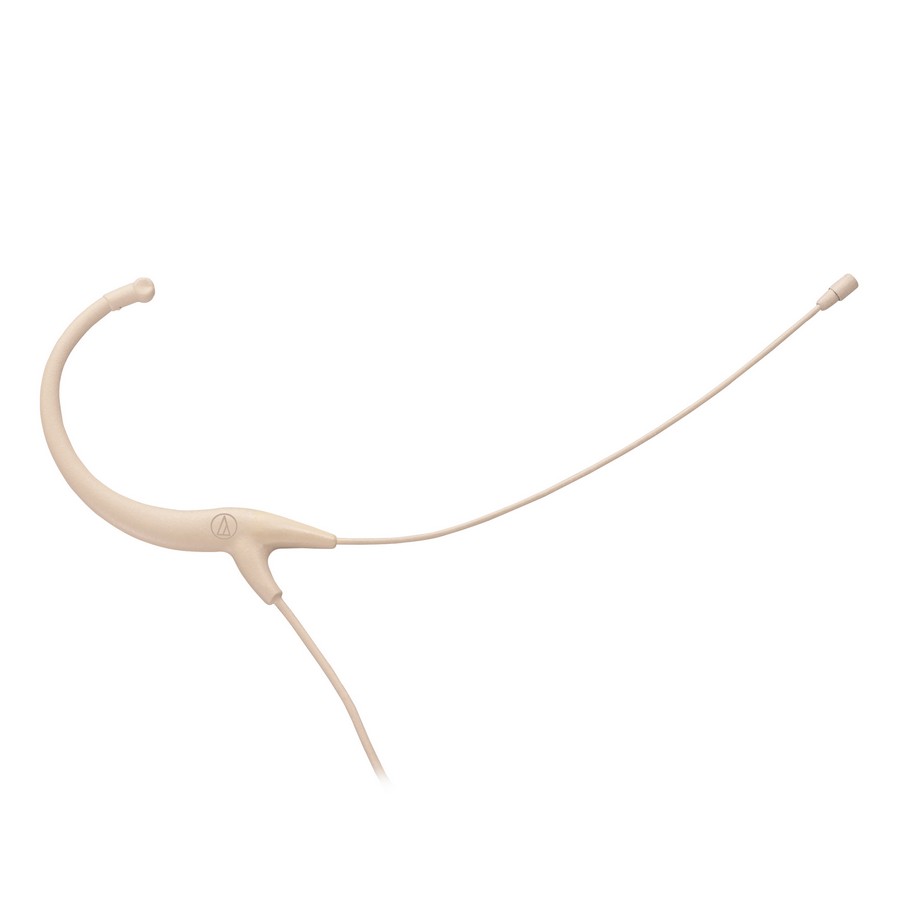

Audio-Technica’s high SPL BP892-TH MicroSet® offers the ultimate in low profile, high performance audio. Delivering clear and accurate sound in an inconspicuous package, the ultra lightweight BP892 hooks securely behind either ear and can be worn for hours without fatigue. For maximum stability and comfort, the included AT8464-TH dual ear microphone mount converts the MicroSet to a dual ear worn unit
The microphone features a flat, extended frequency response and other outstanding performance specifications, resulting in extremely intelligible, natural audio for stage and television talent, lecturers and houses of worship. Protected by a highly durable Parylene coating, the new headworn mic is built to stand up to the rigors of day to day use
Handles high sound pressure levels with ease
Extremely intelligible natural audio
Inconspicuous, lightweight headset with capsule diameter of just 2.6 mm is ideal for applications requiring minimum visibility
Ergonomic under ear design—flexible, lightweight contoured loop hooks behind the ear for an ultra secure, comfortable fit with or without glasses
Comes equipped with AT8464-TH Dual Ear Microphone Mount that converts single ear worn MicroSet to a dual ear worn unit for maximum stability and comfort
High pass filter on power module provides a steep low frequency attenuation to improve sound pickup without affecting voice quality
Available in black and beige, wired and wireless models:
ELEMENT Fixed charge back plate, permanently polarized condenser
POLAR PATTERN Omnidirectional
FREQUENCY RESPONSE 20-20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 18 dB/octave (wired only)
OPEN CIRCUIT SENSITIVITY –49 dB (3.5 mV) re 1V at 1 Pa
IMPEDANCE 250 ohms (wired only)
MAXIMUM INPUT SOUND LEVEL 135 dB SPL, 1 kHz at 3% T.H.D.
DYNAMIC RANGE (typical) 104 dB, 1 kHz at Max SPL (wired only)
SIGNAL-TO-NOISE RATIO 63 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, 2 mA typical (wired only)
SWITCH Flat, roll off (wired only)
CURRENT CONSUMPTION 0.1 mA typical at 5V (wireless only)
VOLTAGE RANGE 2.5-11V (wireless only)
WEIGHT (MICROPHONE) Microphone, boom & earpiece: 2.6 g (0.09 oz)
WEIGHT (POWER MODULE) 85 g (3.0 oz) (wired only)
DIMENSIONS Microphone: 8.1 mm (0.32") long, 2.6 mm (0.10") diameter Boom: 98.4 mm (3.87") long, 1.07 mm (0.04") diameter
DIMENSIONS (POWER MODULE) 97.6 mm (3.84") long, 18.9 mm (0.74") diameter (wired only)
OUTPUT CONNECTOR (POWER MODULE) Integral 3 pin XLRM type
CABLE 1.4 m (55") long (permanently attached to microphone), 1.6 mm (0.06") diameter, 2 conductor shielded cable with locking 4 pin connector (wired only)
ACCESSORIES FURNISHED BP892: AT8539 power module (wired only); AT8464 dual ear microphone mount; AT8440 cable clip; two AT8157 windscreens; two AT8156 element covers; moisture guard; belt clip (wired only); carrying case
BP892-TH: AT8539 power module (wired only); AT8464-TH dual ear microphone mount; AT8440 cable clip; two AT8157-TH windscreens; two AT8156-TH element covers; moisture guard; belt clip (wired only); carrying case
AUDIO-TECHNICA CASE STYLE M31
