This amplifier is designed for use with the following ButtKicker® transducer models only:
BK-LFE - quantity 4 max
BK-CT - quantity 4 max
BK-MINI-CT - quantity 4 max
BK-MINI-LFE - quantity 8 max
BK4-4 Advance - quantity 8 max
Specifications

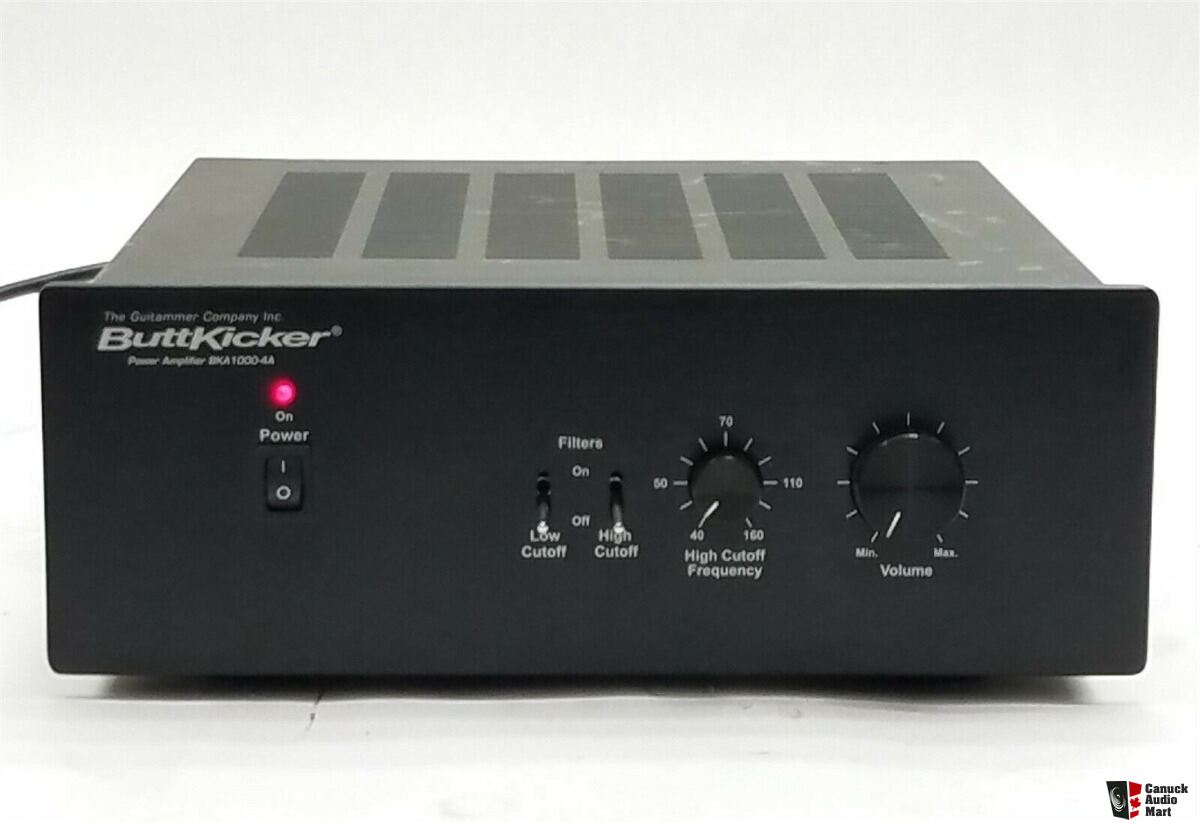

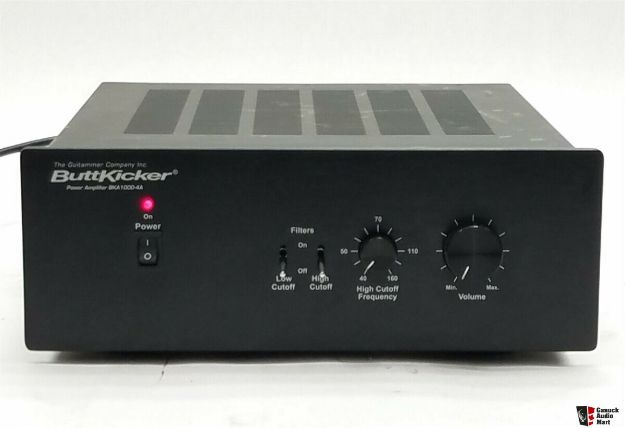

ButtKicker BKA1000-P Power Amplifier Specifications
Dimensions: 12.7” L x 16.9” W x 3.8“ H / 32.35cm x 43cm x 9.75cm
with rack ears 12.7” L x 19” W x 3.8” H / 32.35cm x 48.5 cm x 9.75cm
Weight: 13.45 lbs./ 6.1 kgs.
Power Output: 1300 watts RMS @ 2 ohms / 2100 watts Peak
920 watts RMS @ 4 ohms / 1200 watts Peak
*Based on one third power duty cycle
Frequency Response: 10 - 300Hz
Input Sensitivity: 160 mVolt - RCA 1.25V - TRS Balanced
High Cut Filter: 40Hz - 160Hz -3dB User Selectable
Rolloff: -12dB/Octave
Low Cut Filter: 25Hz -3dB
