The new Engineered Sound®. Contractor exclusive innovations for every acoustical challenge. And safe haven from RFI.

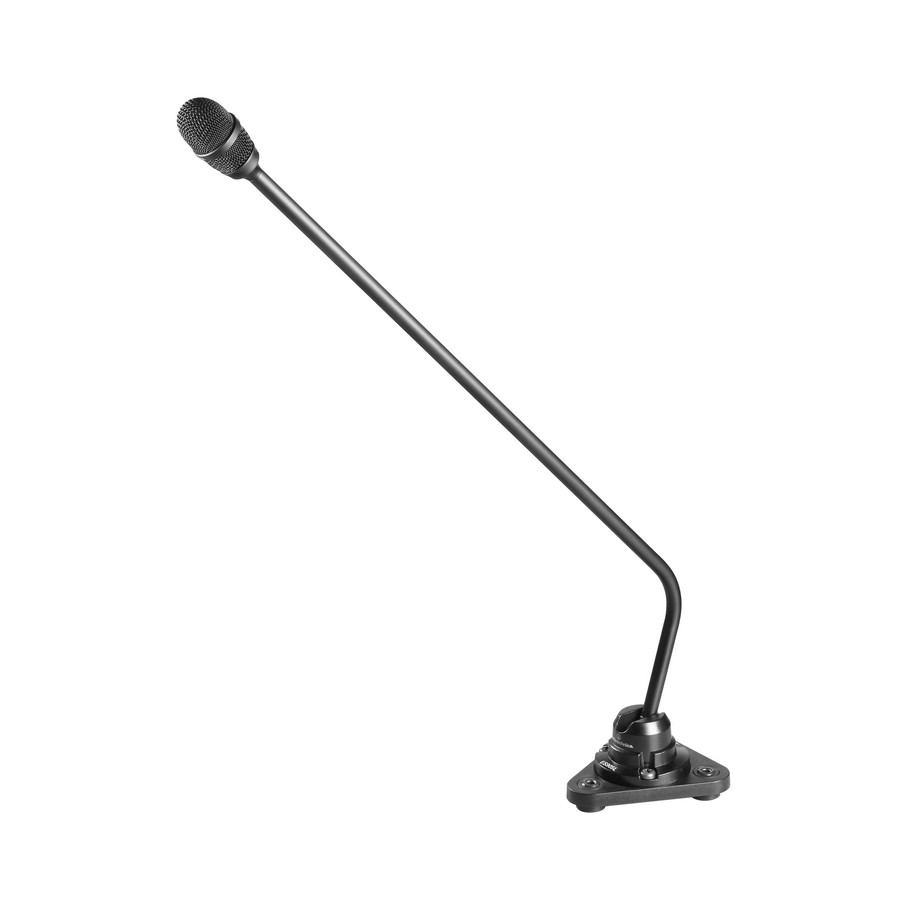

The ES905CL is designed for quality sound reinforcement, professional recording, television and other demanding sound pickup applications. Its ridgid pipe design with ball socket base permits flexible positioning, while its durable metal base mounts to a table, desk or podium with included hardware. The attached wire mesh windscreen with internal pop protection effectively reduces noise from P-pops, wind, and ventilation air currents. The microphone offers unsurpassed immunity from radio frequency interference thanks to UniGuard® innovations. The ES905CL also offers an 80 Hz low cut UniSteep® filter that reduces pickup of low frequency ambient noise. The microphone’s low profile element provides a uniform cardioid polar pattern with a 120º acceptance angle. Power module included.
Designed for high quality sound reinforcement, professional recording and broadcasting
Low-profile element provides uniform cardioid polar pattern with 120º acceptance angle
Ridgid pipe design with ball socket base permits flexible positioning
Sturdy metal base mounts to table, desk or podium with included hardware
Superior off-axis rejection for maximum gain before feedback
Requires 11V to 52V DC phantom power
UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
Integral UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
RoHS compliant—free from all substances specified in the EU directive on hazardous substances
ELEMENT Fixed-charge back plate permanently polarized condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 60-20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY –38 dB (12.5 mV) re 1V at 1 Pa
IMPEDANCE 250 ohms
MAXIMUM INPUT SOUND LEVEL 138 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical) 111 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 67 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, 2 mA typical
WEIGHT (MICROPHONE) 330 g
WEIGHT (POWER MODULE) 81 g
DIMENSIONS (MICROPHONE) 523.4 mm long 24.6 mm head diameter
DIMENSIONS (POWER MODULE) 92.9 mm long, 18.9 mm diameter
OUTPUT CONNECTOR (POWER MODULE) Integral 3-pin XLRM-type
CABLE 2.9 m long, (permanently attached to microphone) 3.2 mm diameter, 2-conductor, shielded cable terminated with TA3F-type connector
OPTIONAL INTERCHANGEABLE ELEMENTS ESE-H hypercardioid (100°); ESE-O omnidirectional (360°
ACCESSORIES FURNISHED AT8538 power module; (3) #8 x 1" black oxide wood screws for microphone mount oxide wood screws for microphone mount
