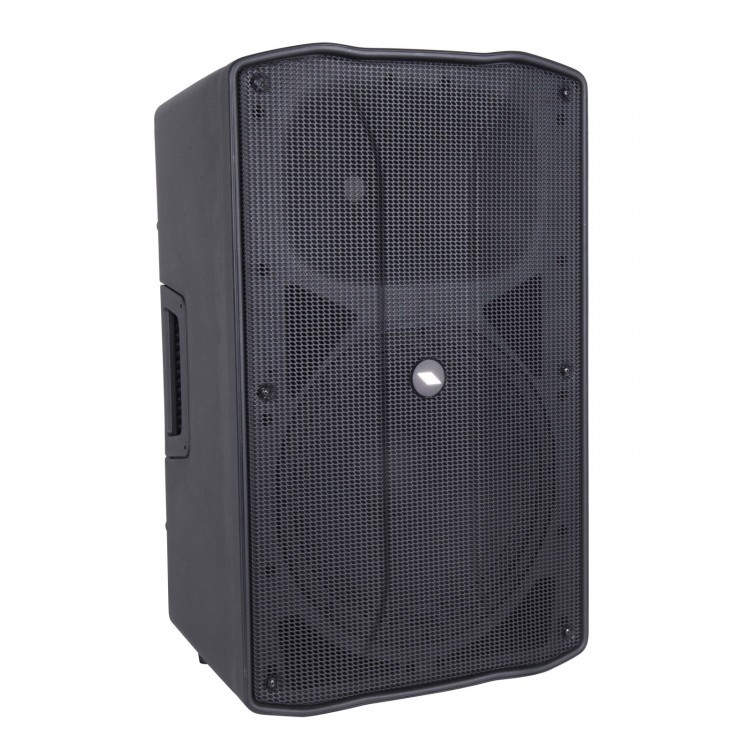

With FLASH X PROEL introduces the third generation of a series of loudspeakers that represented a reference for compact, portable systems for years. The new FLASH12XD continue a long history of high definition sound, reliability and rugged construction in an affordable package, adding now significant steps forward in technology. still offering the best in class performance, features and design.
FLASH XD are powered by newly designed amplifier modules able to provide up to 1000W of clean and undistorted power. The high efficiency Class D output stages, combined with light weight Switch Mode Power Supply, give FLASH XD a massive punch and a consistent reserve of power. The built in 2 channel mixer with independent LINE and MIC inputs can turn any FLASH XD system into an instant PA system.
The use of carefully selected and customized speakers, including high definition compression drivers and long excursion woofers, provide an accurate acoustic response and an amazing sound pressure level with very low distortion.
FLASH XD are controlled by the powerful PROEL CORE LT DSP, featuring high performance signal processing and high definition 24bit converters, capable to deliver an outstanding sound definition and a dynamic performance typical of top end systems. The CORE DSP signal processing includes a sophisticated Dynamic EQ, able to shape accurately the system’s sound while maintaining a full dynamic range at any level. In addition the CORE LT DSP offers an extensive dynamic protection to the system, for getting always the maximum undistorted output. 5 EQ PRESETS (MUSIC, LIVE, DJ, SPEECH, MONITOR) can be easily selected to adapt the speakers to any kind of application.
Common features of FLASH X are compact and lightweight PP cabinets with extended internal ribbing and symmetrical wedge angle, constant wide coverage (90° x 60°) horns for a uniform and coherent sound dispersion, newly designed aluminum handles and built in flying points for fixed installation.
• 2 way loudspeaker system
• 1” high definition compression driver with 1.35” VC and titanium diaphragm
• Wide coverage 90° x 60° constant directivity horn
• 12” long excursion woofer with 2.5” voice coil
• 1000 W peak Class D power amplifier with SMPS
• High definition CORE LT DSP with Dynamic EQ
• 5 DSP presets (MUSIC, LIVE, DJ, MONITOR, SPEECH)
• MIC and LINE inputs with independent level control
• SPL MAX: 127 dB
• Frequency response: 55 Hz - 20 kHz
• Lightweight, compact and ultra durable PP cabinet
• 3 ergonomic aluminum handles
• Slanted symmetrical shape for the use as a monitor
• Four M10 flying points
System type 2 way vented enclosure
High Frequency Device 1’’ compression driver with 1.35" voice coil and titanium diaphragm
Low Frequency Device 12 woofer with 2.5 VC
Angular Coverage 90° H x 60° V
Total Peak Power 1000 W
HF Amplifier Continuous Power 100 W Class AB
LF Amplifier Continuous Power 400 W Class D
Power Supply SMPS
Processing CORE LT digital processor
Frequency Response 55 Hz - 20 kHz
Max SPL 127 dB
Connectors IN: Combo, XLR F MIX OUT: XLR M
Controls MIC LEVEL, LINE LEVEL, DSP MODE, GND LIFT
Weight 19.0 kg
Floor Monitor Angle 42°
Flying System 4 x M10 - top/bottom
Cabinet Material Polypropylene
Handles 2 x sides, 1 x top aluminum
Mounting Pole 1 x bottom
Dimensions (W x H x D) 390 x 623 x 350 mm Dimensions (W x H x D) 390 x 623 x 350 mm Dimensions (W x H x D) 390 x 623 x 350 mm Dimensions (W x H x D) 390 x 623 x 350 mm Dimensions (W x H x D) 390 x 623 x 350 mm
