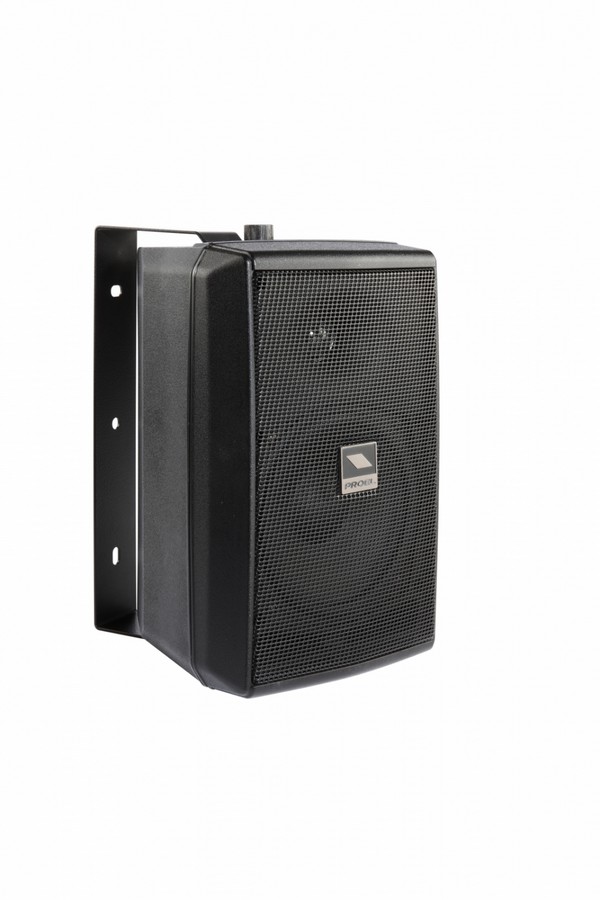

FLASH5 is the latest addition to this successful PROEL series of loudspeaker systems. Sharing the same stylish design, hitech engineering and superior sound quality of the FLASH family, FLASH5 is the most compact model of the series, designed for a variety or sound reinforcement applications where a full bandwidth, ultra-compact speaker is required.
Passive 2-way system
Studio-grade dome tweeter on elliptical waveguide
5” woofer with PP cone
80W AES power handling
Push terminals
SPL 1w/1m 91 dB
Frequency response 70 Hz - 20 kHz
Lightweight polypropylene cabinet with extensive framing system available in BLACK (FLASH5P) and WHITE (FLASH5PW)
Symmetrical trapezoidal shape for the use also as a stage monitor
1 top handle
3 x M6 flying points
TECHNICAL SPECIFICATIONS
System type 2-way vented enclosure
High Frequency Device Soft dome tweeter on elliptical waveguide
Low Frequency Device 5” woofer with PP cone
Angular Coverage 90° H x 60° V
Nominal Impedance 16 Ohm
Power Rating (continuous) 80 W
Power Rating (peak) 160 W
Frequency Response 80 Hz - 20 kHz
Sensitivity 91 dB @ 1 W/1 m
Crossover Frequency 3000 Hz
Connectors Push terminals
Weight 2.5 kg
Monitor Taper 42°
Flying System 3 x M6 - top/bottom
Construction Polypropylene
Cabinet Colour Black/White
Dimensions (W x H x D) 175 x 265 x 176 mm Flying System 3 x M6 - top/bottom
Construction Polypropylene
Cabinet Colour Black/White
Dimensions (W x H x D) 175 x 265 x 176 mm
