- (30/0.10 Oxygen Free Copper x 2 Conductors + Cotton + 7/0.20TC) x 1 Conductor
- 1.2mm Foamed PE Insulation
- 1.6mm PVC Insulation
- OD: 6.5mm PVC Outer Jacket

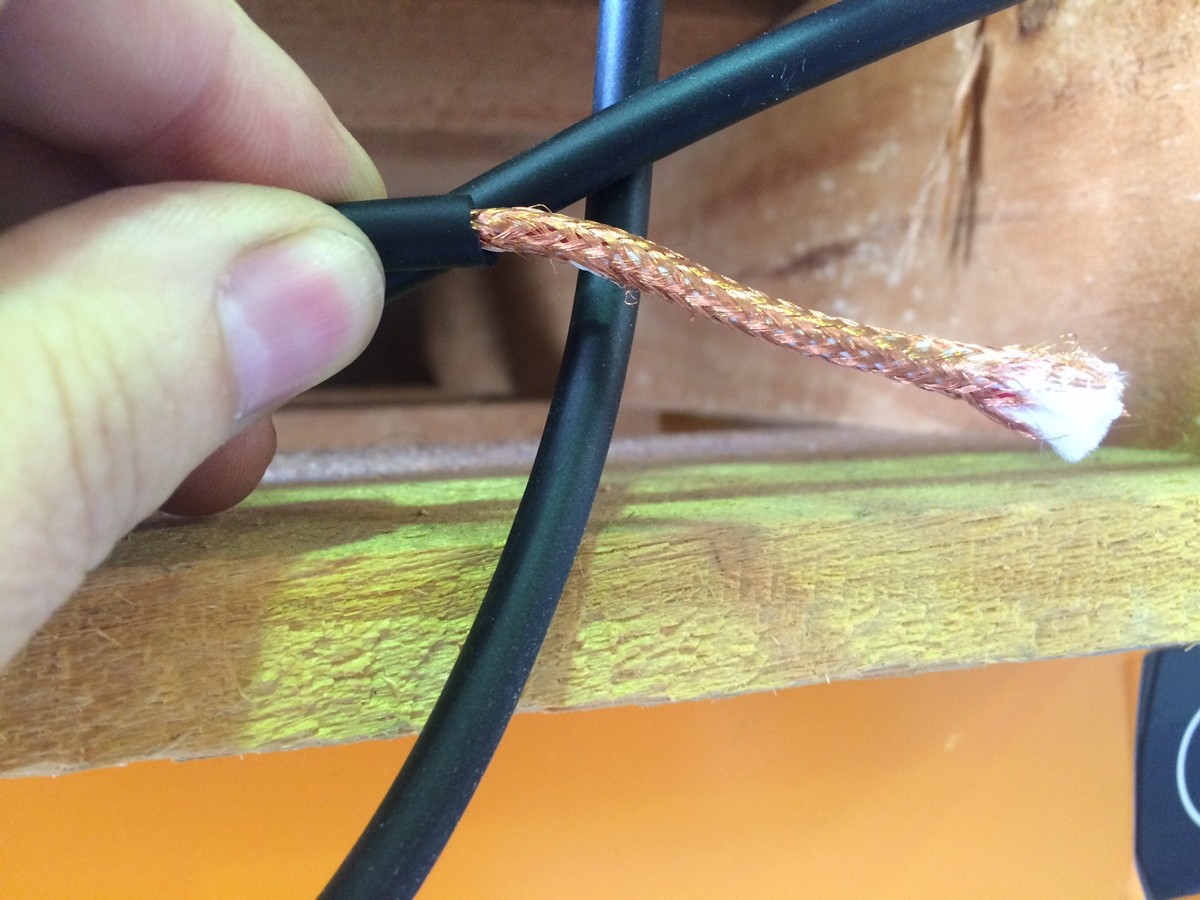

- 90% Braid Shielding
- Weight : 46 Kg/Km
- Minimum bending radius : 20 x cable section radius
- Colours Available : Black
CONDUCTORS
Bare copper
24 AWG = 30 x 0.10 mm (0.22 mm²)
Insulation : Super flexible PVC HT105 ø 1.60 mm
Spiral cotton filler
CABLE
Spiral copper Shield 16 x 5 x 0.10 mm > 90%
Jacket : Flexible PVC 60 shore ø 6.50 mm
Conductor resistance : 93 Ohm/Km @ 20°C
Shield resistance : 20 Ohm/Km @ 20°C
Conductor/conductor capacitance : 46 pF/mt @ 1 KHz
Conductor/shield capacitance : 90 pF/mt @ 1 KHz
Velocity of propagation : 80 %
Operating temperature : -20°C / +70°C
Working voltage : 50 V
