WPM is an optimised line array module with a passive 16 ohm design. 2 x 6.5" LF 3 x 1.4" dome HF in a single enclosure. WPM elements are matched with the IK81 and with Martin Audio display to allow the user to specify the resolution to which the system is optimised from 1 to 4 enclosures per amp circuit. 76Hz-18kHz ± 3dB. 100º horizontal. 130dB Peak
Features
Ultra compact line array
Scalable resolution for advanced array control
External, dedicated, multi channel Class D amplification
Industry leading DISPLAY software interacts with DSP for highly accurate results
Fast, integral 3 point flying systems for up to 16 enclosures
Side and rear handles for ease of handling and setting splay angles
100° horizontal constant directivity pattern control
Benefits
Consistent coverage achieved ‘straight out of the box’
DISPLAY intelligent software reduces set up time and eliminates trial-and-error
Improved audience coverage with reduced sound spill
Applications
Touring sound reinforcement for small and medium size venues
Fixed installations in concert halls, theatres, ballrooms and HoW
Sports stadium, arena installations & corporate AV events
TYPE Two-way, passive line array element
FREQUENCY RESPONSE 76Hz-18kHz ± 3dB
DRIVERS
LF: 2 x 6.5” (165mm) contoured-diaphragm /2” (50mm)
edge wound CCAW voice coil, neodymium magnet drivers, reflex loaded
HF: 3 x 1.4” (35mm) aluminium dome /1.4” (35mm) voice coil,
neodymium magnet compression drivers on constant directivity waveguide
SYSTEM RESOLUTION 1 to 4 enclosures per amplifier channel
MAXIMUM SPL 130dB peak (1 cabinet)
NOMINAL IMPEDANCE 16O
DISPERSION (-6DB)
100º horizontal (-6dB), 125º horizontal (-10dB)
10° vertical
CROSSOVER 1.2kHz passive
ENCLOSURE Vertical trapezoid with 5º wall angle, Multi-laminate birch and poplar-ply construction
FINISH Black textured paint
PROTECTIVE GRILLE Black HEX perforated steel
CONNECTORS 2 x NL4 type
INPUT CONNECTIONS 1+/1-
FITTINGS

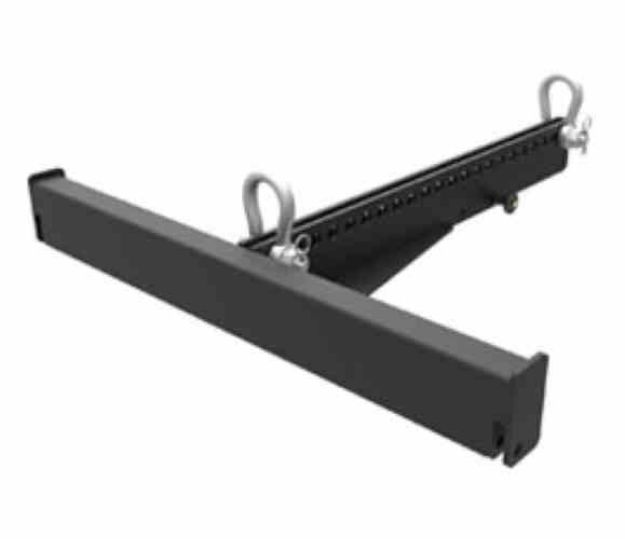

Integral 3-point rigging system
2 x side pocket handles
2 x rear grip handles
FLOWN ARRAY MAXIMUM 16 enclosures in single array
DIMENSIONS
(W) 500mm x (H) 185mm x (D) 377mm
WEIGHT 14kg
