Info Video TYPE Compact, Coaxial Differential Dispersion passive
two-way system
FREQUENCY RESPONSE (5) 65Hz-20kHz ± 3dB, -10dB @ 55Hz
DRIVER LF: 10” (250mm)/2.5” (63.5mm) voice coil, long excursion,
shared ferrite motor system with HF
HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome
compression driver
RATED POWER 120W AES, 240W peak
RECOMMENDED AMPLIFIER iK81
TRANSFORMER SETTINGS 70V line: 120W, 60W, 30W, 15W
100V line: 120W, 60W, 30W
SENSITIVITY 96dB
MAXIMUM SPL 117dB continuous, 123dB peak
NOMINAL IMPEDANCE Line transformer taps: 42, 83, 166, 333 ohms
DISPERSION (-6dB) 110°-75° horizontal, 60° vertical (user-rotatable)
CROSSOVER 2kHz passive
ENCLOSURE 28 litre, composite material
FINISH Black or white textured paint
GRILLE Black or white perforated steel with scrim cloth backing
CONNECTORS Low profile 20A push-lock
PHOENIX CONNECTOR 5 WAY 70V: Common, 15W, 30W, 60W, 120W
100V: Common, 30W, 60W, 120W
FITTINGS 6 x M8 inserts for wall bracket
10 x M8 fly points
DIMENSIONS (W) 323mm x (H) 513mm x (D) 310mm
WEIGHT 16.9kg
ACCESSORIES CDDWB10/12B wall bracket black
CDDWB10/12W wall bracket white
CDDY10B yoke assembly black
CDDY10W yoke assembly white

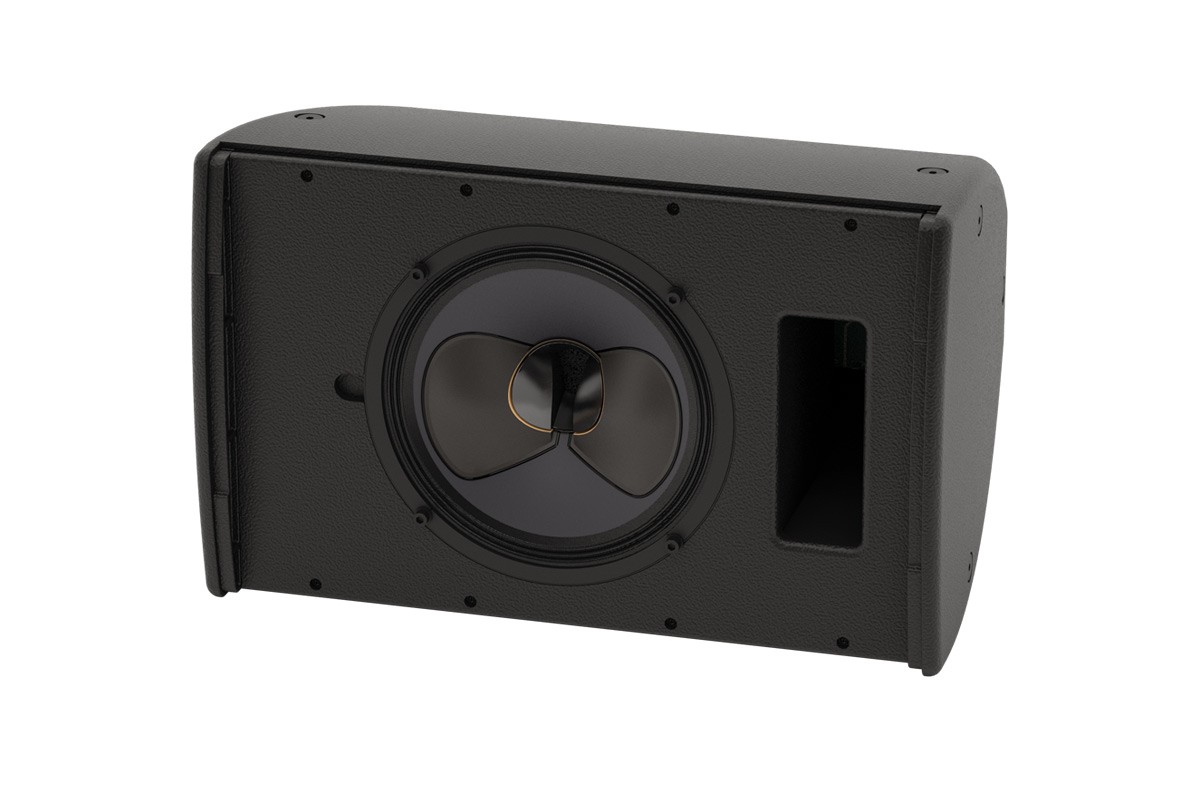

The CDD10-WR is a weatherised very compact two way passive loudspeaker system suitable for outdoor applications where it will be subject to changing environmental conditions, but sheltered from direct exposure to the elements. It utilises a 10” (250mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion driver and features a water and particle resistant grille made from zinc plated mild steel with powder coated finish and is suitable for operating temperatures between -20°C to +70°C and environmentally tested to meet IP54.
The Coaxial Differential Dispersion technology employed in the CDD10-WR delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns projecting relatively more output to the rear of the audience, while having wide horizontal coverage close up. Its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections eliminating off axis variations in frequency response associated with noncoaxial designs. Improving on conventional coaxial designs, which can suffer from high frequency beaming, the driver features a static waveguide that merges seamlessly with the unique cone shape maintaining the dispersion pattern out to very high frequencies.
The visually distinctive composite enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw free, protective grille. The curved shape of the CDD10-WR allows it to be surface mounted close to a wall via an optional wall bracket or suspended from a ceiling by eyebolts or a horizontal yoke option. A full suite of weatherised accessories are available and fixings on the loudspeaker are stainless steel.
Finished in black (RAL9005) or white (RAL9016) as standard.
A full range, passive two way system, the CDD10-WR may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.5, DX1.5 or DX2, or an MA Series amplifier with onboard DSP will maximise its capabilities. When used with a CSX subwoofer, crossover and EQ functions can either be performed by the DX0.5, DX1.5 and DX2 system controllers, or by an MA Series amplifier with onboard DSP option
