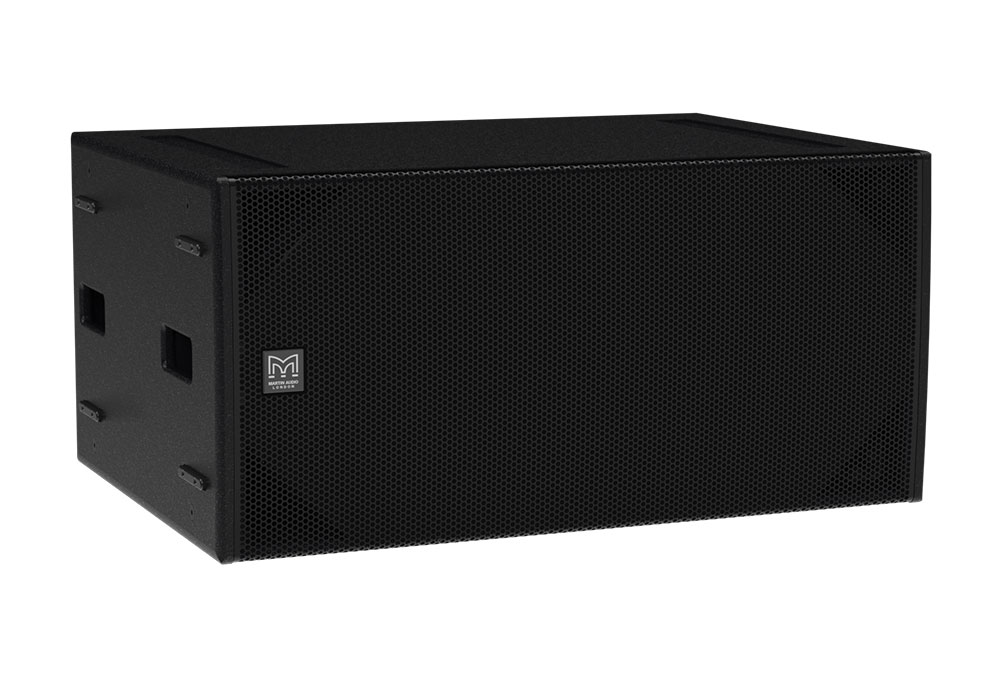

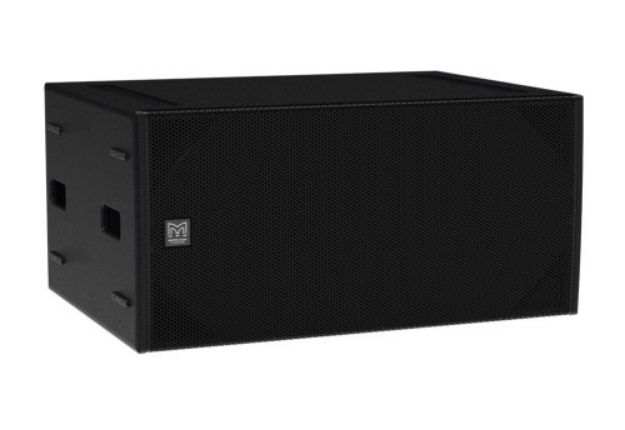

The SX215 is a very powerful, compact subwoofer with an operating range of 45-100Hz + 3dB. Featuring two long excursion 15” (380mm) /4” (100mm) voice coil drivers with water resistant cones and triple roll surrounds, it delivers exceptional low frequency extension and impact from such a compact enclosure. Eight reflex ports with a large frontal area increase LF output efficiency and reduce turbulent air noise at high levels
Features
Dual driver, direct radiating subwoofer
Dual long excursion 15” (380mm)/4” (100mm) voice coil drivers with water resistant cones
Very high output capability
Plywood enclosure with flying inserts
Large ports for reduced air noise
TYPE Dual Driver, Direct radiating subwoofer
CROSSOVER FREQUENCY 100Hz
FREQUENCY RESPONSE 4? 45Hz - 100Hz ± 3dB, -10dB @ 36Hz
DRIVERS LF: 15” with 4” Voice coil, Ferrite Motor
SENSITIVITY (2W 1m half space) 106dB (1W 1M HALF SPACE) 103DB
NOMINAL IMPEDANCE 4 Ohms
RATED POWER AES 2000W, PEAK 8000W
MAXIMUM SPL (SYSTEM) 136dB continuous, 142dB peak
DISPERSION Omni Directional / or Cardioid (paired)
CONNECTORS 2 x NL4
PIN CONNECTIONS (INPUT) 1+/-
PIN CONNECTIONS (LINK) 1+/- and 2+/-
DIMENSIONS (W) 961mm, (H) 463mm, (D) 679mm (807mm with Casters)
WEIGHT 64kg
