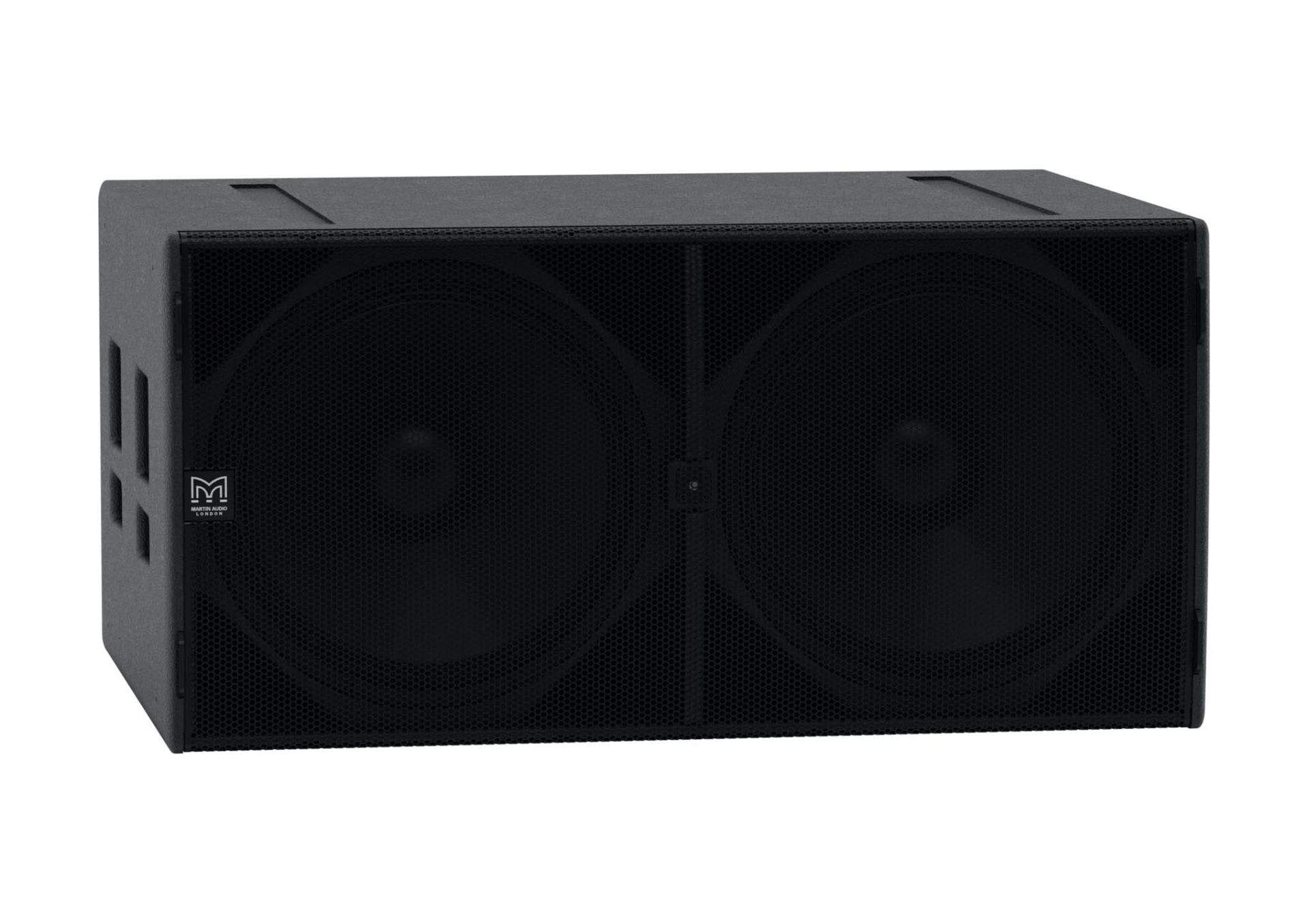

The SXP218 achieves the ultimate in subwoofer performance for the most demanding professional applications – delivering very high output levels and superb transient performance with minimal distortion. With an operating range of 35Hz-150Hz ± 3dB, it houses dual 18” long excursion (460mm)/4” (100mm) voice coil drivers with water resistant cones and triple roll surrounds. The design of the 18” drivers maximises output while minimising power compression and distortion, and the eight reflex ports have a large frontal area to reduce turbulent air noise at very high levels. With a prodigious maximum SPL capability of 143dB peak at 1 metre, the SXP218 is the ideal subwoofer for touring sound reinforcement, theatre and portable live sound applications — as well as premium installations — that require low frequency augmentation with low distortion at very high output levels.
Features
Dual driver, self powered subwoofer
2 x 18” (460mm) drivers with 4” (100mm) voice coils
Very high output capability
Onboard Class D amplification and DSP
Dante™ Digital Audio networking
Global mains operation with Power Factor Correction
Tour grade plywood enclosure with flying inserts
IP24 rating option with rain cowl
Specifications
ACOUSTICS
TYPE Dual-driver, direct radiating powered subwoofer
FREQUENCY RESPONSE 35Hz – 150Hz ±3dB, -10dB @ 30Hz
DRIVER 2x 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet,
waterproof cone
INPUT SENSITIVITY -30dBu for 100dB SPL
MAXIMUM SPL 140dB continuous / 143dB peak
DISPERSION Omnidirectional / or Cardioid (paired)
CROSSOVER Active Presets for CDD Live 8, 12 & 15 mono-pole or cardioid (paired)
AUDIO INPUT
CONNECTORS Female XLR input, male XLR link output, Dante Audio Neutrik® Ethercon
ANALOGUE INPUT IMPEDANCE 20 kO balanced to ground
MAXIMUM ANALOGUE INPUT LEVEL 24.6 Vpp (+21dBu), over voltage protected
INTERNAL PROCESSING Multi-channel DSP, programmable via TCP/IP using VU-Net software
PEQ/shelving filters
Up to 48dB/Oct LPF
Up to 200mS input delay
Pre set selection via rear panel switch
NETWORK
CONNECTORS 2 x Neutrik® Ethercon RJ45
PROTOCOL TCP/IP and UDP/IP
AMPLIFIER MODULE
TYPE Two 2 channel switch-mode, class D,
Bridged Tied Load
PEAK OUTPUT POWER 4000W
AVERAGE EFFICIENCY 89%
COOLING External fan
MAXIMUM AMBIENT TEMPERATURE 40°C (104°F) for full output
POWER SUPPLY
TYPE Switch mode, fixed frequency with PFC
AC INPUT OPERATING RANGE 85 – 265V ~ AC, 50 - 60Hz
POWER FACTOR > 0.98
NOMINAL POWER CONSUMPTION 250W
MAINS CONNECTOR Neutrik® Powercon True1
MECHANICAL
ENCLOSURE Extensively braced multi-laminate birch plywood.
FINISH Durable Polyurea Coating
GRILLE Black perforated Zintec
FITTINGS
Two skids on base, with mating channels on top
16 x M8 inserts for optional castors
24 x M10 mounting points
4x Bar handles, 2 on each side
4x fittings for optional transit cover
M20 Pole mount insert
IP RATING IP24 factory option available
DIMENSIONS (W) 1085mm x (H) 537mm x (D) 792mm (920mm including castors)
WEIGHT 101.5kg w/o castors 105kg with castors (W) 42.72in x (H) 21.13in x (D) 31.16in (36.20in including castors)
WEIGHT 101.5kg (224lbs) w/o castors 105kg (231lbs) with castors TYPE Two 2 channel switch mode, class D, Bridged Tied Load
PEAK OUTPUT POWER 4000W
CONTINUOUS OUTPUT POWER 2000W
AVERAGE EFFICIENCY 89%
COOLING External fan
MAXIMUM AMBIENT TEMPERATURE 40°C for full output
Power Supply
TYPE Switch mode, fixed frequency with PFC
AC INPUT OPERATING RANGE 85 – 265V ~ AC, 50 - 60Hz
POWER FACTOR > 0.98
NOMINAL POWER CONSUMPTION 550W
MAINS CONNECTOR Neutrik® Powercon True1
Mechanical
ENCLOSURE Extensively braced multi laminate birch plywood
FINISH Textured black PU coating
GRILLE Black perforated Zintec
FITTINGS Two skids on base, with mating channels on top
16 x M8 inserts for optional castors
24 x M10 mounting points
4x Bar handles, 2 on each side
4x fittings for optional transit cover
M20 Pole mount insert
16 x M8 inserts for optional castors
IP RATING IP24 factory option available
DIMENSIONS (W) 1085mm x (H) 537mm x (D) 792mm (920mm including castors)
WEIGHT 101.5Kg w/o castors 105kg) with castors
ACCESSORIES 16 x M8 inserts for optional castors, Input Board Cover, Transit Cover
