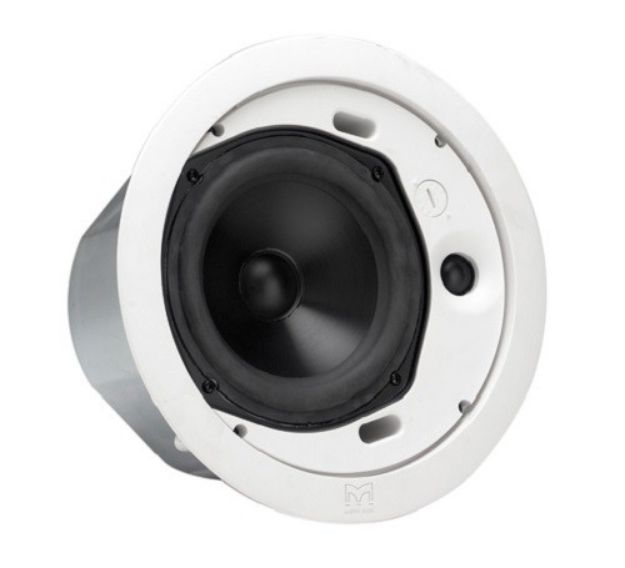

Featuring a 6.5" (165mm) bass driver and a 0.8" (19mm) dome tweeter, The C6.8T is ideal for flush mounted applications where full frequency performance and wide dispersion are required from a compact, ported enclosure. The side-by-side arrangement of the drive units maintains smooth response up to 75° off-axis and makes the C6.8T perfectly suited for use in low ceilings, where its broad coverage means that fewer units will be required to deliver premium sound over the required listening area. The C6.8T features a 4-point mounting system for ease of installation and a rising clamp plug and socket permit easy pre-wiring with up to 2.5mm2 conductors.
These products comply with UL2043 Fire Tests for Heat & Visible Smoke Release for Discrete Products and their Accessories Installed in Air Handling Spaces.
•Two-way high performance flush mounting ceiling speaker
•6.5" (165mm) UL94V-0 carbon fibre loaded polypropylene cone bass driver
•Very wide dispersion – 150° conical up to 7kHz
•High & low impedance operation – transformer included
•106dB continuous max SPL @ 1 metre
•75W power handling – 16 ohm (40W transformer)
•Polyswitch and thermal fuse protection
•Steel backcan
•UL2043 & UL1480
TYPE Ceiling mounted, two-way vented enclosure
FREQUENCY RESPONSE 90Hz-20kHz ± 3dB
-10dB @ 70Hz
DRIVERS 6.5" (165mm) UL94V-0 PP bass driver
0.8" (19mm) dome tweeter
RATED POWER 75W AES, 300W peak
RECOMMENDED AMPLIFIER MA2.8Q
SENSITIVITY 89dB
MAXIMUM SPL 106dB continuous, 112dB peak
NOMINAL IMPEDANCE 16 ohms
DISPERSION (-6dB) 150° conical up to 7kHz
CROSSOVER 4kHz passive
ENCLOSURE Steel backcan
FINISH Bezel & grille – white UV resistant
Overpaintable
Backcan – zinc plated
PROTECTIVE GRILLE Perforated steel
CONNECTORS Rising clamp plug and socket
ACCESSORIES (included) 40W 70/100V line transformer
Tile rails C bracket Paint mask Cut-out template
VOLTAGE TAPS
100V – 40W, 20W, 10W
70V – 40W, 20W, 10W, 5W
DIMENSIONS (OD) 260mm x (D) 181mm
CUT-OUT DIAMETER 224mm
WEIGHT 3.5kg
