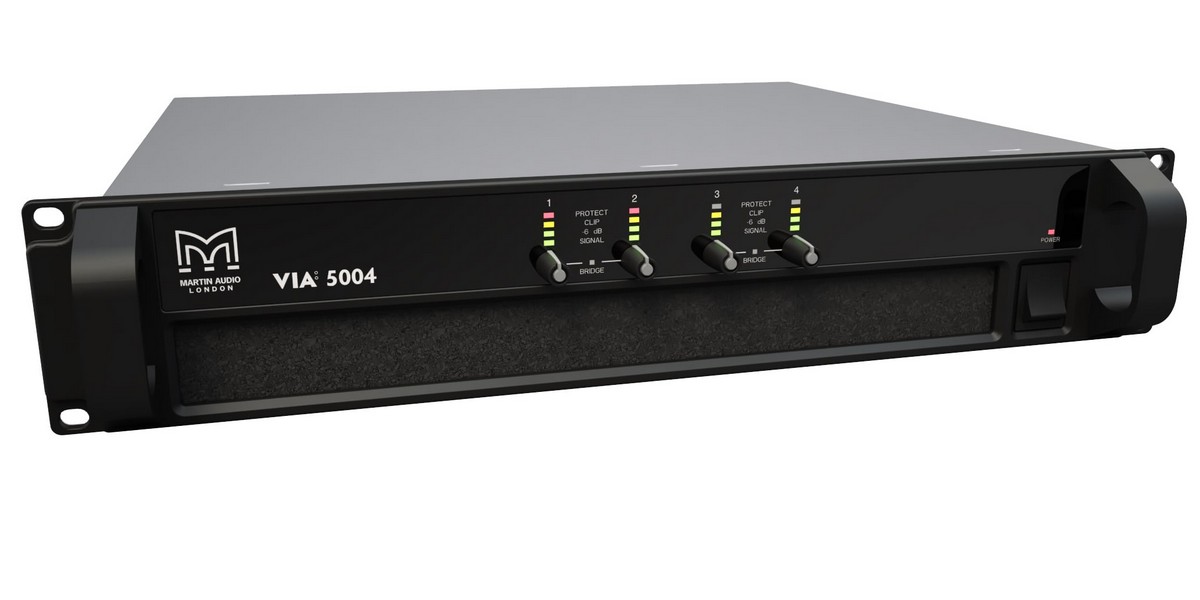

The VIA5004 is an advanced 4 channel power amplifier which combines high power density with superb audio performance in a lightweight, cost effective package. Delivering 4 x 1250 watts into 2 ohms, or 2 x 2500 watts into 4 ohms bridged, it is ideal for powering Blackline X, CDD and V. Series systems in small to medium scale installations and portable sound applications. It can also be configured for 3 channel operation, for perfect compatibility with TH Series 3 way systems. Its high efficiency design reduces the energy drawn from the mains supply and ensures the power reserves needed to deliver superb sound in demanding environments withreliability and ease. Comprehensive protection functions continuously monitor its performance to maintain safe operating conditions and full output capability in ambient temperatures up to 40°C. For a wide variety of installations and portable situations, the VIA5004 is ideally partnered with the Martin Audio DX0.5 system processor. Larger installations will benefit from use with the DX4.0 with its onboard network capability and proprietary VU-NET software control.
TYPE Four channel Class D amplifier
POWER OUTPUT 4 x 1250W into 2 ohms,4 x 800W into 4 ohms, 4 x 450W into 8 ohms, 2 x 2500W bridged into 4 ohms
COOLING Vari speed fans, front to back airflow
MAXIMUM AMBIENT TEMPERATURE 40°C
Audio Inputs/Outputs
ANALOGUE IN/LINK (4 CHANNELS) 4 x female, 4 x male Neutrik™ XLR
ANALOGUE INPUT IMPEDANCE 10KO balanced
MAXIMUM ANALOGUE INPUT LEVEL +20dBu
AMPLIFIER OUTPUTS 4 x Neutrik Speakon™ NL4
Audio Performance
OUTPUT NOISE -113dBA, referenced to max output (22kHz bandwidth)
FREQUENCY RESPONSE <10Hz - >20kHz +/- 0.25dB
TOTAL HARMONIC DISTORTION <0.05% typical @ 1kHz, -3dB output (22kHz bandwidth)
SLEW RATE >80V per microsecond
DAMPING FACTOR 120 ref 8 ohms
Power Supplies
TYPE 2 x high current, high frequency switch mode
TOTAL SYSTEM EFFICIENCY >90% typical
MAINS CONNECTOR 1 x Neutrik Powercon™
PHYSICAL DIMENSIONS (W) 482 x (H) 2U/88mm x (D) 441mm incl handles and optional rear support
WEIGHT 10kg WEIGHT 10kg
