Coaxial passive 2 way
CROSSOVER FREQUENCY 2.3kHz
FREQUENCY RESPONSE - 73Hz - 20kHz ± 3dB, -10dB @57Hz with preset
DRIVERS
LF: 6", 1.75" Voice coil, Neodymium Motor with flux stabilising rings
HF: 0.7" exit, 1.4" Voice coil, Coaxial HT polymer dome compression driver
SENSITIVITY (4V 1M FREE-FIELD) 91dB
NOMINAL IMPEDANCE 16 Ohms
RATED POWER 150W AES, 600W peak
MAXIMUM SPL 113dB Cont, 119dB Peak (6dB)
DISPERSION (-6DB) 100° H, 80° V
CONNECTORS NLT4MPXX-BAG speakons (pair)
PIN CONNECTIONS (INPUT) 1+ / 1-
PIN CONNECTIONS (LINK) 1+/- and 2+/-
FITTINGS 4 x M10, 15 x M6 fixing points, 1 x 3/8” (mic stand) fixing point
DIMENSIONS (W) 321mm, (H) 220mm, (D) 197mm
WEIGHT 5.5kg
VOLUME 7L
Applications
• Fill and spot coverage
• Under balcony fill
• Distributed systems
• Immersive sound spaces
• Portable corporate AV events
• Discreet stage monitor

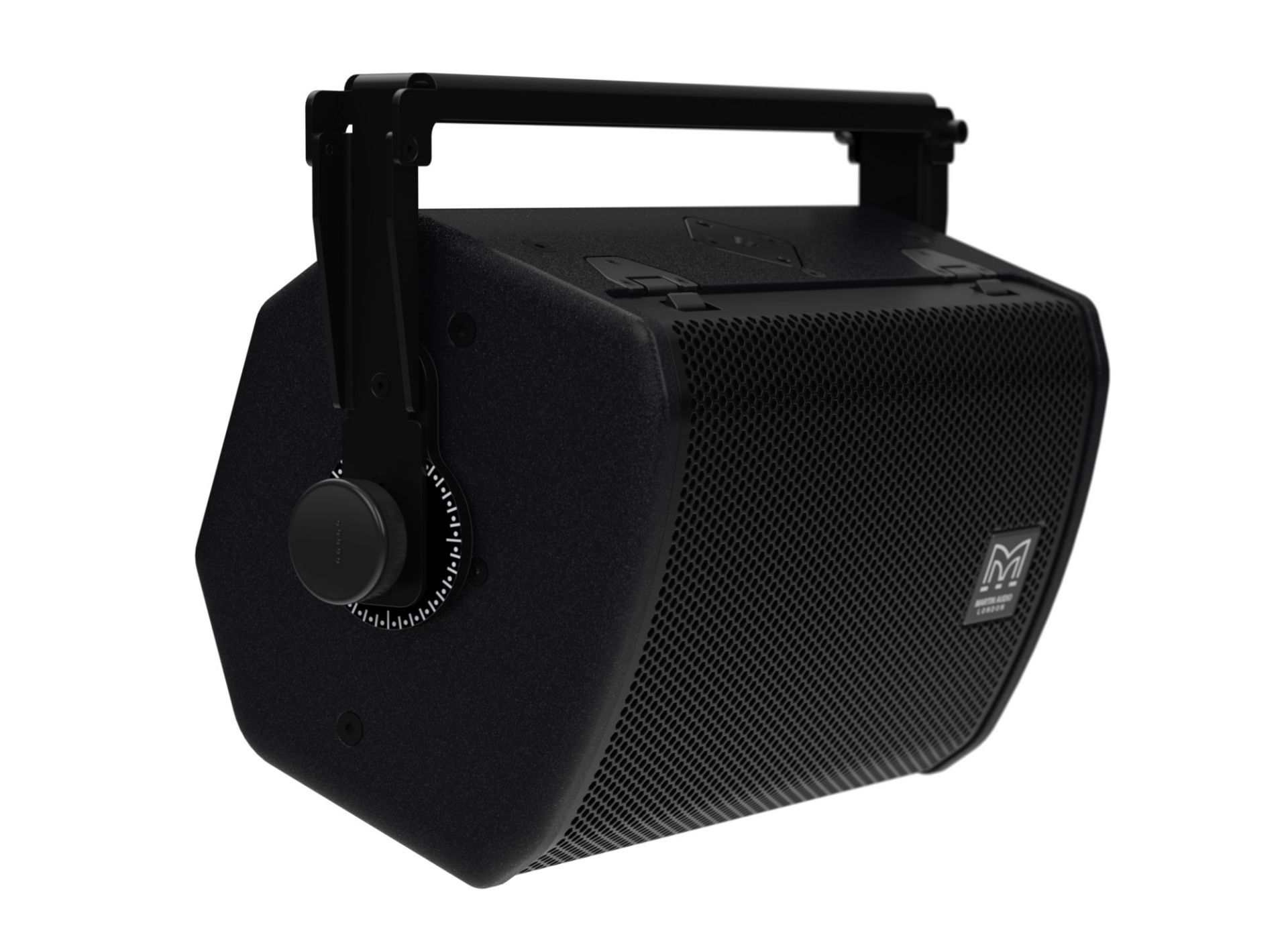

The FP6’s durable birch plywood enclosure is finished in hardwearing textured paint and incorporates multiple threaded inserts that facilitate a wide range of mounting options and accessories — including yoke, wall bracket, truss and mic stand mounting. A steel grille with a triple layer polyester backing presents a discreet professional appearance while resisting dust and water ingress to IP54 environmental rating
The FP6 can be used in either portrait or landscape orientation, including use as a discreet stage monitor, by rotating the driver within the enclosure. To make this quick and easy, the grille is secured by proprietary quick release latches, and the driver fixed to the baffle by means of captive thumbwheels. Loosening these by hand allows the driver to be quickly rotated through 90° and re tightened
