Features

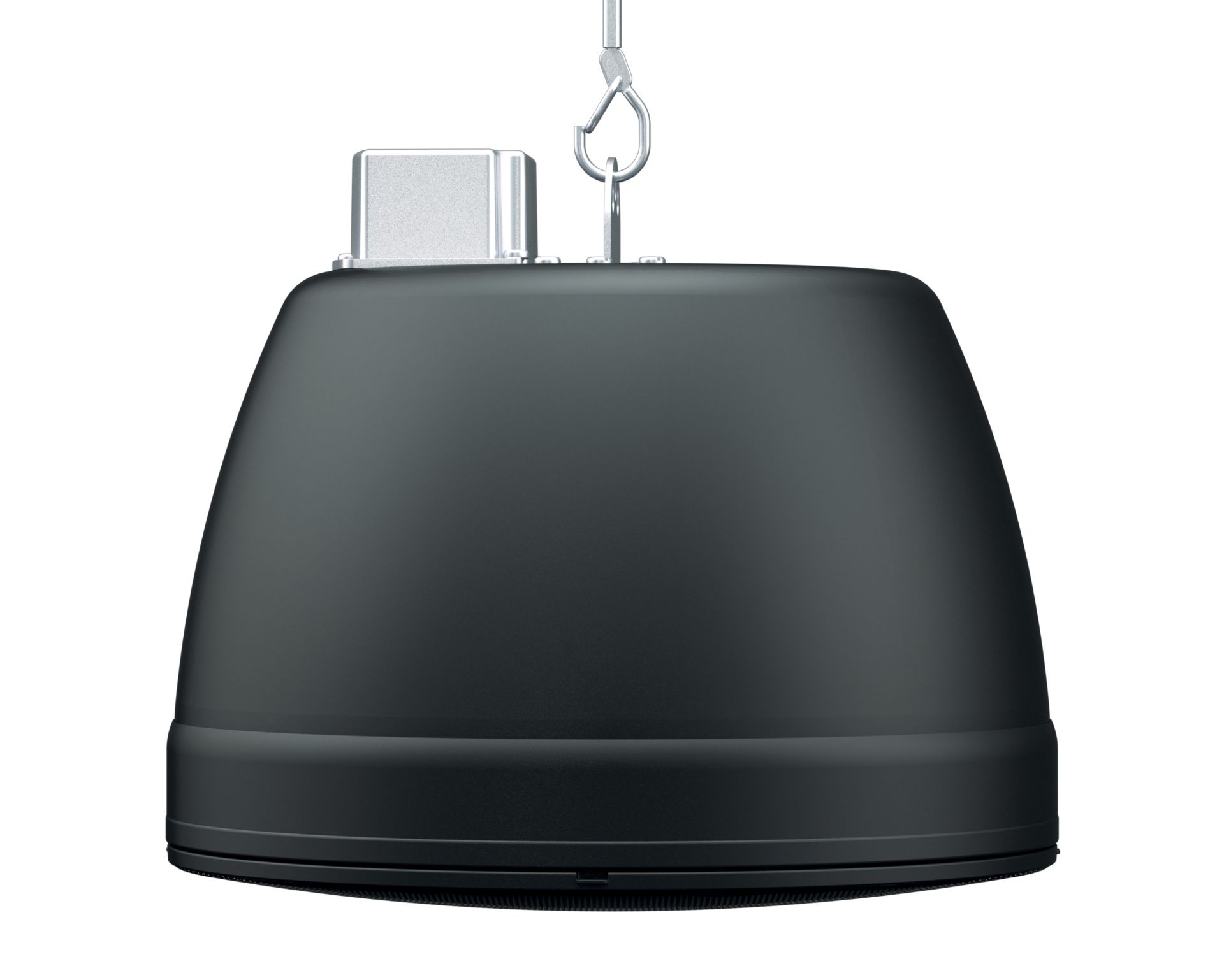

High performance two way pendant speaker
5.25” (100mm) LF driver and 0.75” (19mm) HF dome tweeter
Wide 150° conical coverage pattern reduces speaker count required for even coverage
70V/100V multi tap line transformer or 16 Ohm low impedance operation
Low and high frequency overload protection
Quick release, bezel less grille
UL94V-0 rated baffle and enclosure
5 year warranty
Specifications
TYPE Passive two way pendant speaker, ported bass reflex
FREQUENCY RESPONSE 98Hz-20kHz ± 3dB -10dB @ 56Hz
DRIVERS
LF: 5.25” /1” high temp voice coil, coated paper cone, rubber surround, ferrite motor, pressed steel chassis
HF: 0.75” silk dome, neodymium motor
RATED POWER 50W AES, 200W peak
RECOMMENDED AMPLIFIER VIA2004 (for low impedance operation)
SENSITIVITY 86dB / 1W(4V) / 1m (full space)
MAXIMUM SPL 109dB peak
NOMINAL IMPEDANCE 16 Ohm
DISPERSION (-6DB) 150° conical up to 7kHz
CROSSOVER 3kHz passive (LF and HF auto resetting fuses
TRANSFORMER TAPS
70V: 30w / 15w / 7.5w / 3.75w
100V: 30w / 15w / 7.5w
RECOMMENDED HIGH PASS FILTER 60Hz 24dB/oct
ENCLOSURE UL 94V-0 rated ABS baffle and enclosure
FINISH Black
GRILLE Perforated steel, powder coated, bayonet fitting
CONNECTORS Ceramic connector (in and link)
DIMENSIONS (OD) 246mm x (D) 238mm
WEIGHT 3.46kg WEIGHT 3.46kg WEIGHT 3.46kg (7.62lbs)
