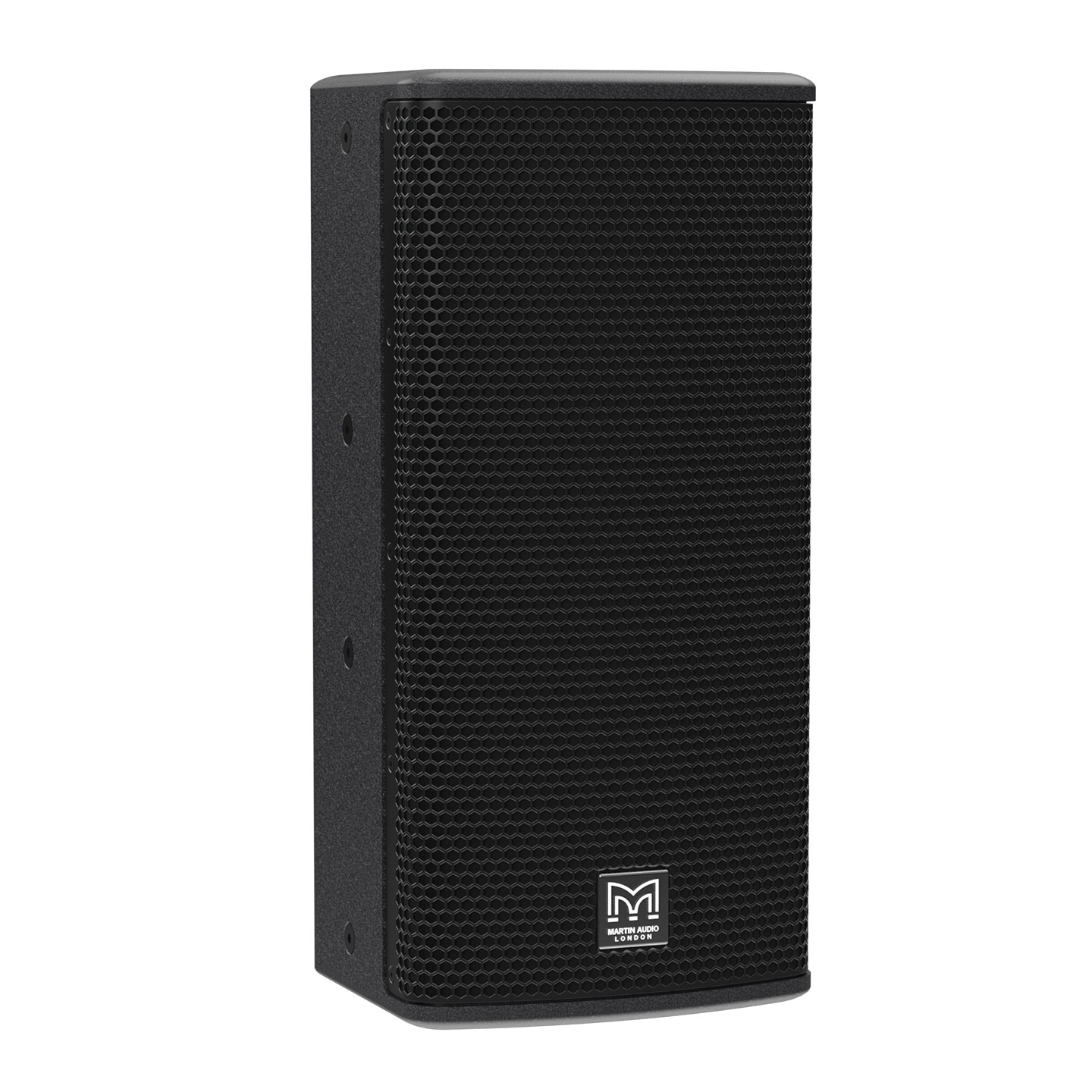

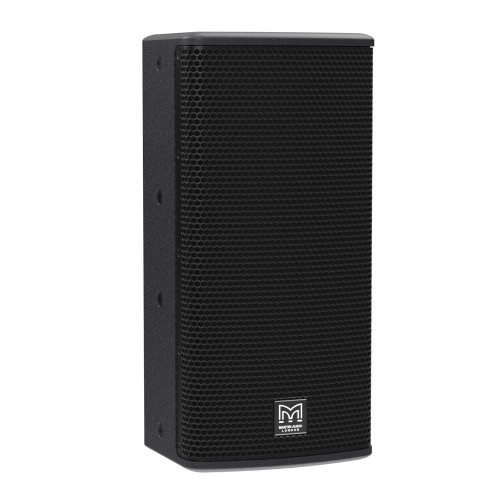

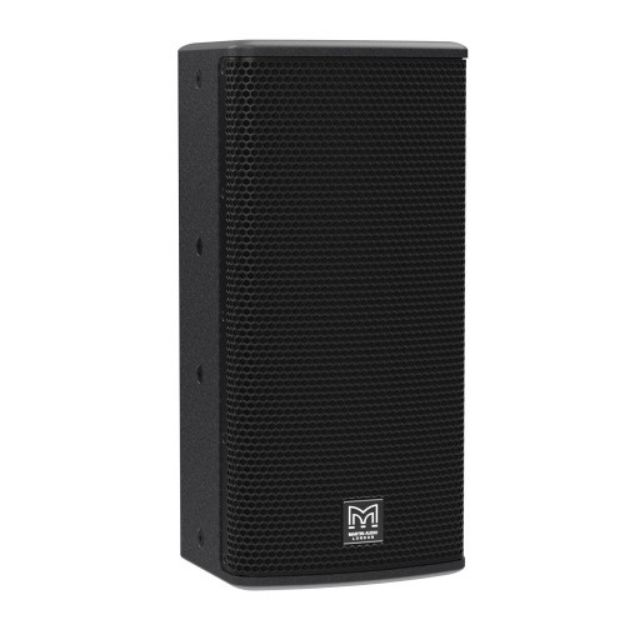

Blackline Q8 is an ultra compact, passive two way loudspeaker featuring an 8” (200mm) LF driver with a 2” (50mm) voice coil and a 1” (25mm) exit HF compression driver with a 1” (25mm) dome. It has a Differential Dispersion horn for wider and more consistent coverage, which can be easily rotated for horizontal or vertical orientation depending on deployment needs. Despite its small size, Q8 delivers impressive performance, achieving a peak SPL of 121dB (127dB with crest factor 4)
Features
Ultra Compact passive two way system
Symmetrical multi angle plywood enclosure
Peak SPL of 121dB (127dB with crest factor 4)
User rotatable Differential Dispersion horn
Dispersion: 90°–110° horizontal × 50° vertical
Vertical and horizontal orientation
Screw tight, cloth backed perforated steel grille
Integrated ergonomic handle made from recycled ABS
Pole mount cover maintains clean lines
8O nominal impedance
Two NL4 connectors
Flexible mounting options via M8 inserts
