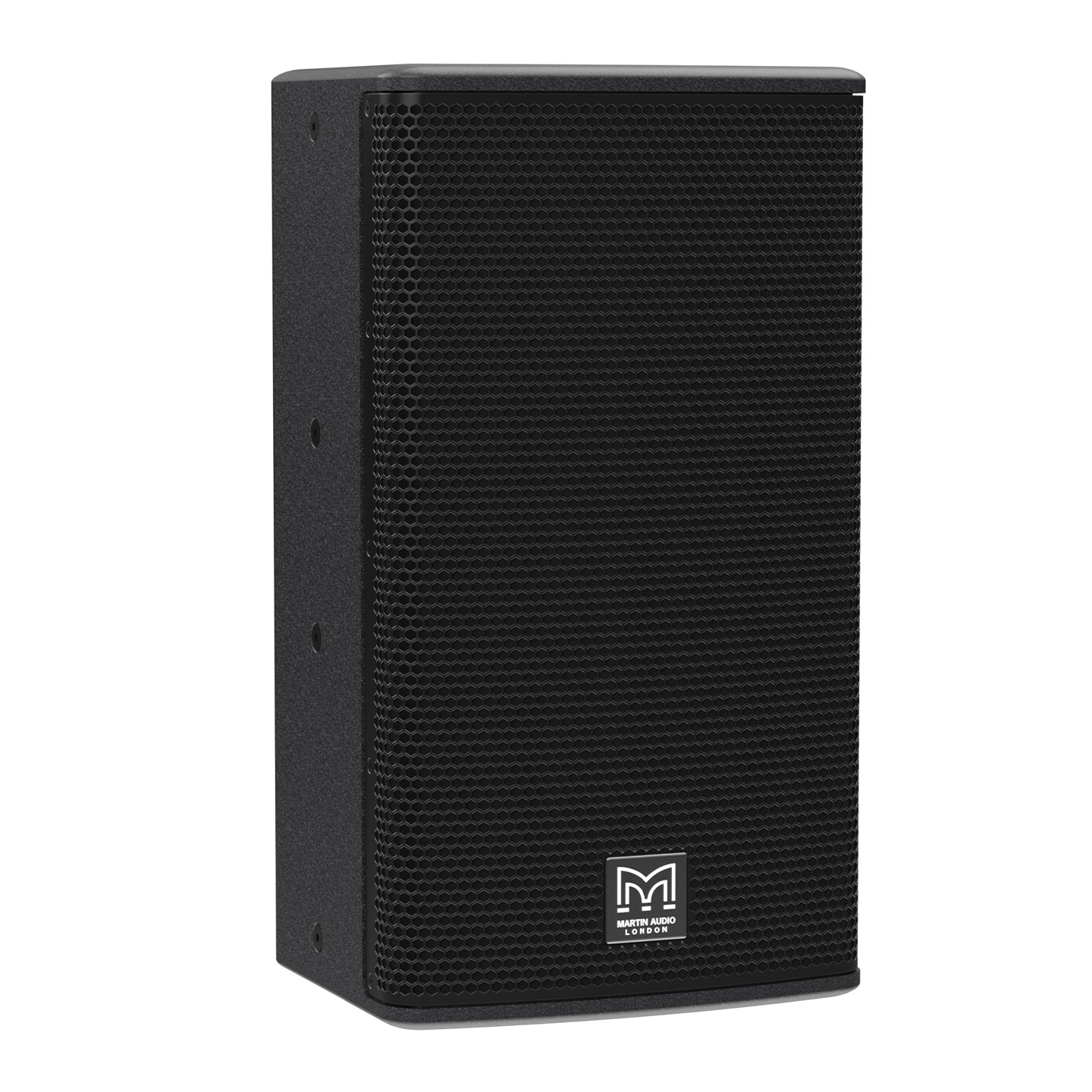

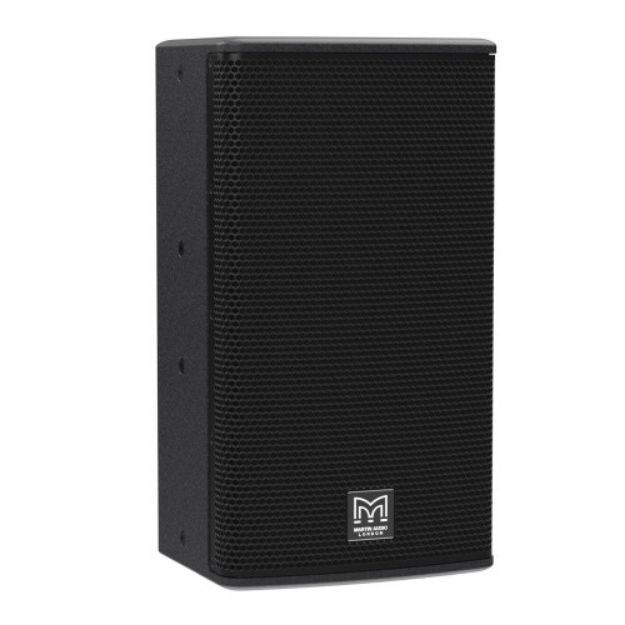

With a peak SPL of 125dB (131dB with crest factor 4), Blackline Q10 is a high performance yet compact passive two way loudspeaker system. It features a 10” (250mm) LF driver with a 2.5” (63mm) voice coil and a 1” (25mm) exit HF compression driver with a 1.4” (36mm) dome. The system incorporates a Differential Dispersion horn for wider and more consistent coverage, which can be easily rotated for horizontal or vertical orientation depending on deployment requirements
Features
Compact passive two way system
Symmetrical multi angle plywood enclosure
Peak SPL of 125dB (131dB with crest factor 4)
User rotatable Differential Dispersion horn
Dispersion: 90°–110° horizontal × 50° vertical
Vertical and horizontal orientation
Screw tight, cloth backed perforated steel grille
Integrated ergonomic handle made from recycled ABS
Pole mount cover maintains clean lines
8O nominal impedance
Two NL4 connectors
Flexible mounting options via M8 inserts
