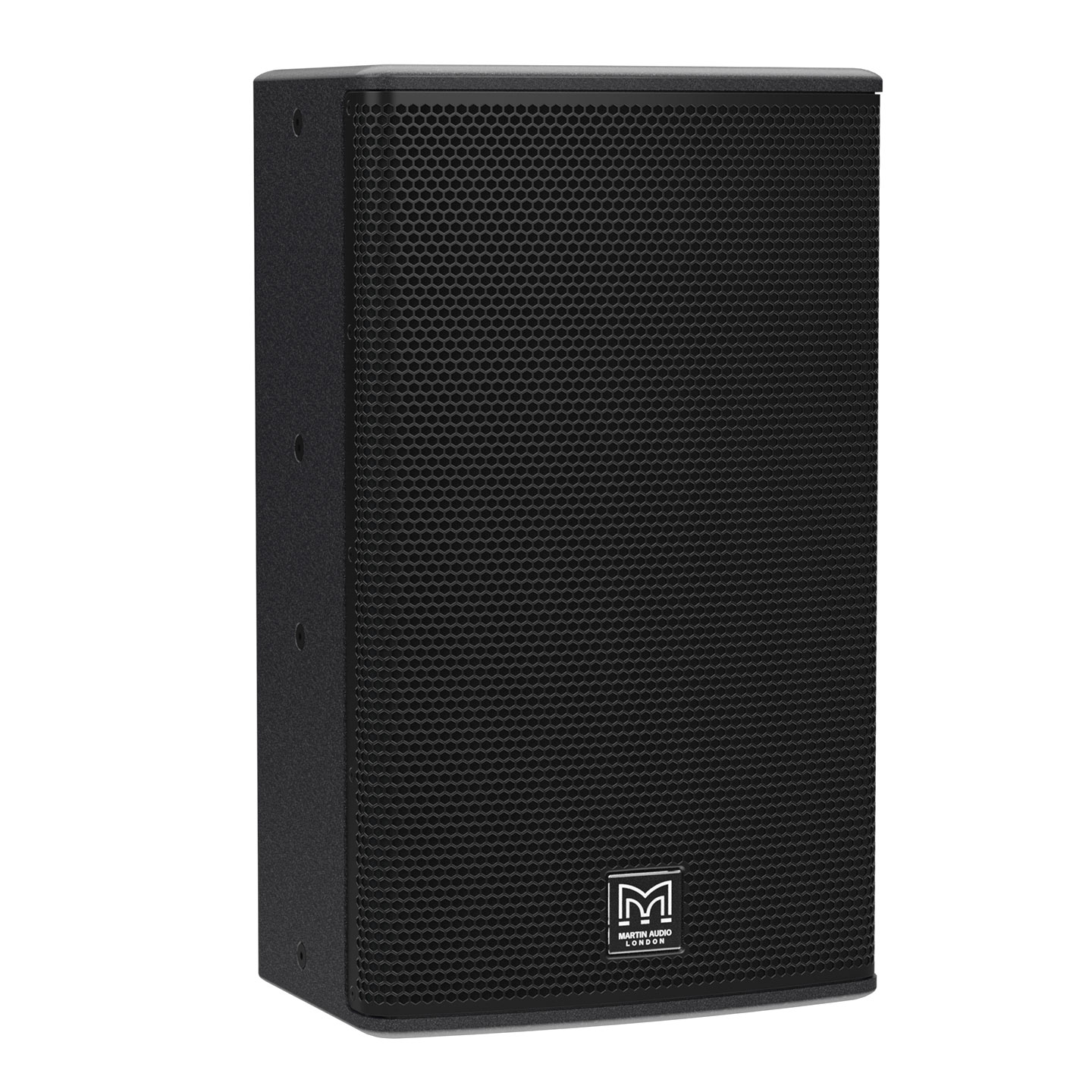

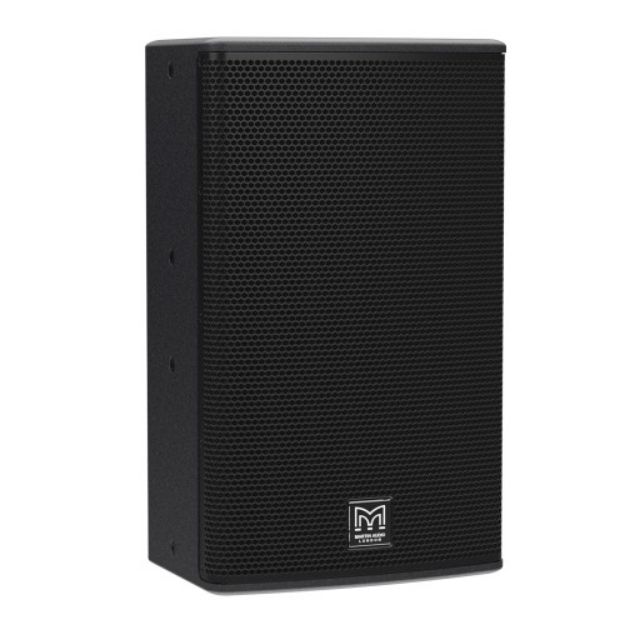

With a peak SPL of 127dB (133dB with crest factor 4), Blackline Q12 meets the demand for a compact loudspeaker capable of delivering high sound levels — whether used as a stand-alone system or in combination with a BlacklineQ subwoofer. It features a 12” (300mm) LF driver with a 2.5” (63mm) voice coil and a 1” (25mm) exit HF compression driver with a 1.7” (43mm) dome. It has a Differential Dispersion horn for wider and more consistent coverage, which can be easily rotated for horizontal or vertical orientation, depending on deployment requirements
Features
Compact passive two way system
Symmetrical multi angle plywood enclosure
Peak SPL of 127dB (133dB with crest factor 4)
User rotatable Differential Dispersion horn
Dispersion: 90°–110° horizontal × 50° vertical
Vertical and horizontal orientation
Screw tight, cloth backed perforated steel grille
Integrated ergonomic handle made from recycled ABS
Pole mount cover maintains clean lines
8O nominal impedance
Two NL4 connectors
Flexible mounting options via M8 inserts
