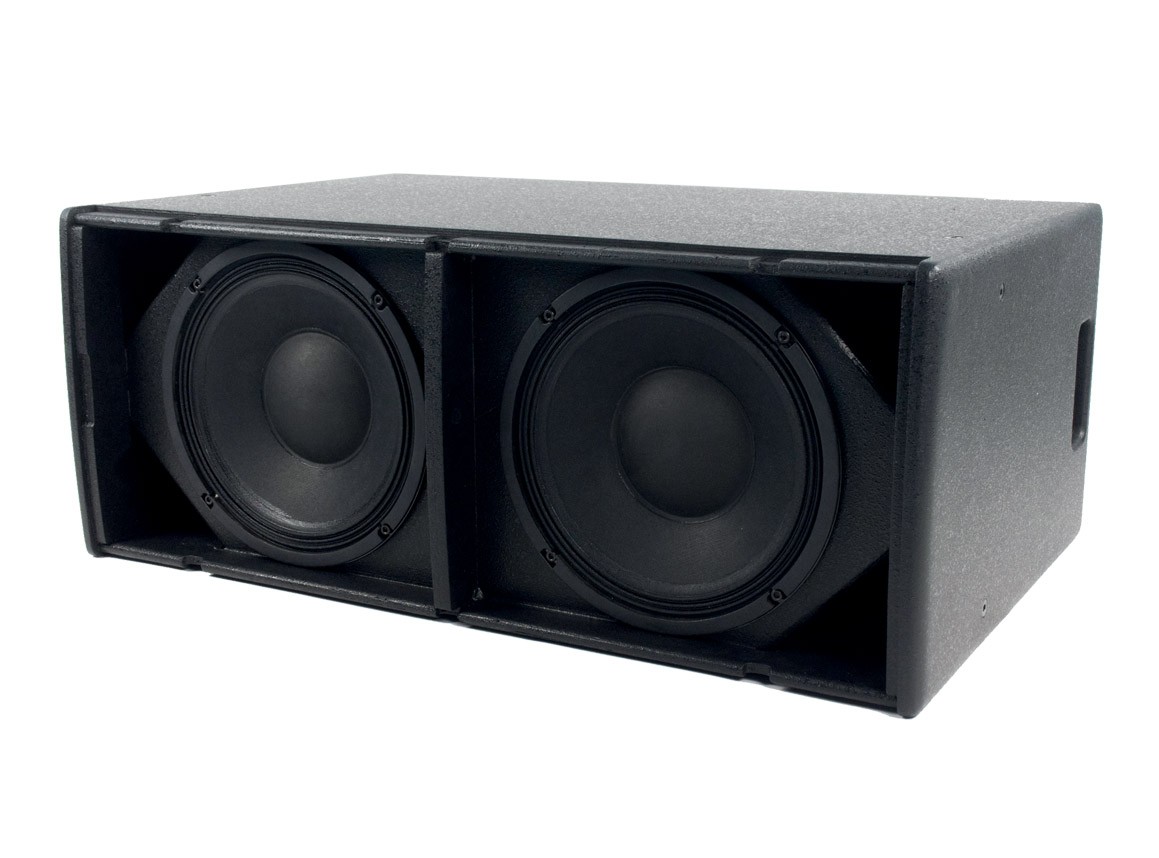

The X210 is a slimline dual driver subwoofer designed for situations that call for a visually unobtrusive enclosure. It can be used singley, stacked or flown via integral M10 inserts and its ultra compact size makes it ideal for applications where space is limited. It features dual 10” (250mm)/2” (50mm) voice coil drivers and generously sized low frequency ports for reduced air noise.
The X210 enclosure is constructed from plywood and finished in black textured paint as standard, with white and RAL colour finishes available to special order. An impact resistant perforated steel grille protects the drivers, and the enclosure has twin ergonomic handles at the rear for easy handling. Rubber feet on the base resist movement and align with recesses in the top surface to assist stacking.
When used with BlacklineX Series full range systems, crossover and EQ functions can be performed by the DX0.5 system controller or by an MA Series amplifier with onboard DSP option.
Slimline, direct radiating subwoofer
FREQUENCY RESPONSE 50Hz-150Hz ± 3dB, -10dB @ 42Hz
DRIVER 2 x 10” (250mm)/2” (50mm) voice coil, long excursion, ferrite magnet
RATED POWER 500W AES, 2000W peak
RECOMMENDED AMPLIFIER MA2.8Q, MA2.0, MA5.0Q
SENSITIVITY 103dB
MAXIMUM SPL 127dB continuous, 133dB peak (half space)
NOMINAL IMPEDANCE 4 ohms
DISPERSION (-6dB) Omnidirectional
CROSSOVER 80-120Hz active
ENCLOSURE Birch/poplar ply
FINISH Black textured paint
GRILLE Black perforated steel
CONNECTORS 4 x NL4 type
PIN CONNECTIONS (INPUT) 1+/1-
PIN CONNECTIONS (LINK) 1+/- to 1+/-
FITTINGS 16 x M8 inserts, 2 x bar handles
DIMENSIONS (W) 720mm x (H) 295mm x (D) 465mm
WEIGHT 20kg
