Features

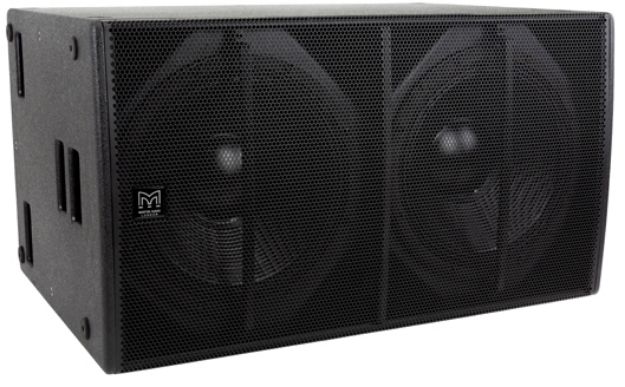

Dual driver, direct radiator subwoofer
2 x 18” (460mm) drivers with 4” (100mm) voice coils
Durable plywood enclosure
Large ports for reduced air noise
Powder coated, perforated steel grille
Integral ergonomic handles
35mm pole mount socket
Feet for vertical or horizonal operation
Rebate recesses for stable horizontal stacking
M10 flying inserts
Specification
TYPE Dual driver, direct radiating subwoofer
FREQUENCY RESPONSE (5) 42Hz-200Hz ± 3dB, -10dB @ 33Hz
DRIVER 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet
RATED POWER 1600W AES, 6400W peak
SENSITIVITY 106dB
MAXIMUM SPL 141dB peak (half space)
NOMINAL IMPEDANCE 4O
DISPERSION (-6DB) Omnidirectional
CROSSOVER 80-120Hz active
ENCLOSURE Birch/poplar ply
FINISH Black textured paint
PROTECTIVE GRILLE Black perforated steel
CONNECTORS 2 x NL4 type
PIN CONNECTIONS (INPUT) 1+ 1- Link Through 2+ 2-
PIN CONNECTIONS (LINK) 1+ 1- Link Through 2+ 2-
FITTINGS 12 x M10 inserts, pole-mount socket
DIMENSIONS
(W) 1049mm x (H) 587mm x (D) 727mm
WEIGHT 88kg WEIGHT 88kg (194lbs)
