Features

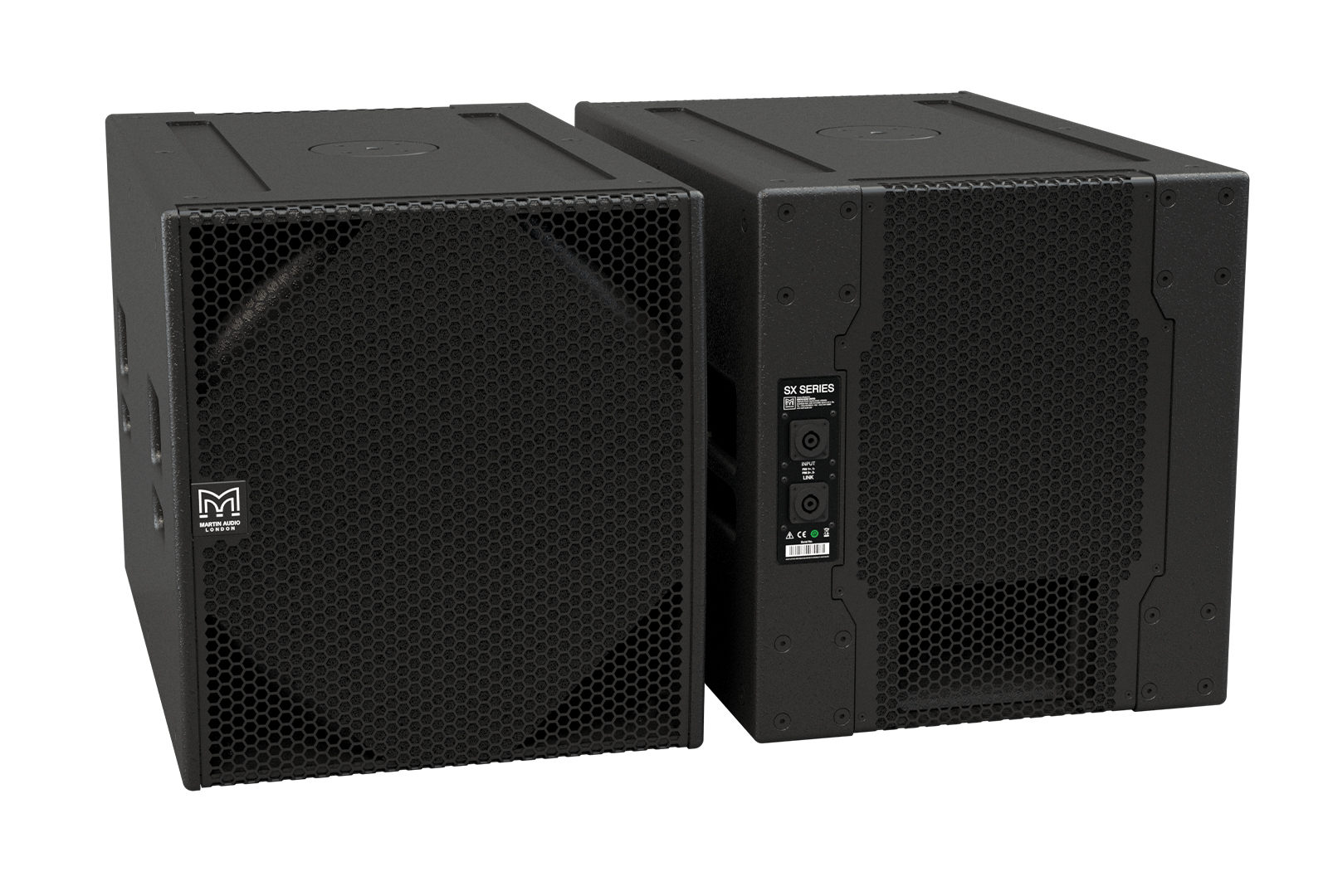

Compact, cardioid subwoofer
Front facing 15” (380mm)/4” (100mm) voice coil driver
Rear facing 12” (300mm)/4” (100mm) voice coil driver
Cardioid dispersion pattern
28dB rear rejection at 75Hz
High output capability
Tour grade plywood enclosure
Specification
TYPE Compact, cardioid subwoofer
FREQUENCY RESPONSE 44Hz – 150Hz ±3dB, -10dB @ 36Hz
DRIVERS
15” (380mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
12” (300mm)/4” (100mm) voice coil, long excursion, neodymium magnet, waterproof cone
RATED POWER
15”: 1000W AES, 4000W peak
12”: 800W AES, 3200W peak
SENSITIVITY 101dB
MAXIMUM SPL 137dB peak
NOMINAL IMPEDANCE
15”: 8 ohms
12”: 8 ohms
DISPERSION (-6DB) Cardioid
ENCLOSURE Multi laminate birch ply
FINISH Textured black paint
GRILLE Black HEX perforated steel
CONNECTORS 2 x NL4
PIN CONNECTIONS (INPUT) 15”: +1, -1; 12”: +2, -2
PINS CONNECTIONS (LINK) 15”: +1, -1; 12”: +2, -2
FITTINGS
Two skids on base, with mating channels on top
M20 top mounted thread plate for pole mounting
Two bar handles on each side
16 x M10 mounting points
16 x M8 inserts for optional castors
DIMENSIONS (INCL SKIDS)
(W) 500mm x (H) 550mm x (D) 811mm (939mm incl castors)
WEIGHT
53kg , 56kg incl castors WEIGHT
53kg (117lbs), 56kg (124 lbs) incl castors
