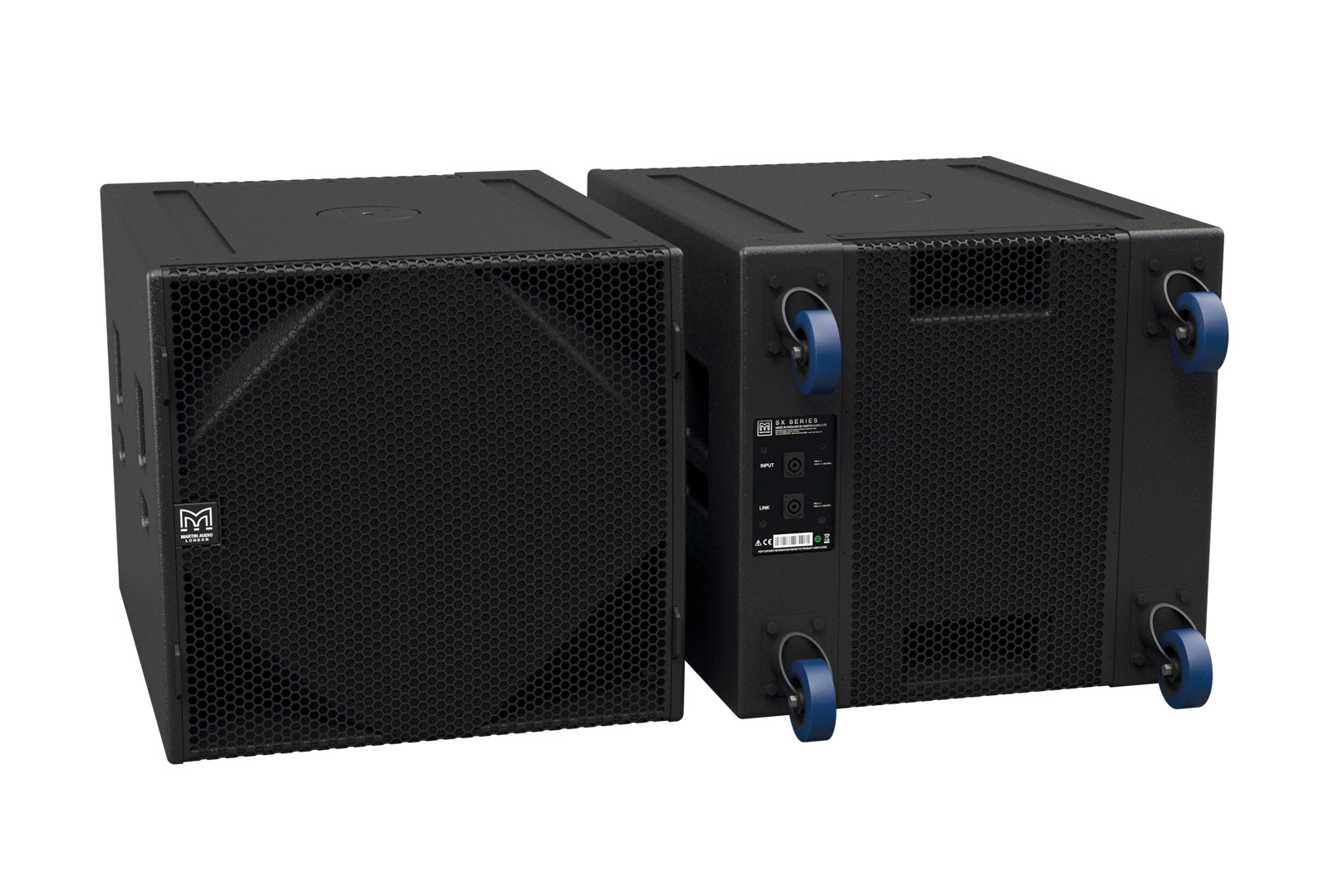

Designed for touring sound and installations, the SXC118 is a compact, high performance cardioid subwoofer. It features an 18” (460mm) forward facing driver and a 14” (356mm) rear facing driver, each driven independently by separate amplifier channels and DSP.
Features
Compact, cardioid subwoofer
Front facing 18” (460mm)/4” (100mm) voice coil driver
Rear facing 14” (356mm)/3.5” (88mm) voice coil driver
Cardioid dispersion pattern
28dB rear rejection at 75Hz
High output capability
Tour grade plywood enclosure with flying inserts
Compact, cardioid subwoofer
FREQUENCY RESPONSE 43Hz – 150Hz ±3dB, -10dB @ 34Hz
DRIVERS
18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
14” (356mm)/3.5” (88mm) voice coil, long excursion, neodymium magnet, waterproof cone
RATED POWER
18”: 1000W AES, 4000W peak
14”: 800W AES, 3200W peak
SENSITIVITY 104dB
MAXIMUM SPL 140dB peak
NOMINAL IMPEDANCE
18”: 8Ohm
14”: 8Ohm
DISPERSION (-6DB) Cardioid
ENCLOSURE Multi-laminate birch and poplar ply
FINISH Textured black paint
GRILLE Black HEX perforated steel
CONNECTORS 2 x NL4
PIN CONNECTIONS (INPUT) 18”: +1, -1; 14”: +2, -2
PINS CONNECTIONS (LINK) 18”: +1, -1; 14”: +2, -2
FITTINGS
Two skids on base, with mating channels on top
M20 top mounted thread plate for pole mounting
Two bar handles on each side
Four fittings for optional transit cover
16 x M10 Mounting Points
16 x M8 inserts for optional castors
Two bar handles on each side
DIMENSIONS (INCL SKIDS)
(W) 635mm x (H) 603mm x (D) 824mm (952mm incl castors)
WEIGHT
69kg
73kg incl castors 73kg (161lbs) incl castors
