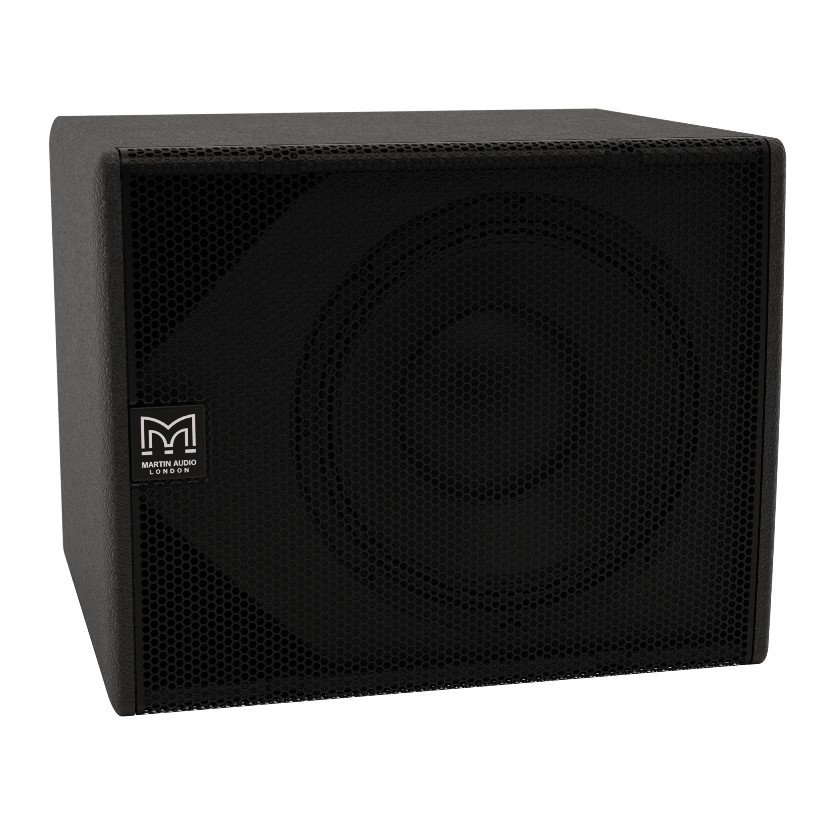

The SX112 is an ultra compact direct radiating sub bass system designed to extend the bandwidth and increase the headroom of full range loudspeaker models. It features a very efficient 12" (300mm) long throw bass driver with a high power 3" (75mm) voice coil and generously sized reflex ports for low noise, high power operation.
Features
Ultra-Compact, single driver, direct radiating subwoofer
12” (300mm) driver with 3” (75mm) voice coil
Water resistant cone
Large ports for reduced air noise
Perforated steel grille
Black or white standard colour options
Integrated flying points
Specifications
TYPE Compact, single driver, direct radiating subwoofer
FREQUENCY RESPONSE 48Hz-150Hz ± 3dB -10dB @ 35Hz
DRIVER 12” (300mm)/3” (75mm) voice coil, long excursion, ferrite magnet, waterproof cone
RATED POWER 400W AES, 1600W peak
SENSITIVITY 100dB
MAXIMUM SPL 126dB continuous, 132dB peak (half space)
NOMINAL IMPEDANCE 8O
DISPERSION (-6DB) Omnidirectional
CROSSOVER 80-120Hz active
ENCLOSURE 52 litre, Plywood
FINISH Black or white textured paint
GRILLE Black or white perforated steel
CONNECTORS 2 x NL4
PIN CONNECTIONS Left to right: Input+, Input -, Link -, Link+
FITTINGS 12 x M10 inserts
DIMENSIONS (W) 487mm x (H) 390mm x (D) 410mm
WEIGHT 21.5kg WEIGHT 21.5kg (47.3lbs)
