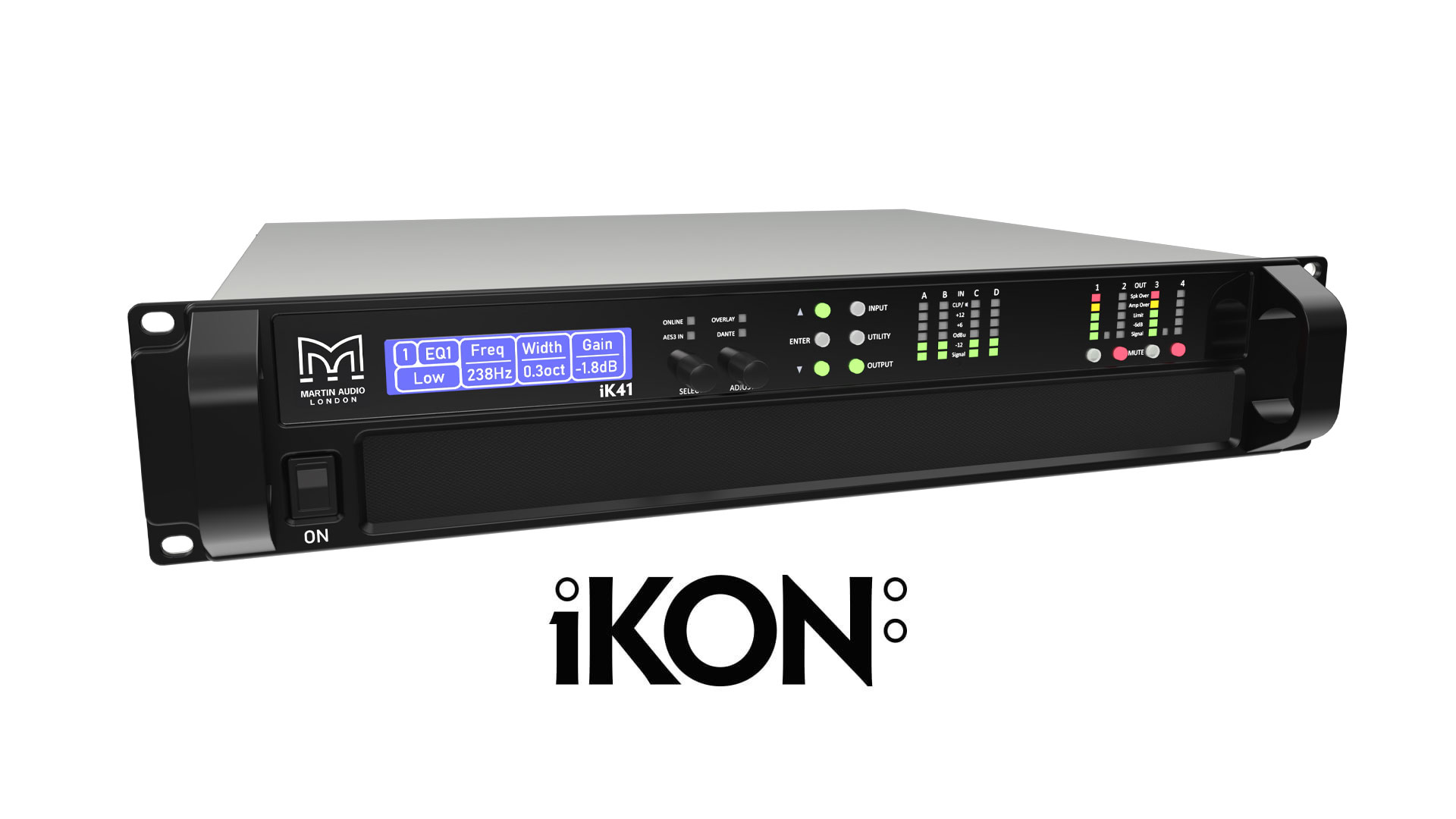

The iKON iK41 is an advanced 4 channel power amplifier which combines high power density with superb audio performance, state of the art DSP and network control. A dedicated controller amplifier for Martin Audio WPM line arrays, TORUS 8, and selected other systems, the iK41 can also provide multi channel amplification for select Martin Audio loudspeakers. iK41 can deliver a full 1500 watts per channel into 4O and its high efficiency reduces the energy drawn from the mains supply and ensures the power reserves needed to deliver superb sound under arduous live conditions. Ethernet is used for system remote control and monitoring via Martin Audio’s VU-NET software application, while a user friendly front panel interface allows full local control of all features. Dante digital audio network inputs are also provided for digital audio distribution and control. Powerful DSP is fully integrated into the iK41 to provide a multitude of features that ensure maximum performance of select loudspeaker systems. It also provides up to 1000 FIR filter taps @ 48kHz on each output channel, which is essential to implement DISPLAY’s wide bandwidth optimisation process in WPM line array systems. The iK41 employs comprehensive protection functions to maintain safe operating conditions of both the amplifier and the loudspeakers driven — including a sophisticated loudspeaker limiter suite which incorporates peak, RMS and excursion limiting, as well as multiband limiting for passive 2 way systems
Features
• Four channels of efficient Class D amplification
• High power density in 2U rack height
• Up to 6,000 Watts total power output, depending on load impedance
• High performance 96kHz DSP on all inputs and outputs (48kHz on outputs when implementing FIR filters)
• Switch mode power supply
• Global mains operation, 85V to 240V auto sensing
• Intuitive, user friendly, front panel interface
• Analogue, AES3 and Dante™ digital audio network inputs
• Ethernet network for system operation, control and monitoring via Martin Audio VU-NET™ software
• Comprehensive protection and monitoring functions
GENERAL
TYPE Four channel Class D amplifier
POWER OUTPUT (*)
1500W into 2 Ohm
1500W into 4 Ohm
750W into 8 Ohm
325W into 16 Ohm
3000W bridged per channel pair, 4 Ohm
3000W bridged per channel pair, 8 Ohm
CV LINE OUTPUT (*)
685W, 25V line
1500W, 70V line
1163W, 100V line
DIGITAL SIGNAL PROCESSING 96kHz/48kHz DSP on all inputs and outputs
COOLING Dual vari speed fans, front to back airflow
MAXIMUM AMBIENT TEMPERATURE 40°C (104°F)
AUDIO INPUTS/OUTPUTS
ANALOGUE IN/LINK (4 CHANNELS)
4 x female
4 x male Neutrik™ XLR
ANALOGUE INPUT IMPEDANCE 20kO balanced to ground
MAXIMUM ANALOGUE INPUT LEVEL +20dBu
AES3 IN/LINK (2 CHANNELS) 1 x female, 1 x male Neutrik™ XLR, balanced
DANTE™ (4 CHANNELS) 2 x shielded RJ45, primary and secondary
AMPLIFIER OUTPUTS 4 x Neutrik Speakon™ NL4
AUDIO PERFORMANCE
DYNAMIC RANGE
>113dBA, analogue input
>114dBA AES/Dante™ input
FREQUENCY RESPONSE 7Hz-30kHz (-2.5dB points, 4O load)
TOTAL HARMONIC DISTORTION <0.05% typical @ 1kHz, 4 Ohm load
SLEW RATE >60V per microsecond
DAMPING FACTOR >800 at amplifier output, ref 8 Ohm
CONTROL AND MONITORING NETWORK
PROTOCOL Ethernet
CONTROL APPLICATION Martin Audio VU-NET™
DIGITAL SIGNAL PROCESSING
SAMPLE RATE 96kHz (48kHz for FIR filter implementation)
PHYSICAL INPUTS
4 x analogue
1 x AES pair with link output
4 x Dante™ inputs routable to four DSP drive modules
DRIVE MODULE INPUT DSP Input signal routing, delay, gain, HPF, Phase, Mute
EQ: 2 x low shelf, 6 x PEQ/bandpass and FIR shelving filters
DRIVE MODULE OUTPUT DSP Source, delay, gain, Phase, Mute, crossover filters, limiters
EQ: low shelf, 8 x PEQ / band pass and shelving filters
POWER SUPPLY
TYPE High performance Series Resonant
AC INPUT OPERATING RANGE 85 – 240V ~ AC, 47 - 63Hz
MAINS INRUSH CURRENT 6A at 115V, 12A at 230V (max for <10ms)
MAINS CONNECTOR Neutrik 32A Powercon™
PHYSICAL DIMENSIONS (W) 482 x (H) 2U/88mm x (D) 441mm
(incl handles and optional rear support)
WEIGHT 12.5kg
