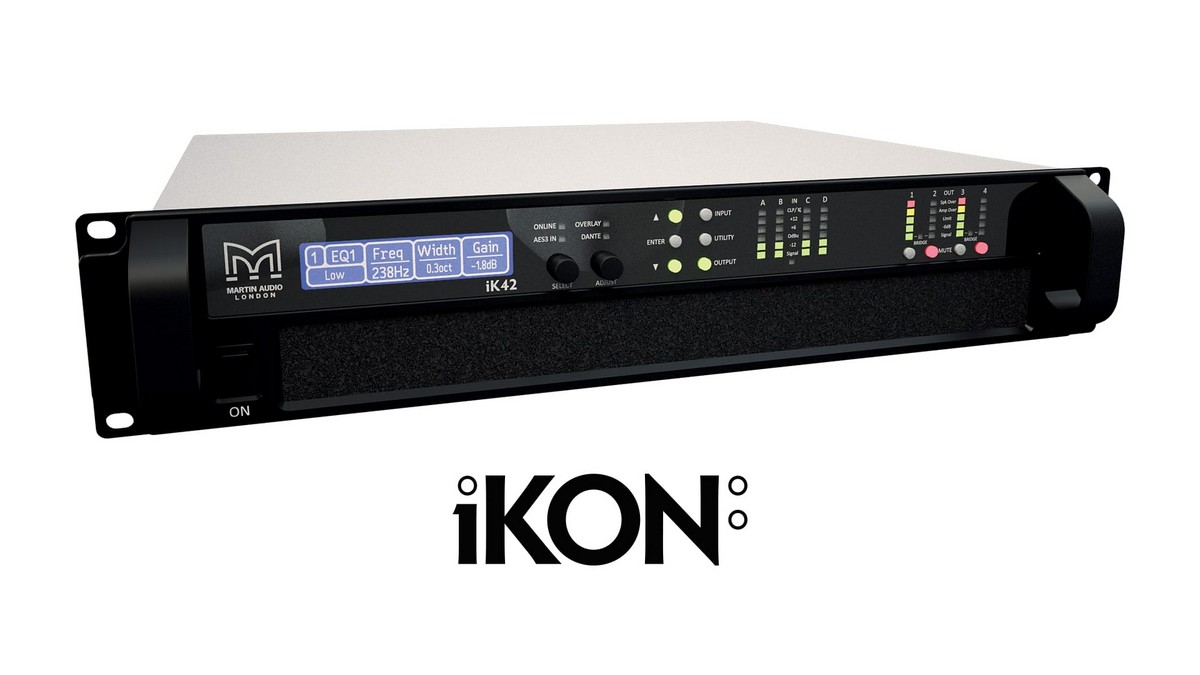

The iKON iK42 is an advanced 4 channel power amplifier which combines very high power density with superb audio performance, state of the art DSP and network control. A dedicated controller amplifier for Martin Audio Wavefront Precision line arrays and XE Series stage Monitors, the iK42 can also provide multi channel amplification across the Martin Audio loudspeaker range. The iK42 can deliver a full 5000 watts per channel into 2 ohms with all channels driven while remaining highly efficient. Its high efficiency reduces the energy drawn from the mains supply and ensures the power reserves needed to deliver superb sound under arduous live conditions. Ethernet is used for system remote control and monitoring via Martin Audio’s VU-NET software application, while a userfriendly front panel interface allows full local control of all features. Dante digital audio network inputs are also provided for digital audio distribution and control. 96kHz DSP is fully integrated into the iK42 to provide a multitude of features, including LIR linear phase crossover filters which have lower latency than FIR filters. The iK42 employs comprehensive protection functions to maintain safe operating conditions of both the amplifier and the loudspeakers driven including a sophisticated loudspeaker limiter suite which incorporates peak, RMS and excursion limiting, as well as multiband limiting for passive 2 way systems
Four channels of efficient Class D amplification
Very high power density in 2U rack height
Up to 20,000 Watts total power output, depending on load impedance
High performance 96kHz DSP on all inputs and outputs
Switch mode power supply
Global mains operation, 85V to 240V auto-sensing
Intuitive, user-friendly, front panel interface
Analogue, AES3 and Dante™ digital audio network inputs
Ethernet network for system operation, control and monitoring via Martin Audio VU-NET™ software
Comprehensive protection and monitoring functions
LIR linear phase crossovers for FIR-like performance with lower latency
Applications
Dedicated system amplifier for Martin Audio Wavefront Precision Series and XE Monitor Series
Versatile multi channel amplification for Martin Audio loudspeaker systems
General
Four channel Class D amplifier
POWER OUTPUT 5000W into 2 ohms
3000W into 4 ohms
1500W into 8 ohms
10000W bridged per channel pair, 4 ohms
CV LINE OUTPUT
5000W, 100V line
DIGITAL SIGNAL PROCESSING 96kHz/48kHz DSP on all inputs and outputs
COOLING Dual vari-speed fans, front-to-back airflow
MAXIMUM AMBIENT TEMPERATURE 40°C
Audio Inputs/Outputs
ANALOGUE IN/LINK (4 CHANNELS) 4 x female, 4 x male Neutrik™ XLR
ANALOGUE INPUT IMPEDANCE 20kO balanced to ground
MAXIMUM ANALOGUE INPUT LEVEL +20dBu
AES3 IN/LINK (2 CHANNELS) 1 x female, 1 x male Neutrik™ XLR, balanced
DANTE™ (4 CHANNELS) 2 x shielded RJ45, primary and secondary
AMPLIFIER OUTPUTS 4 x Neutrik Speakon™ NL4
Audio Performance
DYNAMIC RANGE >113dBA, analogue input >114dBA AES/Dante™ input
FREQUENCY RESPONSE 7Hz-30kHz (-2.5dB points, 4 ohm load)
TOTAL HARMONIC DISTORTION <0.05% typical @ 1kHz, 4 ohm load
SLEW RATE >60V per microsecond
DAMPING FACTOR >800 at amplifier output, ref 8 ohms
Control and Monitoring Network
PROTOCOL Ethernet
CONTROL APPLICATION Martin Audio VU-NET™
Digital Signal Processing
SAMPLE RATE 96kHz (48kHz for FIR filter implementation)
PHYSICAL INPUTS 4 x analogue, 2 x AES, 4 x Dante™ inputs routable to four DSP drive modules
DRIVE MODULE INPUT DSP Input signal routing, delay, gain, HPF, Phase, Mute
EQ: 2 x low shelf, 6 x PEQ/bandpass and FIR shelving filters
DRIVE MODULE OUTPUT DSP Source, delay, gain, Phase, Mute, crossover filters, limiters
EQ: low shelf, 8 x PEQ / band pass and shelving filters
Power Supply
TYPE High performance Series Resonant
AC INPUT OPERATING RANGE 85 – 240V ~ AC, 47 - 63Hz
MAINS INRUSH CURRENT 12A at 230V (max for <10ms)
MAINS CONNECTOR Neutrik 32A Powercon™
Physical
DIMENSIONS (W) 483 x (H) 2U/89mm x (D) 357mm
incl handles and optional rear support
WEIGHT 12.5kg
