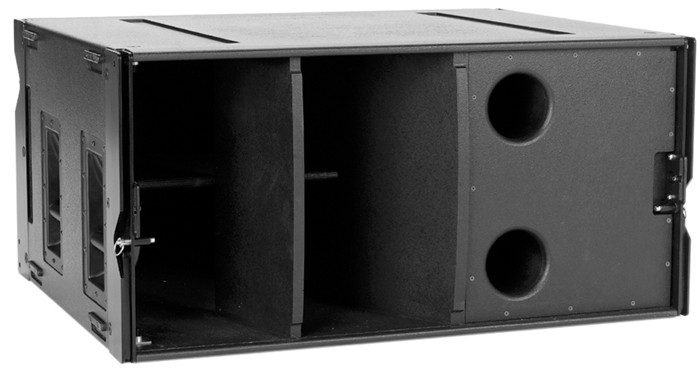

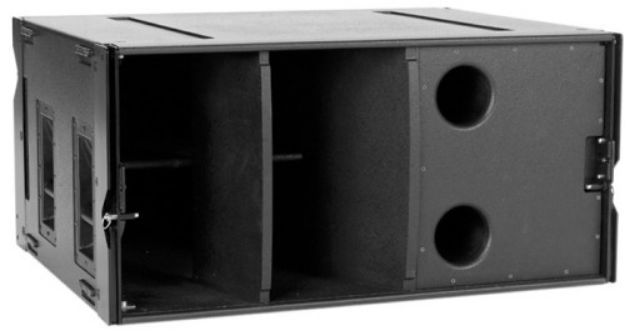

The Martin Audio WLX is a high performance subwoofer featuring our trademark horn loading expertise. A derivative of the WSX, the WLX is smaller, lighter, can be flown or ground stacked with W8 line array systems and possesses high output capability with low frequency extension.
A single ultra-long excursion 18" (460mm)/ 4" (100mm) coil driver is front loaded by a hyperbolic horn with low flare rate. The rear of the driver is reflex loaded to extend the LF output to below the natural cut-off point of the horn. This Hybrid® technique marries the very high efficiency of horn loading with the extended low frequency response of a reflex enclosure.
Features
Hybrid® folded horn/reflex loaded subwoofer system
Single 18" ultra-long excursion high power bass driver
Sensitivity 106dB 1W@1M
Maximum SPL 142dB peak
Frequency response 35Hz-150Hz ±3dB, -10dB @ 28Hz
8 ohm nominal impedance
Fast, integral rigging system with variable splay angles
Applications
Dedicated flown sub-bass for use above W8LC or W8LM
Flown sub-bass for use in adjacent column to W8L Longbow or W8LC
Ground stacked sub-bass to augment low frequency output of all Martin Audio Wavefront products
Fixed Installations
