features
? Hybrid® folded horn/reflex loaded subwoofer system
? Single 18" (460mm) ultra-long excursion high power bass driver
? Sensitivity 106dB 1W@1M; Maximum SPL 142dB
? Frequency response 35Hz-150Hz ±3dB, -10dB @ 28Hz
? 8 ohm nominal impedance
? Interlocking skids for secure stacking applications
? Dedicated sub-bass for use with W8LC or W8LM
? Ground stacked sub-bass to augment low frequency output of all Martin Audio Wavefront products
? Fixed Installations

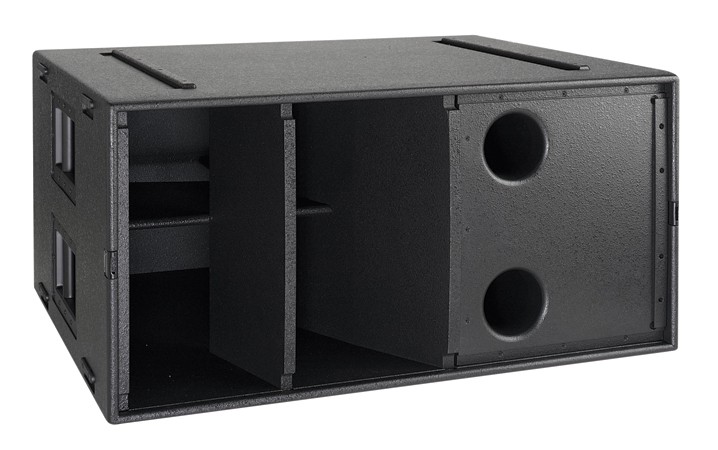

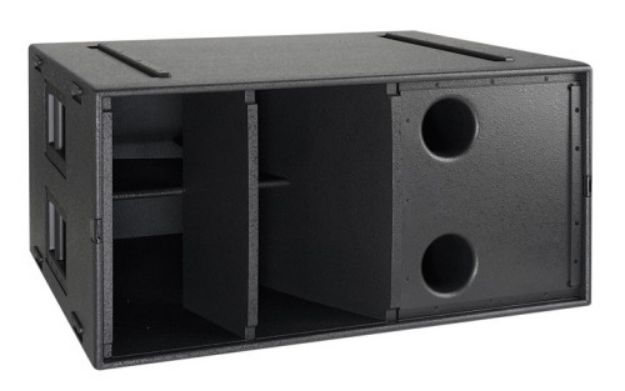

The Martin Audio WLXGS is a high performance subwoofer
featuring our trademark horn loading expertise. A derivative of
the WSX, the WLXGS is smaller and lighter, designed to be
ground stacked and possesses high output capability with low
frequency extension.
A single ultra-long excursion 18" (460mm)/4" (100mm) coil driver
is front loaded by a hyperbolic horn with low flare rate. The rear
of the driver is reflex loaded to extend the LF output to below
the natural cut-off point of the horn. This Hybrid® technique
marries the very high efficiency of horn loading with the
extended low frequency response of a reflex enclosure.
Technical specifications
TYPE Hybrid® horn and reflex loaded subwoofer
FREQUENCY RESPONSE (1) 35Hz-150Hz ± 3dB, -10dB @ 28Hz
DRIVERS 18” (460mm)/4” (100mm) voice coil, ultra-long excursion, water resistant cone
RATED POWER (2) 1000W AES, 4000W peak
RECOMMENDED AMPLIFIER MA12K
SENSITIVITY (3) 106dB (half space)
MAXIMUM SPL 136dB continuous, 142dB peak (half space) (calculated @ 1m)
NOMINAL IMPEDANCE 8 ohms
CROSSOVER 70Hz-150Hz active via DX1.5 or DX2 controller
ENCLOSURE Rectangular, multi-laminate birch ply
FINISH Textured black paint
PROTECTIVE GRILLE Black perforated steel
CONNECTORS 2 x Neutrik NL8
FITTINGS Interlocking skids on sides and top & bottom 2 generously sized bar handles 4 x 4” (100mm) castors
DIMENSIONS (inc. wheels) (W) 1002mm x (H) 490mm x (D) 800mm (931mm) (W) 39.45ins x (H) 19.3ins x (D) 31.5ins (36.7ins)
WEIGHT 73.5kg (161.7lbs)
