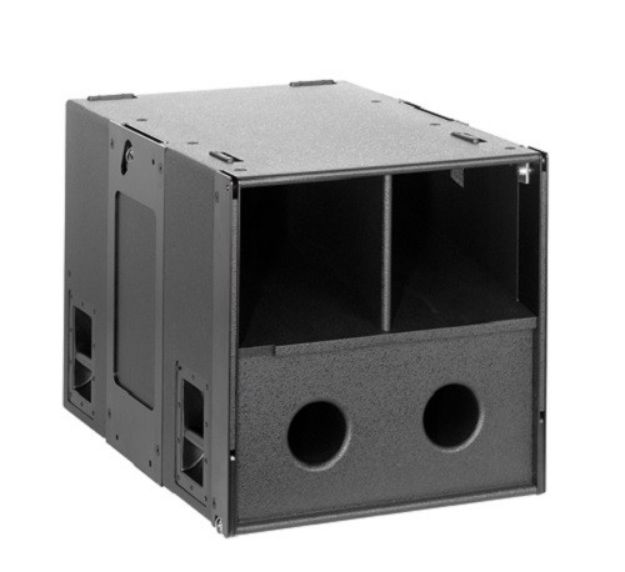

The Martin Audio WMX is a compact, high performance flown or ground stacked subwoofer featuring our trademark Hybrid® loading. Primarily intended for use with the W8LM/W8LMD, it shares the same cabinet width and is directly compatible with the W8LM and its flying hardware.
A single long-excursion 18" (460mm)/ 4" (100mm) coil driver is front loaded by a hyperbolic horn with an ultra-low flare rate. The rear of the driver is reflex loaded to extend the LF output to below the natural cut-off point of the horn. This Hybrid® technique marries the very high efficiency of horn loading with the extended low frequency response of a reflex enclosure.
Features
Very high output compact Hybrid® folded horn/reflex loaded subwoofer.
Single 18" (460mm) ultra-long excursion high power drive unit
Frequency response 35Hz-150Hz ± 3dB (-10dB @ 28Hz)
104dB 1W/1m
Fast integral rigging system
Compatable with W8LM and W8LMD line array elements
Can be ground stacked or flown
Socket for pole mounted W8LMD
Applications
Dedicated flown or groundstacked sub for use with W8LM and W8LMD
Ground stacked sub with any Martin Audio Wavefront products
Fixed installations
Live sound reinforcement
Corporate events
Theatre sound reinforcement
