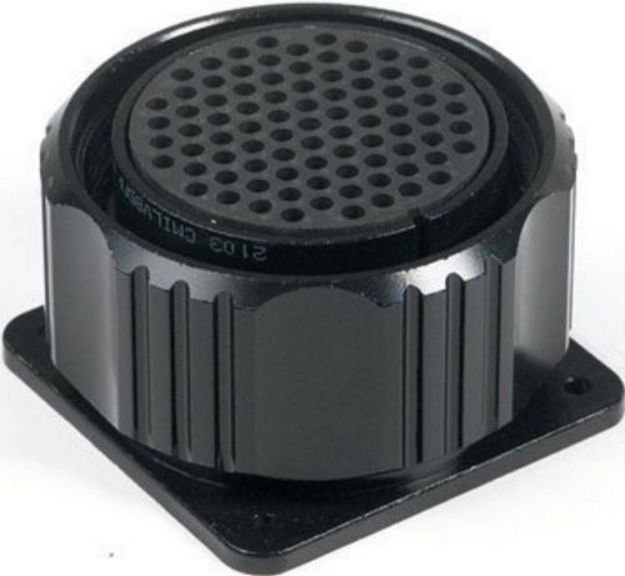

Milspec Connector 85 Pin Panel Mount FEMALE

PROEL “CMIL” series is made with UNI 5075 / UNI 6060 aluminium alloy worked with CNC machines, subjected to galvanic treatment and finished according to MIL standards. It features a variety of combinations ranging from 19 to 150 poles. Bayonet locking system with 3 ramps on the housing grants a perfect mating. Crimp and solder contacts, silver or gold plated. Contact connection low resistance grants line or microphone audio signals not to have attenuations or alterations. Connector covers are available to protect contacts against mechanical stress. Electrodeposition of black paint (F6) cataforesis in accordance with RoHS. Working voltage: 700Vdc / 500Vac class A / 250Vdc / 200Vac class I. Working temperature: - 55 / + 125 C°.
