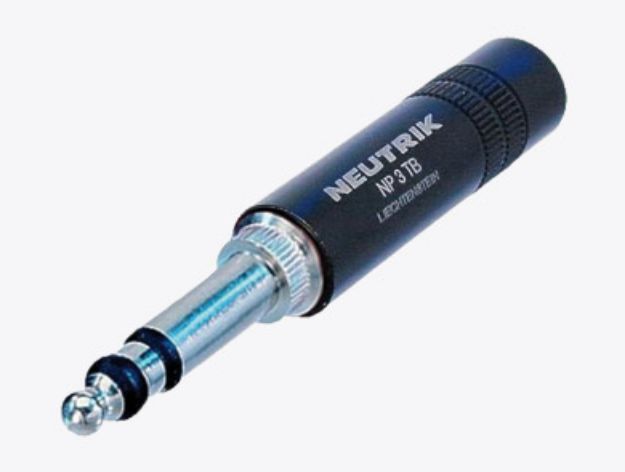

Neutrik BPO Stereo Jack Connector 6.35mm Cord Plug MALE

NP3TBB
1/4" 'B-Gauge' plug (BPO 316), black metal housing, nickel contacts

Professional phone plug according B-Gauge standard BPO316. Featuring similar construction as the standard Neutrik phone plugs with chuck type strain relief and slimline metal barrel. These plugs are not compatible with standard 1/4" jacks (acc. EIA RS453) and patch panels.

Title NP3TB-B
Connection Type Plug
Gender male
Electrical
Contact resistance depends on mating connector mO
Dielectric strength 1 kVdc
Insulation resistance > 2 GO (initial)
Rated current per contact depends on mating connector A
Rated voltage < 50 V
Mechanical
Cable O.D. 4 - 7 mm
Lifetime > 1000 mating cycles
Wiresize 1 mm²
Wiresize 18 AWG
Wiring Solder contacts
Material
Bushing Polyacetal (POM) + PU
Contact plating 2 µm Ni (Su)
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 6.6 30 % GR)
Shell Brass (CuZn39Pb3)
Shell plating Black
Strain relief Polyacetal (POM)
