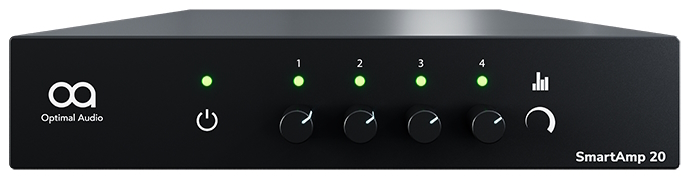

SmartAmp 20 is an amplifier with built in Digital Signal Processing (DSP) specifically tailored to optimise the performance of the Optimal Audio loudspeaker range.
This four channel power amplifier can drive either conventional low impedance or 70V – 100V loudspeaker loads. Internal DSP presets of Optimal Audio loudspeakers are selected by switches to the rear of the amplifier, which enable the appropriate EQ and overload protection settings.
The space efficient half width, 1U, 19” rack housing enables two units to be mounted side by side with a SmartAmp 10 or another SmartAmp 20, allowing up to 8 channels in a 1U space.
The SmartAmp 20 is capable of a maximum of 250W output shared between each pair of channels. This enables SmartAmp 20 to flexibly deliver power required for each channel within a pair, depending on the system requirement. For example, if one channel was to only be using 20W of power for some Up speakers, the other channel in the pair could deliver the remaining 230W of power for a more demanding application.
Features
Desktop or rack mounted
Signal processing presets for Optimal Audio loudspeakers
125 watts per channel into 4O-16O and 70V-100V line loudspeaker loads
Power sharing technology enables 250 watts from two pairs of channels
