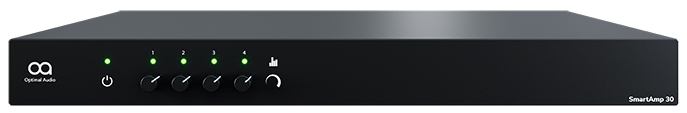

SmartAmp 30 is an amplifier with built in Digital Signal Processing (DSP) specifically tailored to optimise the performance of the Optimal Audio loudspeaker range
This four channel 1U, 19”, power amplifier can drive both conventional low impedance and 70V – 100V loudspeaker loads. Internal DSP presets of Optimal Audio loudspeakers are selected by switches to the rear of the amplifier, which enable the appropriate EQ and overload protection settings
The SmartAmp 30 can be configured to drive either low or high impedance loads at a maximum of 250W per channel, giving the options of a localised or evenly distributed speaker system
The SmartAmp 30 is ideally suited to power multiple Up 6 speakers and models from the Cuboid series
Features
Desktop or rack mounted
Signal processing presets for Optimal Audio loudspeakers
CLASS D power amplifier with DSP
4 X 250 watts per channel into 4OHM - 16OHM
4X 250 watts 70V-100V line Output
8.796V/µS at 70V peak, low impedence,
17.77V/µS at 100V peak, high impedence
